Seat Belt Tensioner




Component Connector End Views

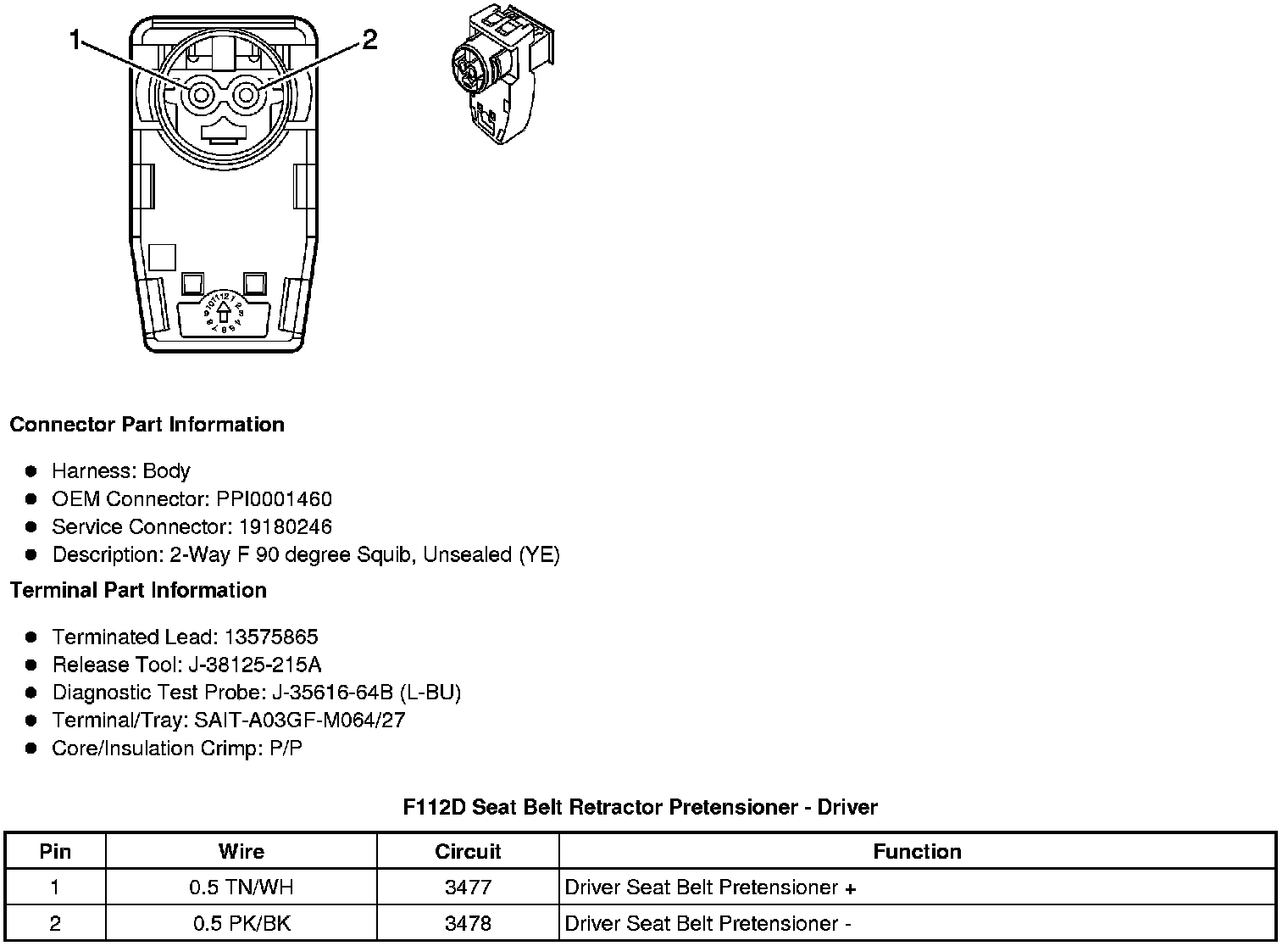

F112D Seat Belt Retractor Pretensioner - Driver

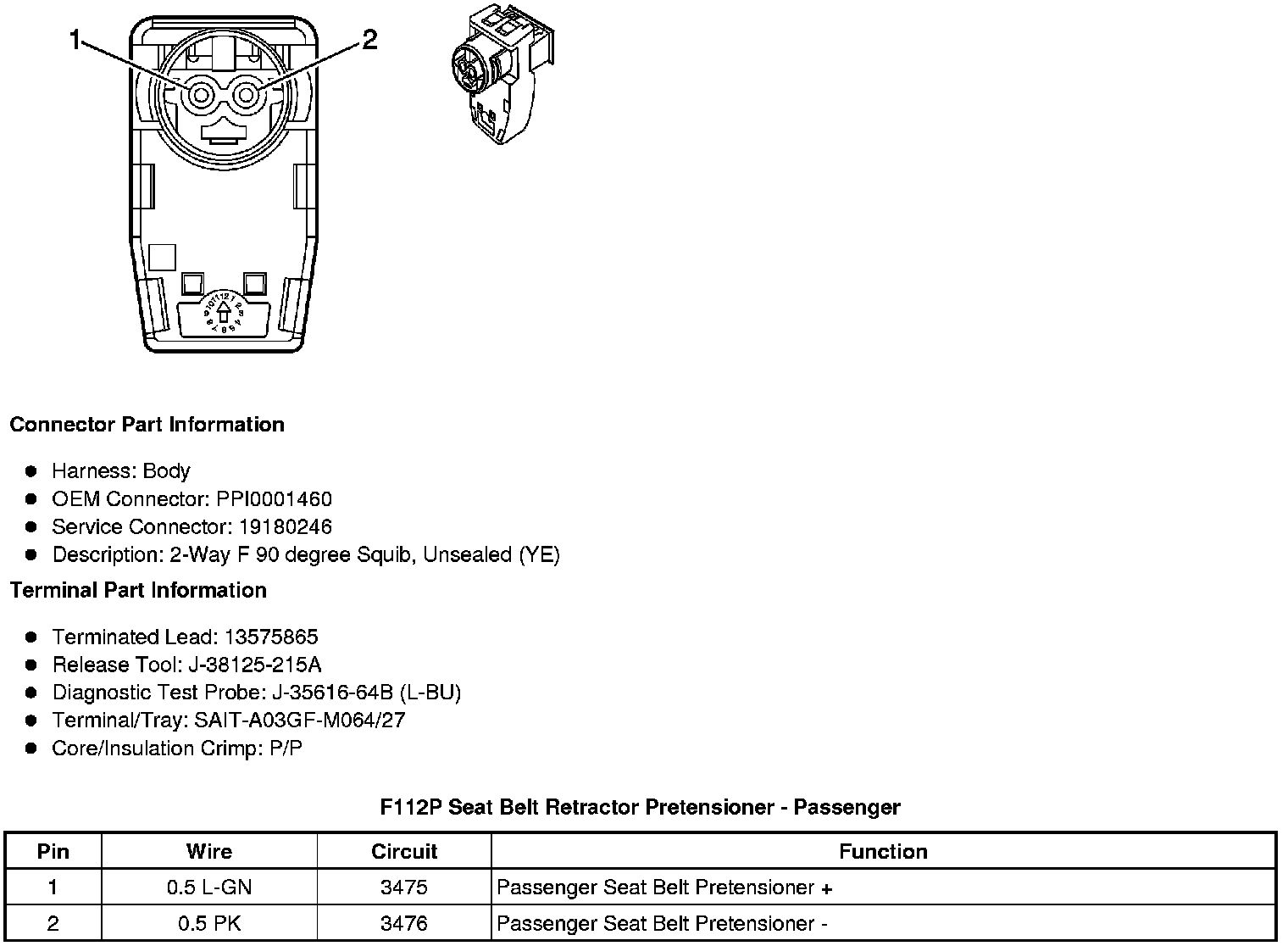

F112P Seat Belt Retractor Pretensioner - Passenger

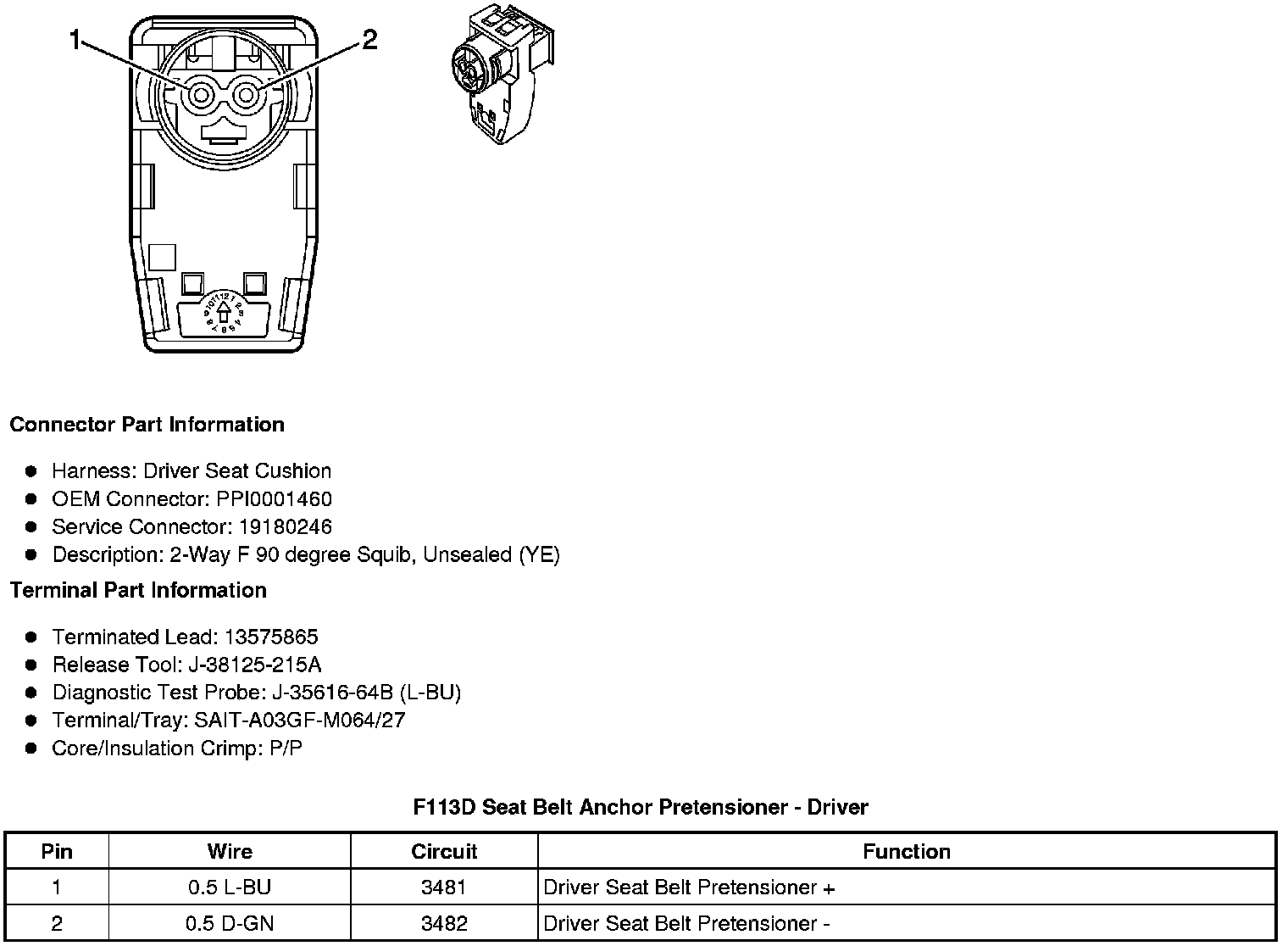

F113D Seat Belt Anchor Pretensioner - Driver

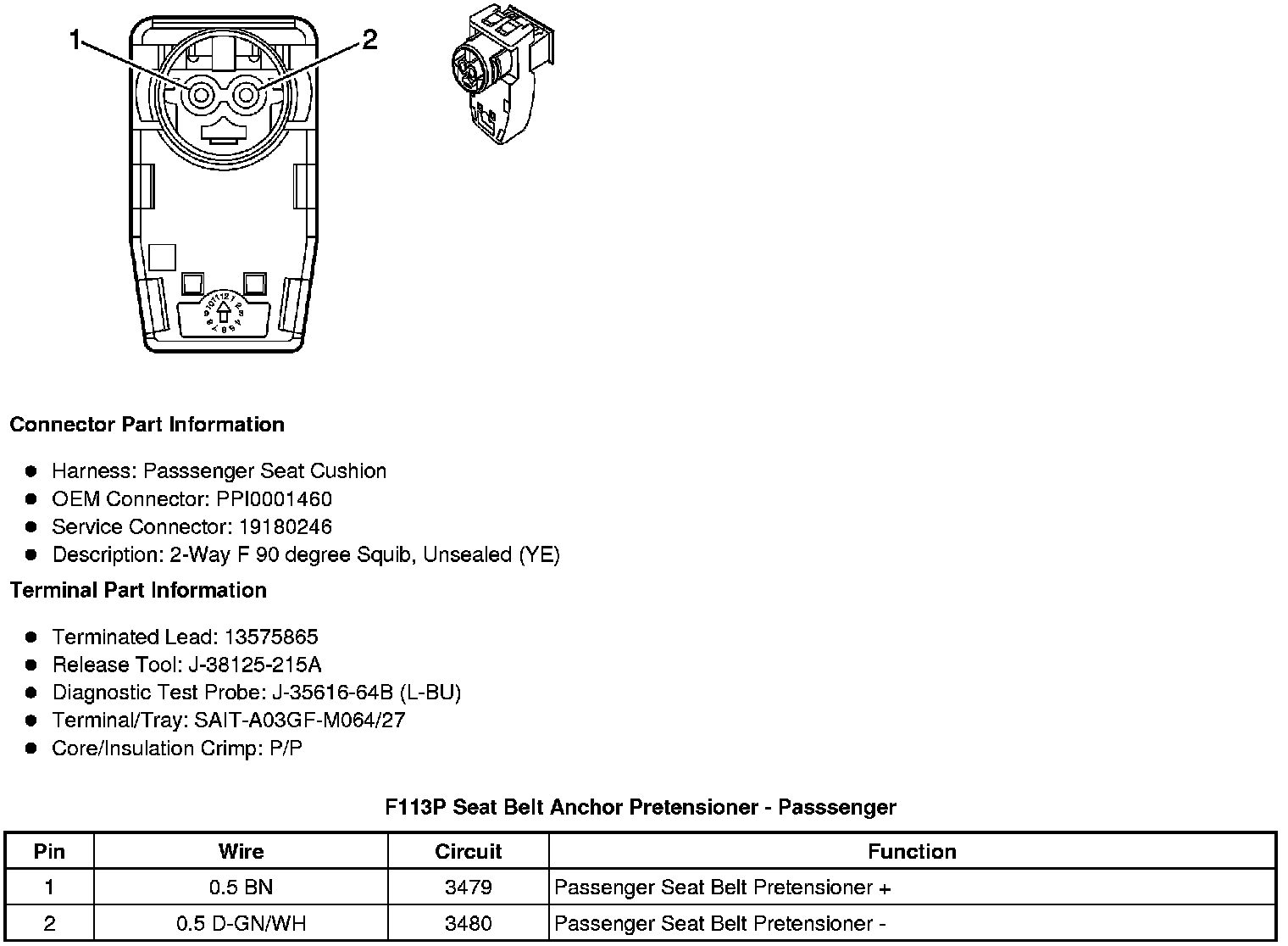

F113P Seat Belt Anchor Pretensioner - Passsenger
