Rear Door Window Motor

Component Connector End Views

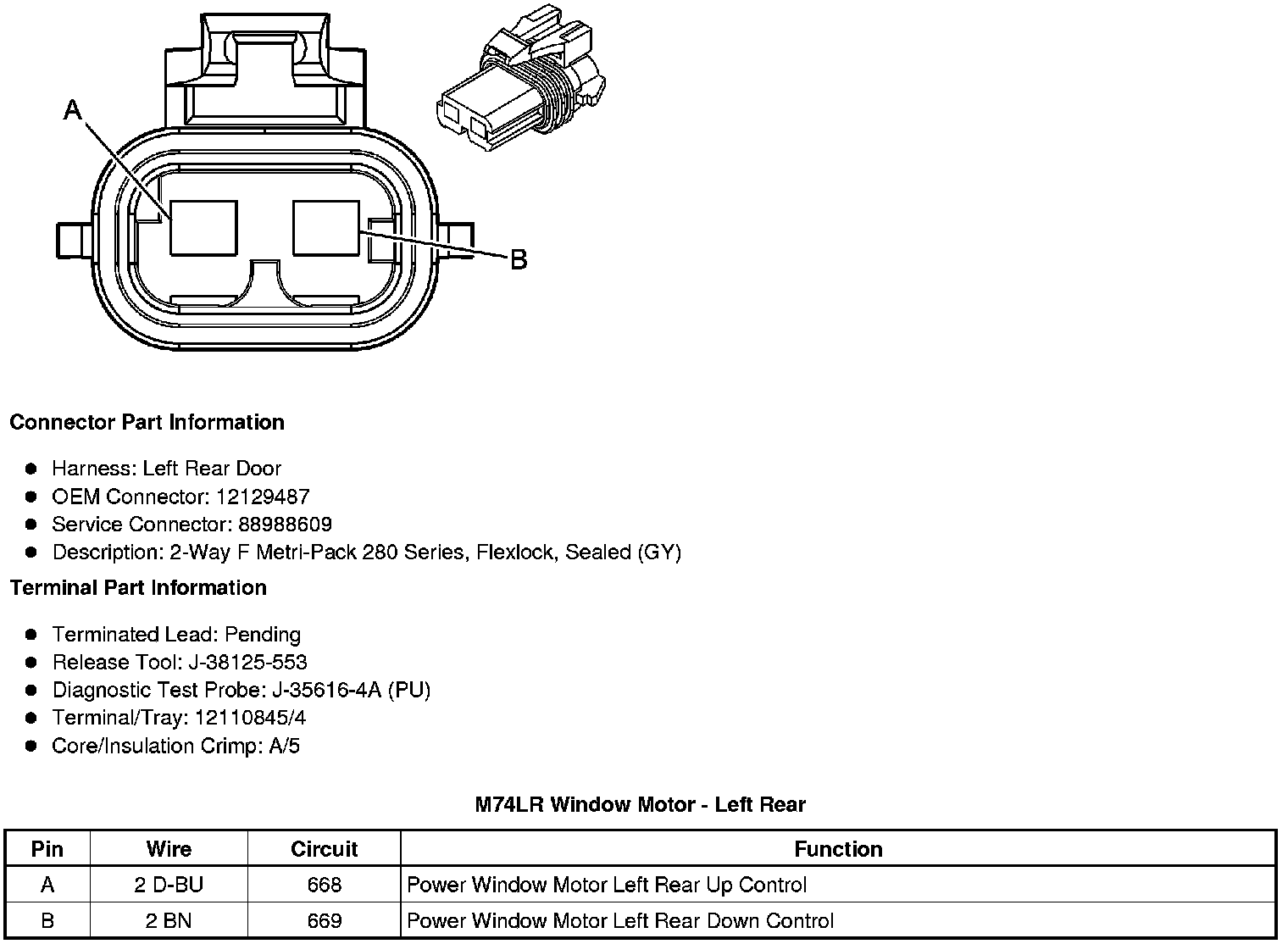

M74LR Window Motor - Left Rear

M74RR Window Motor - Right Rear
