Rear Door Latch




Component Connector End Views

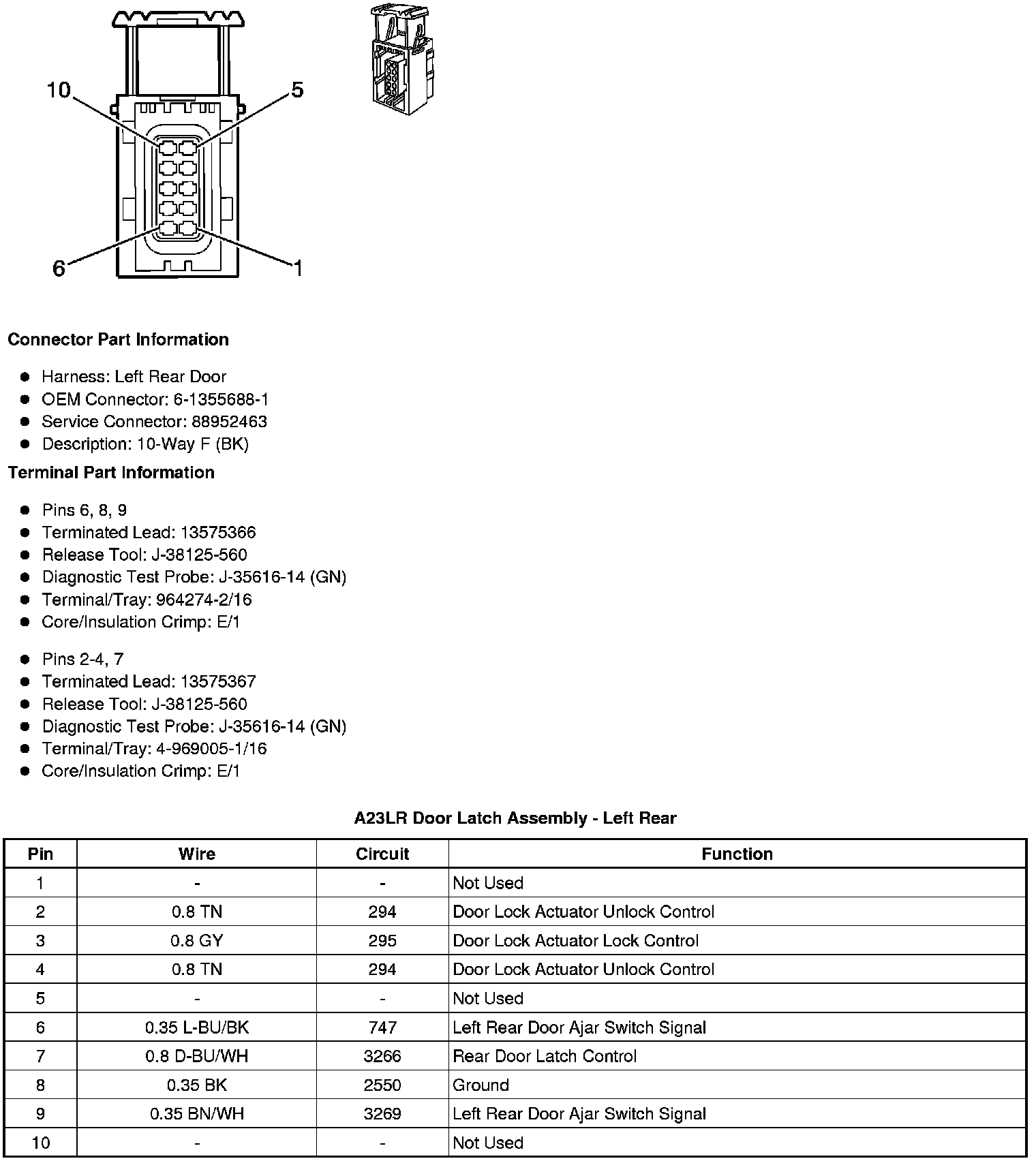

A23LR Door Latch Assembly - Left Rear

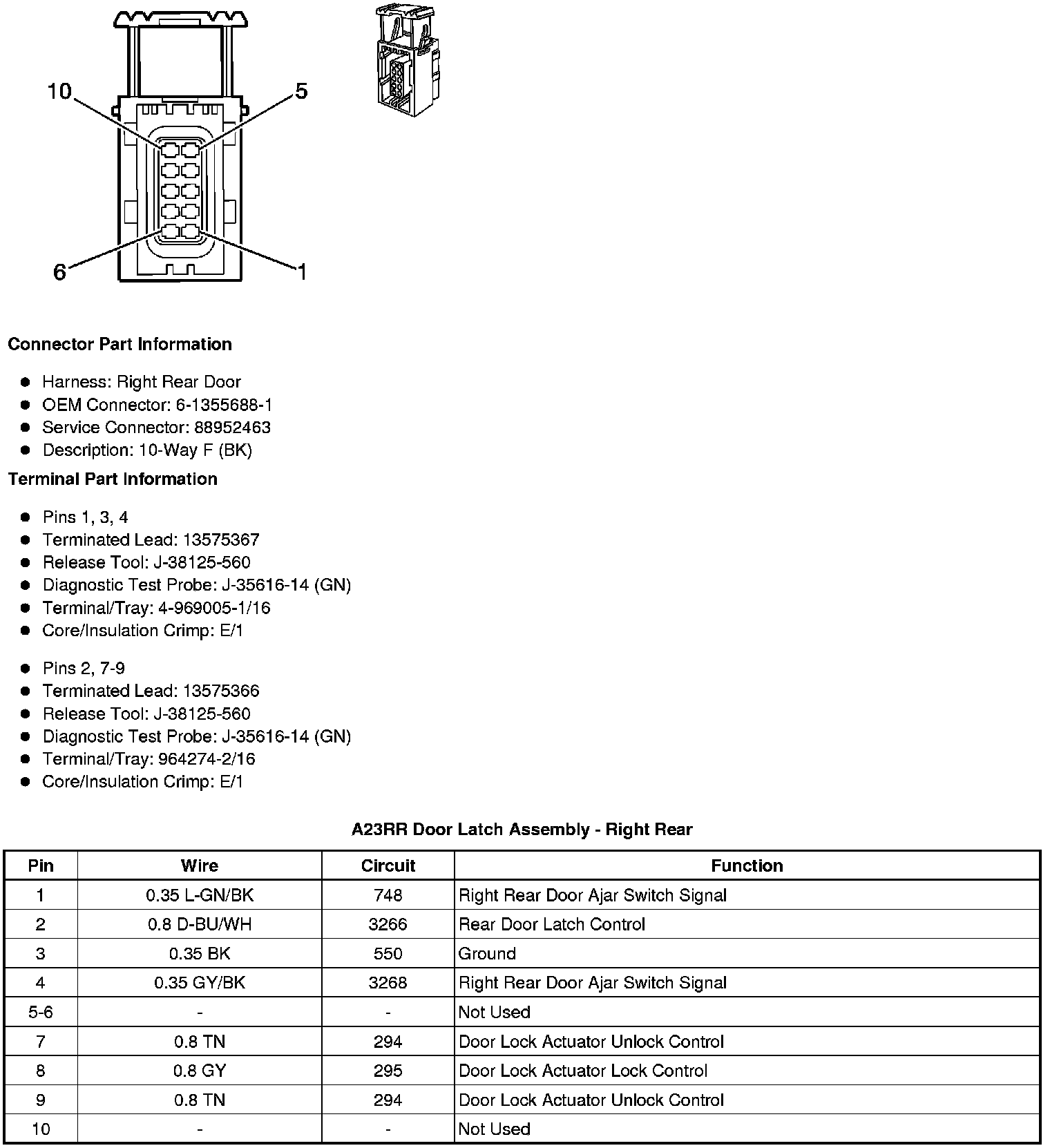

A23RR Door Latch Assembly - Right Rear
