Radio/Stereo




Component Connector End Views

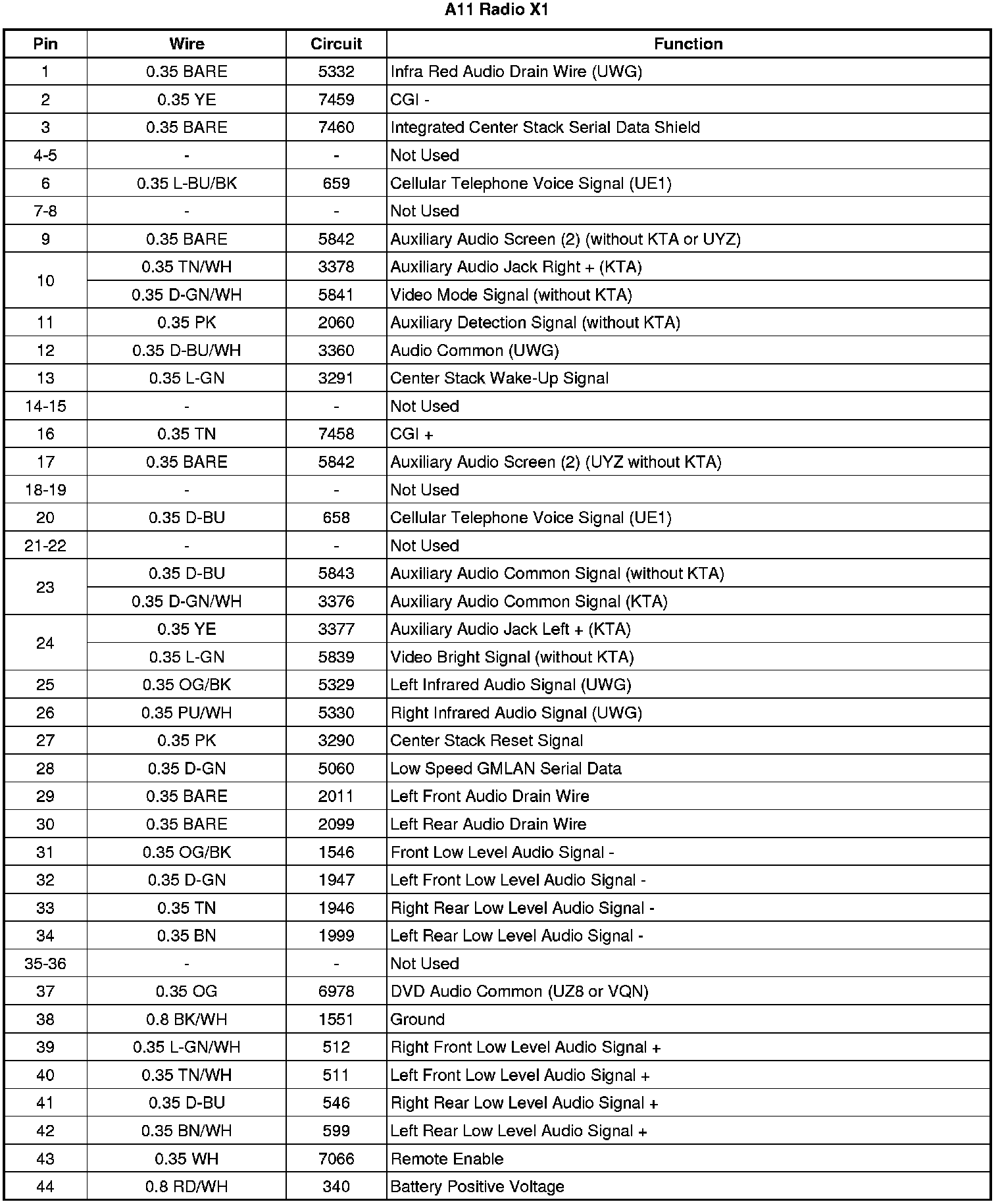

A11 Radio X1

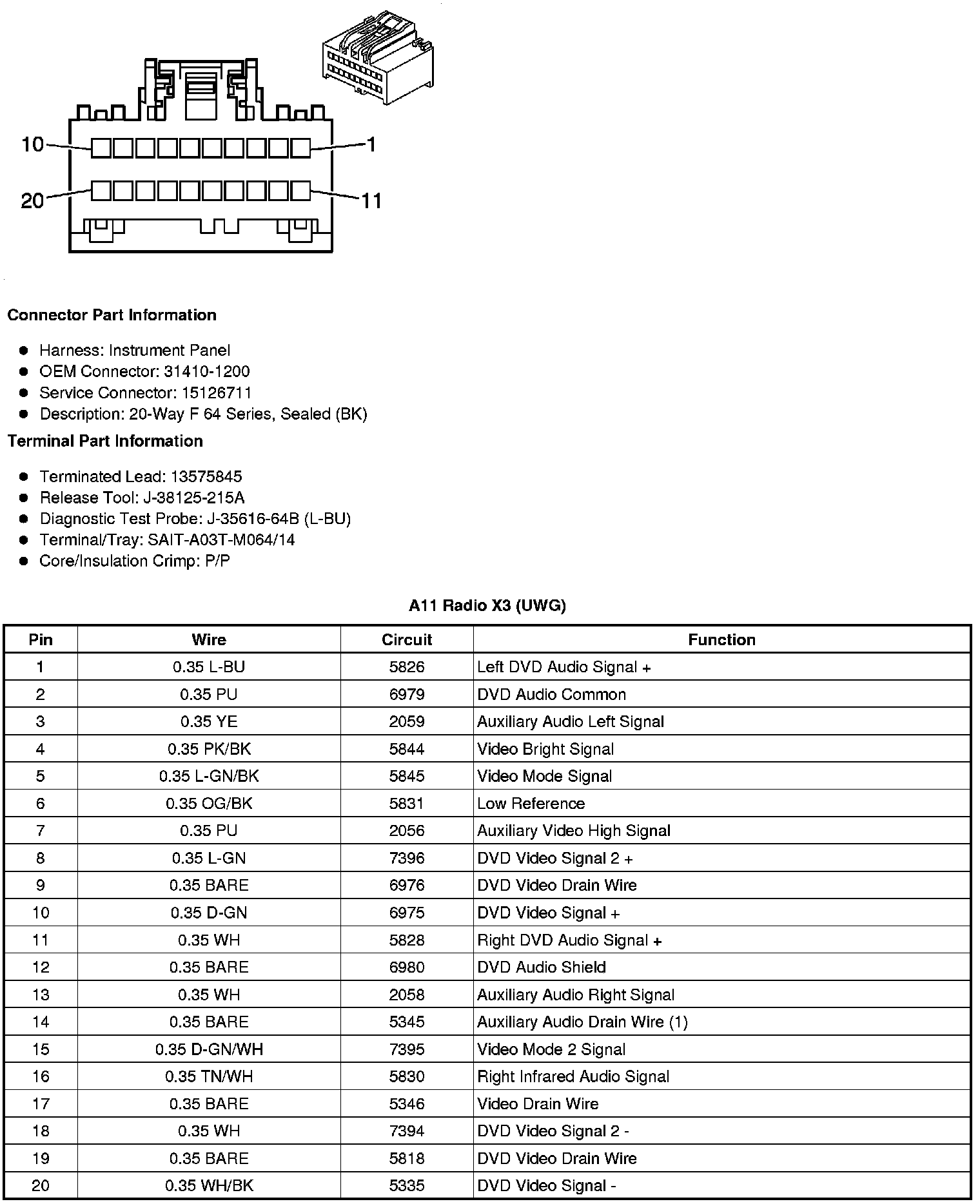

A11 Radio X3 (UWG)

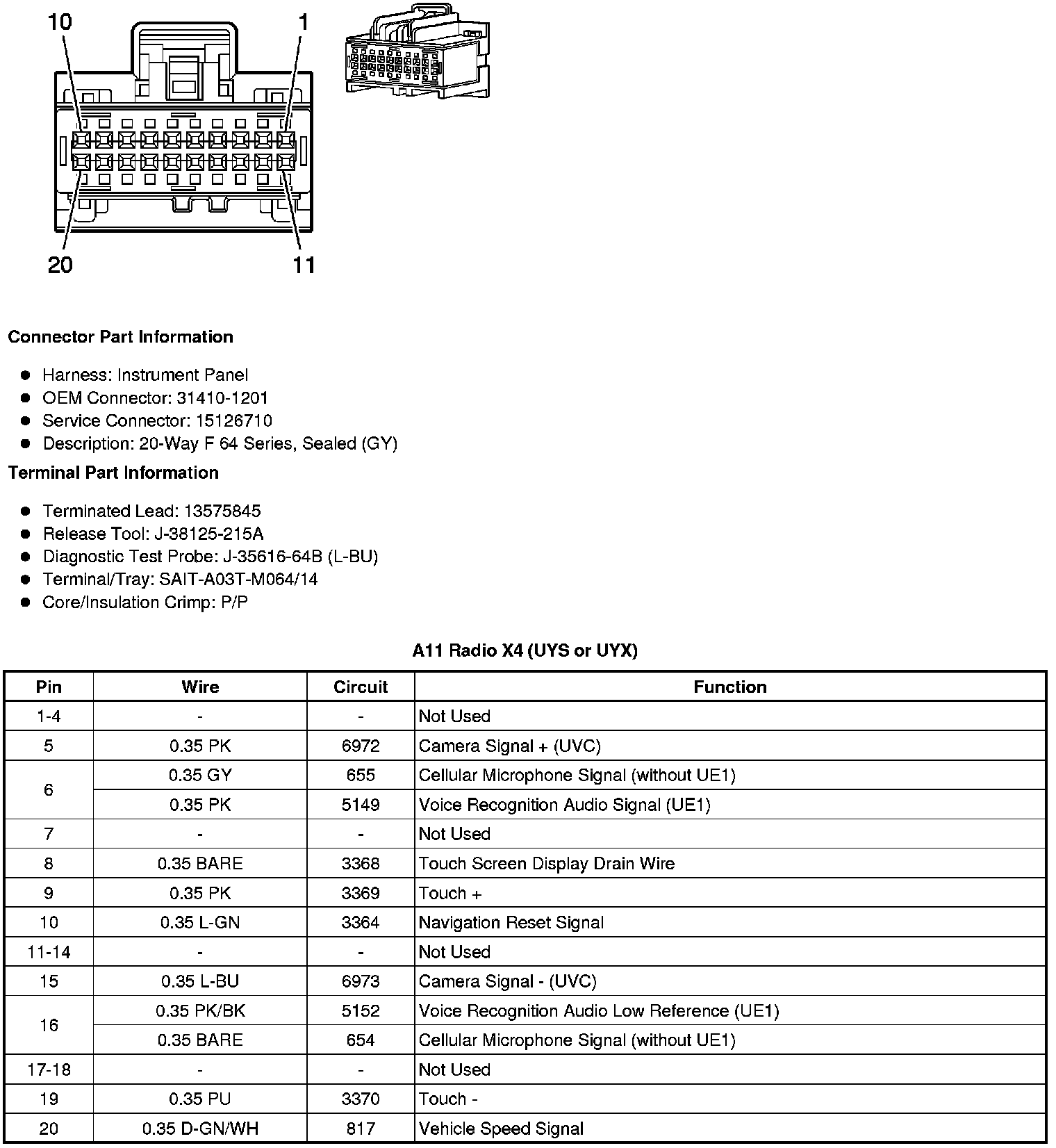

A11 Radio X4 (UYS or UYX)

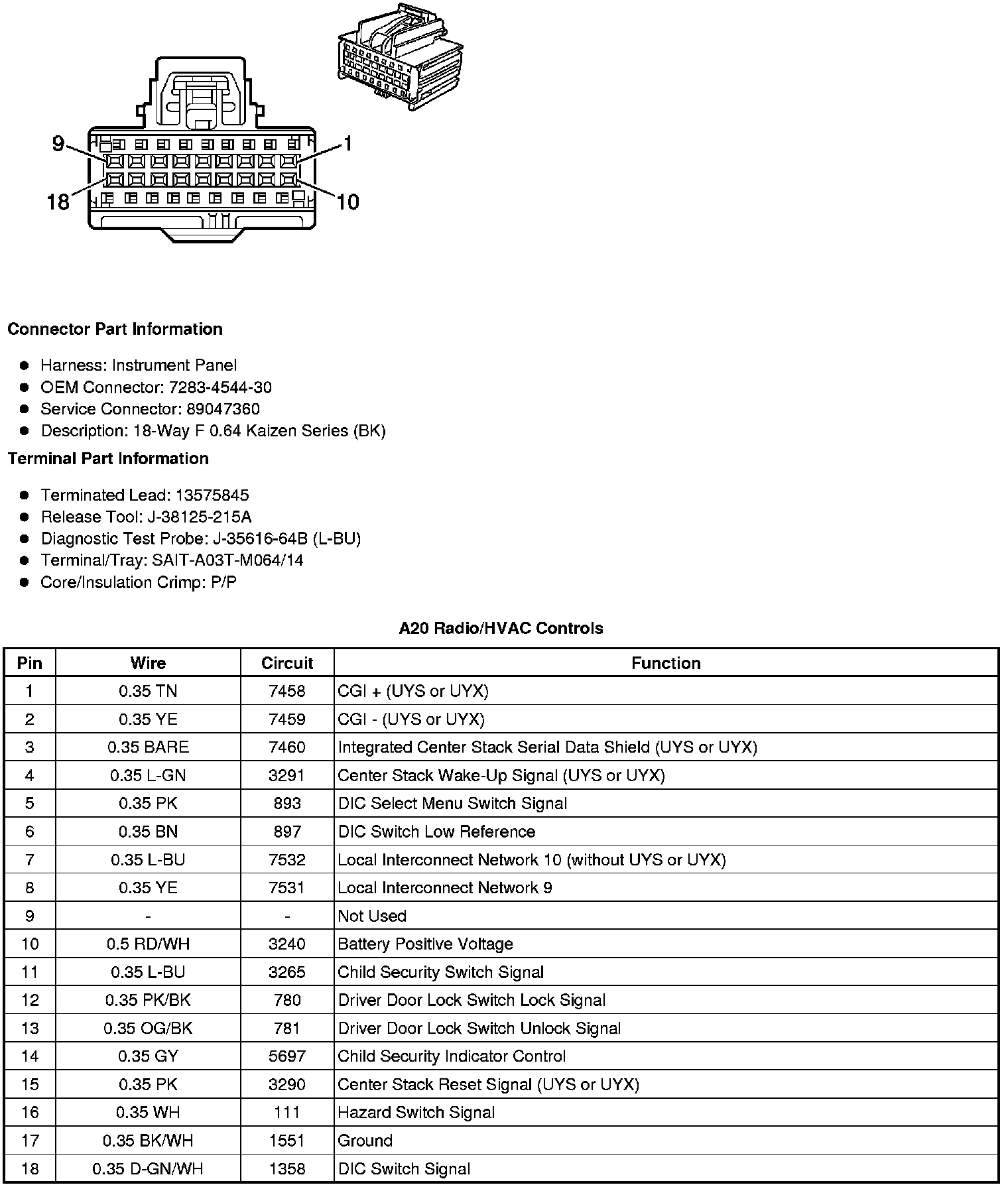

A20 Radio/HVAC Controls
