Radiator Cooling Fan Motor

Component Connector End Views

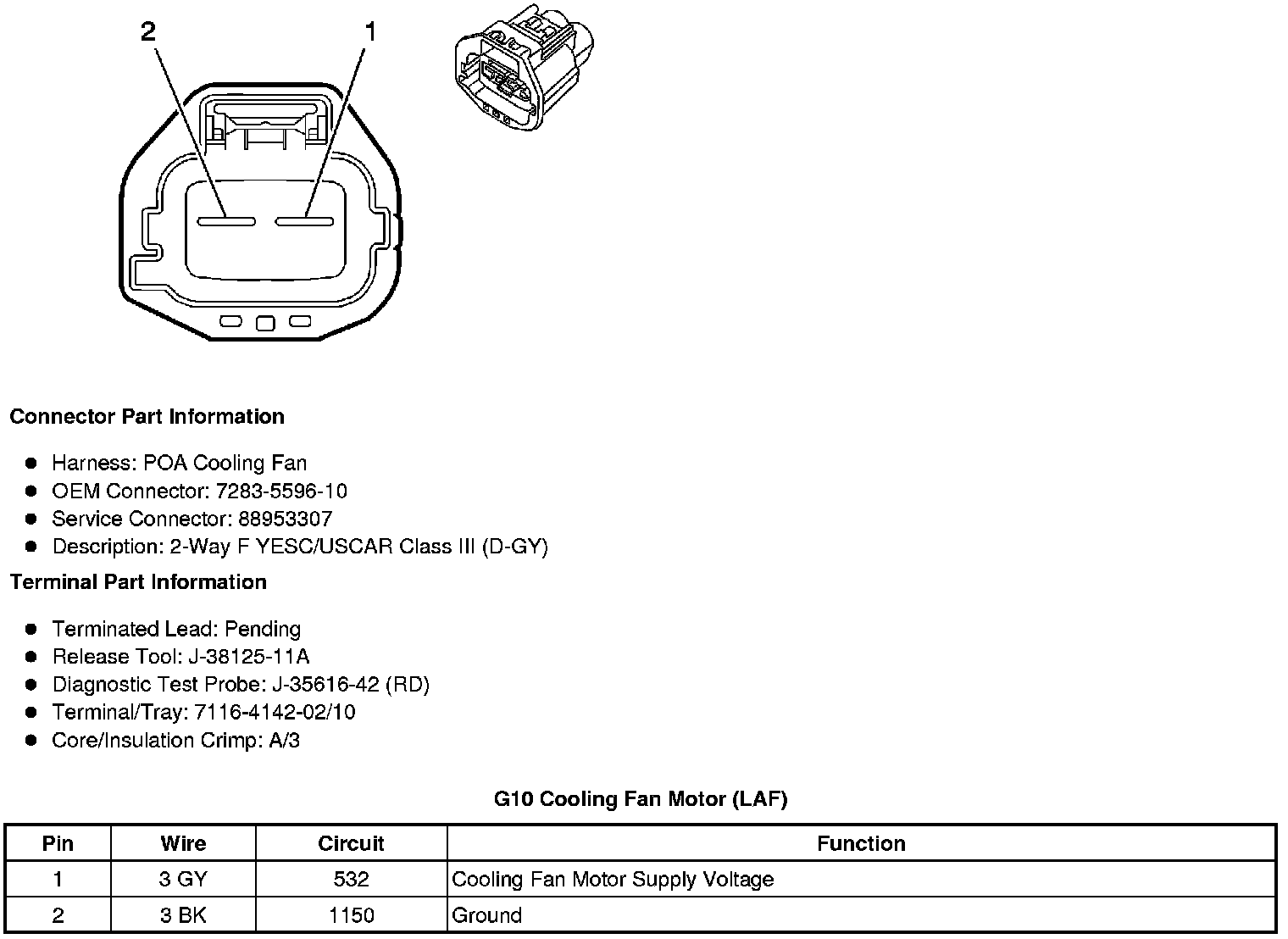

G10 Cooling Fan Motor (LAF)

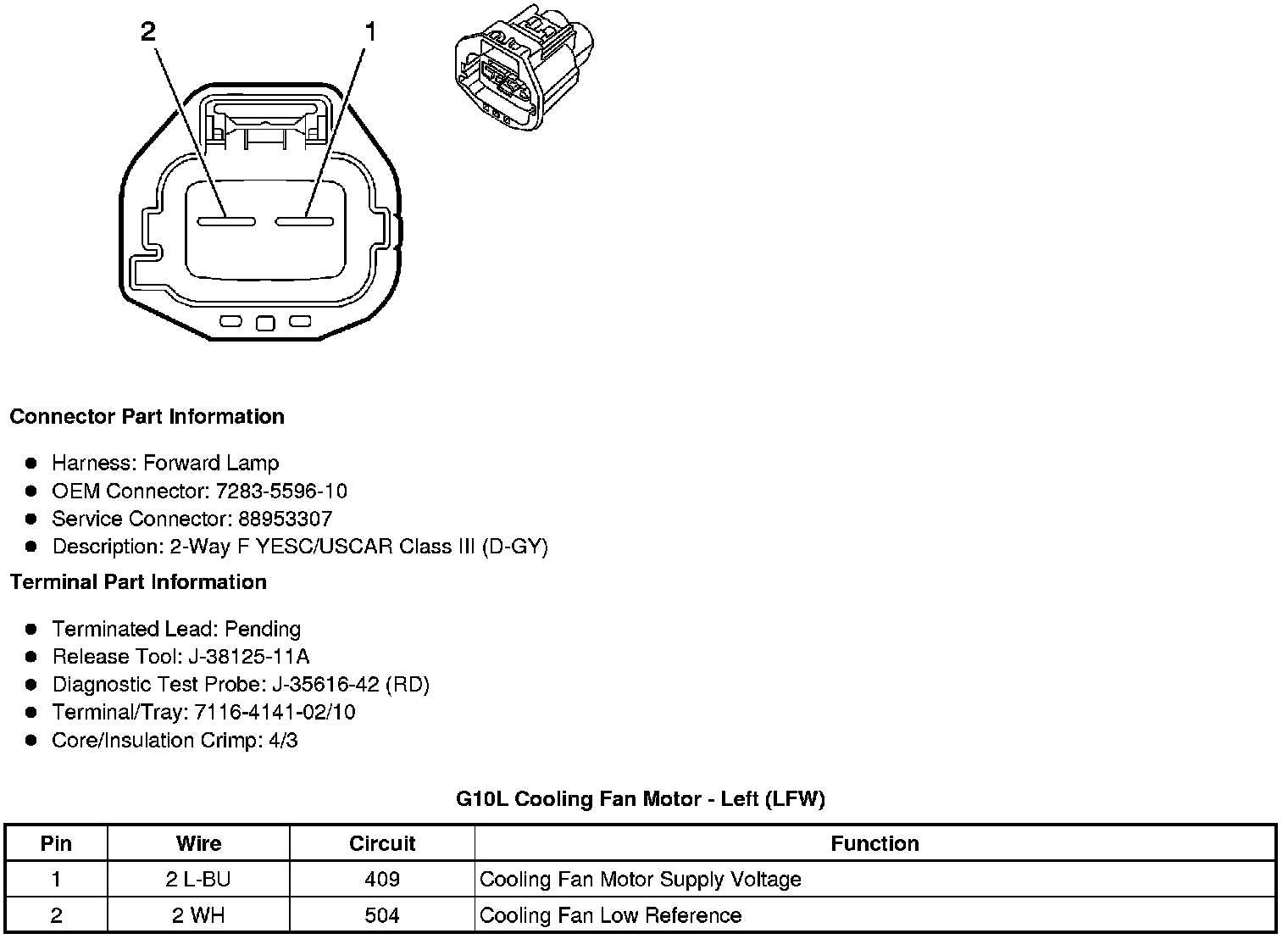

G10L Cooling Fan Motor - Left (LFW)

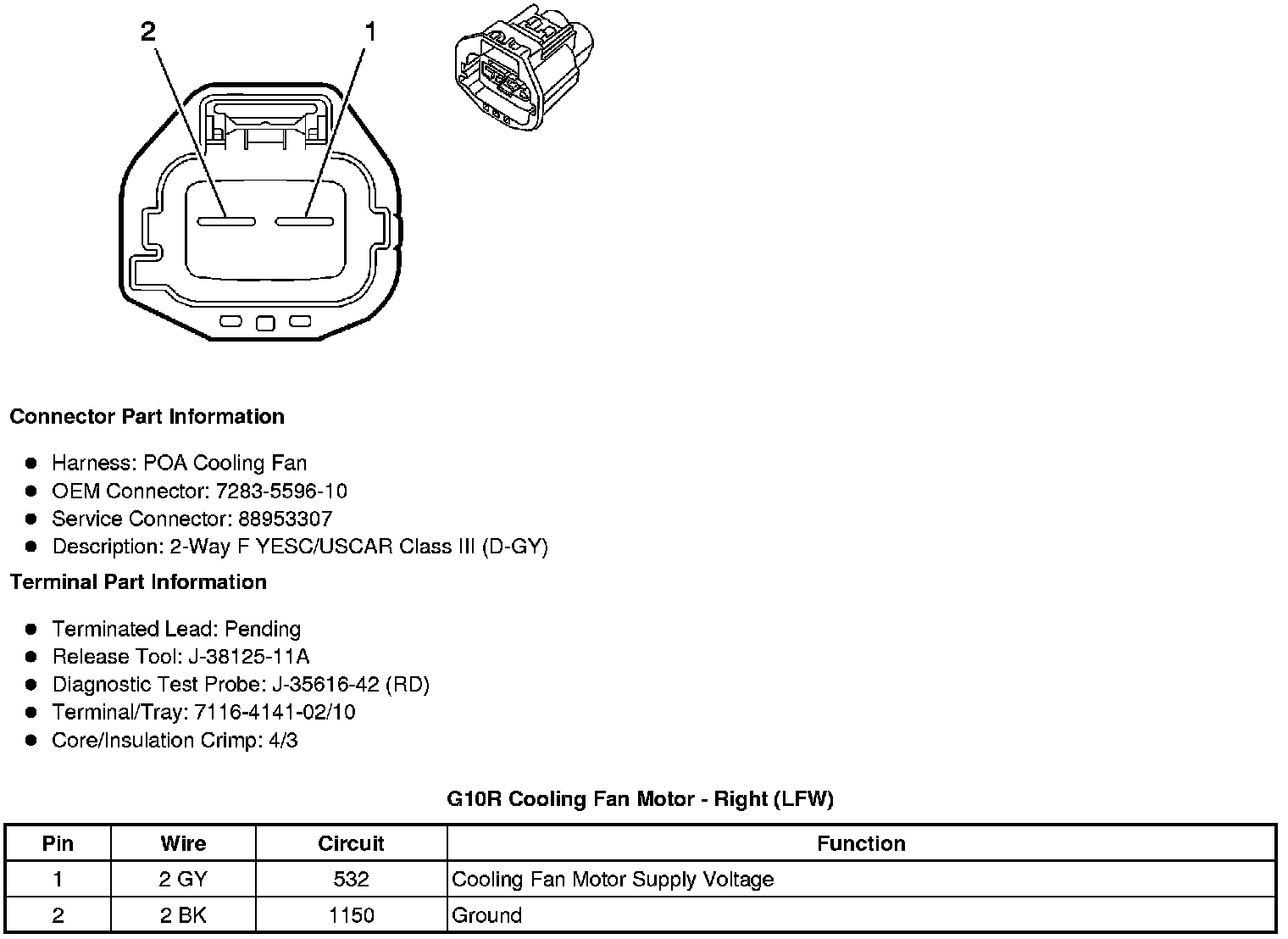

G10R Cooling Fan Motor - Right (LFW)
