Power Trunk / Liftgate Hazard Sensor




Component Connector End Views

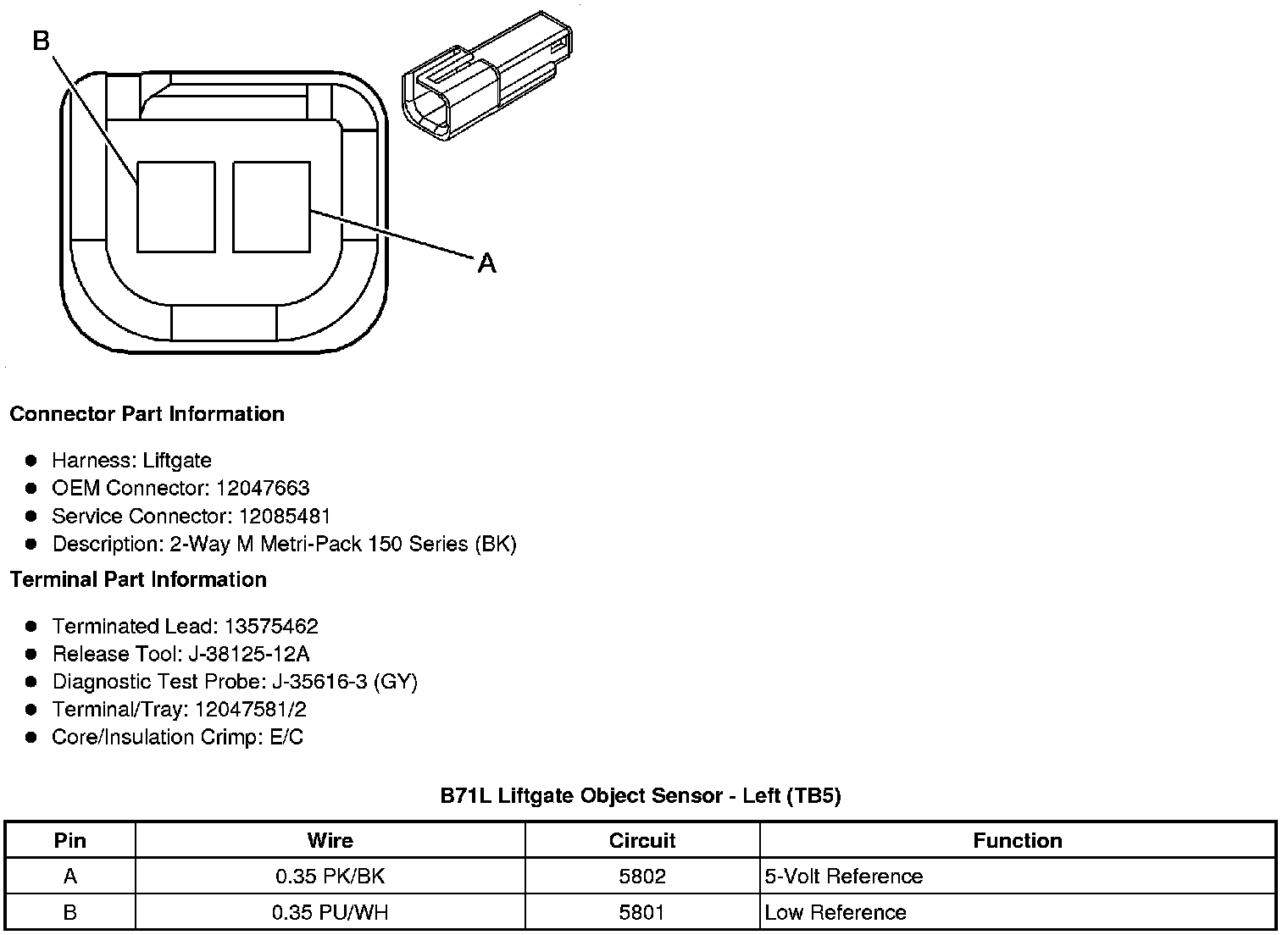

B71L Liftgate Object Sensor - Left (TB5)

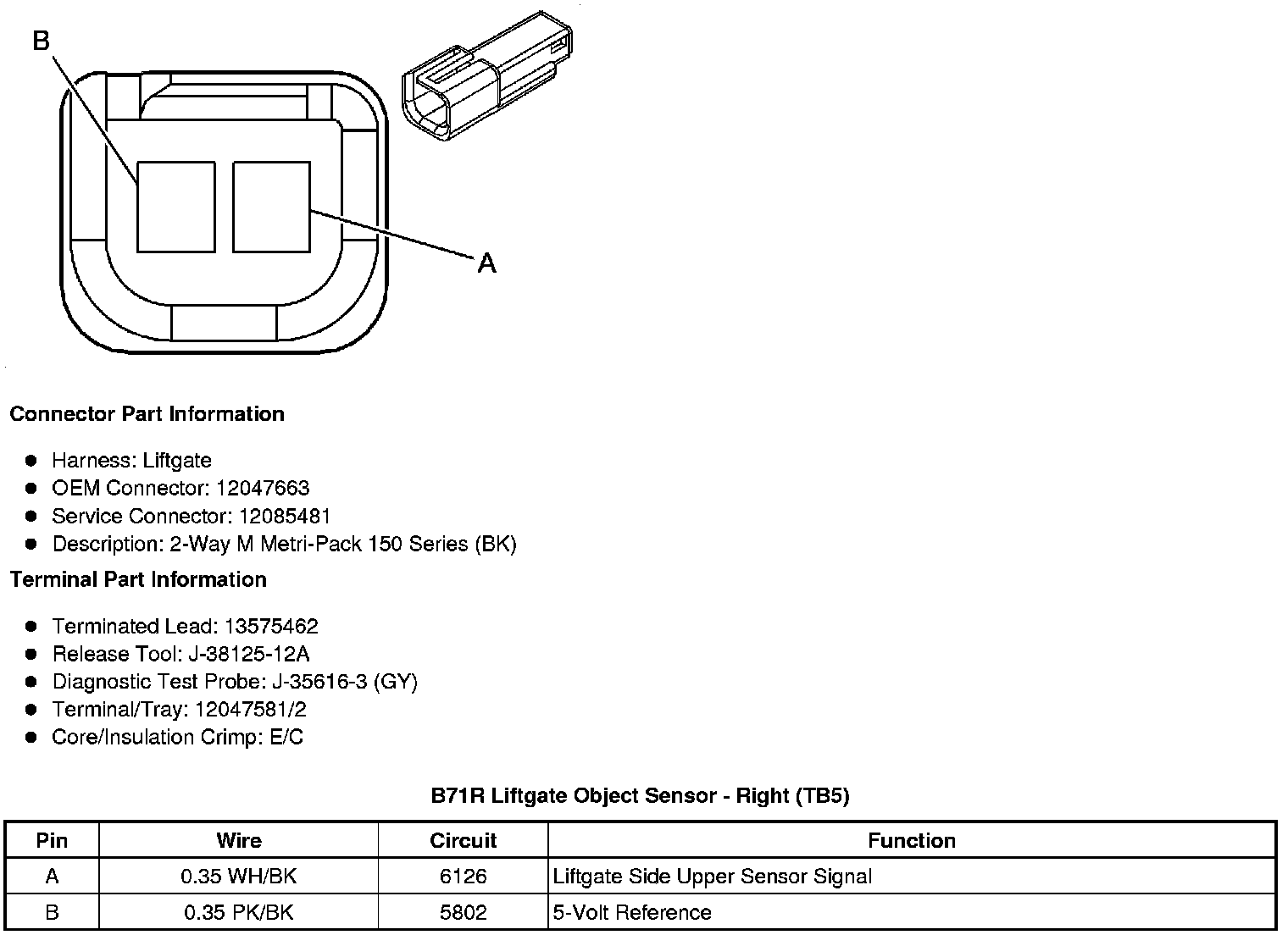

B71R Liftgate Object Sensor - Right (TB5)
