License Plate Lamp
License Plate Lamp
Component Connector End Views

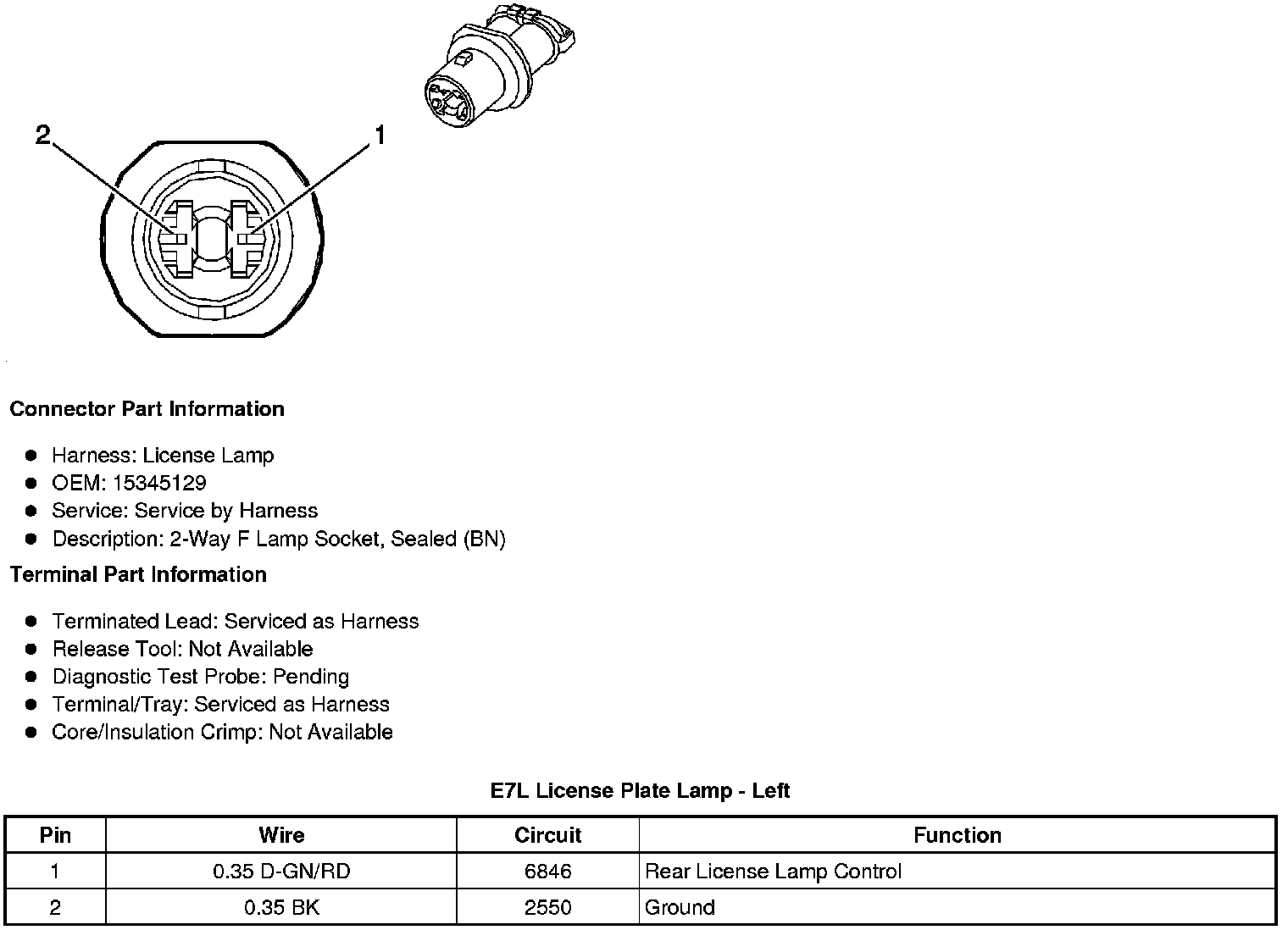

E7L
License Plate Lamp
- Left

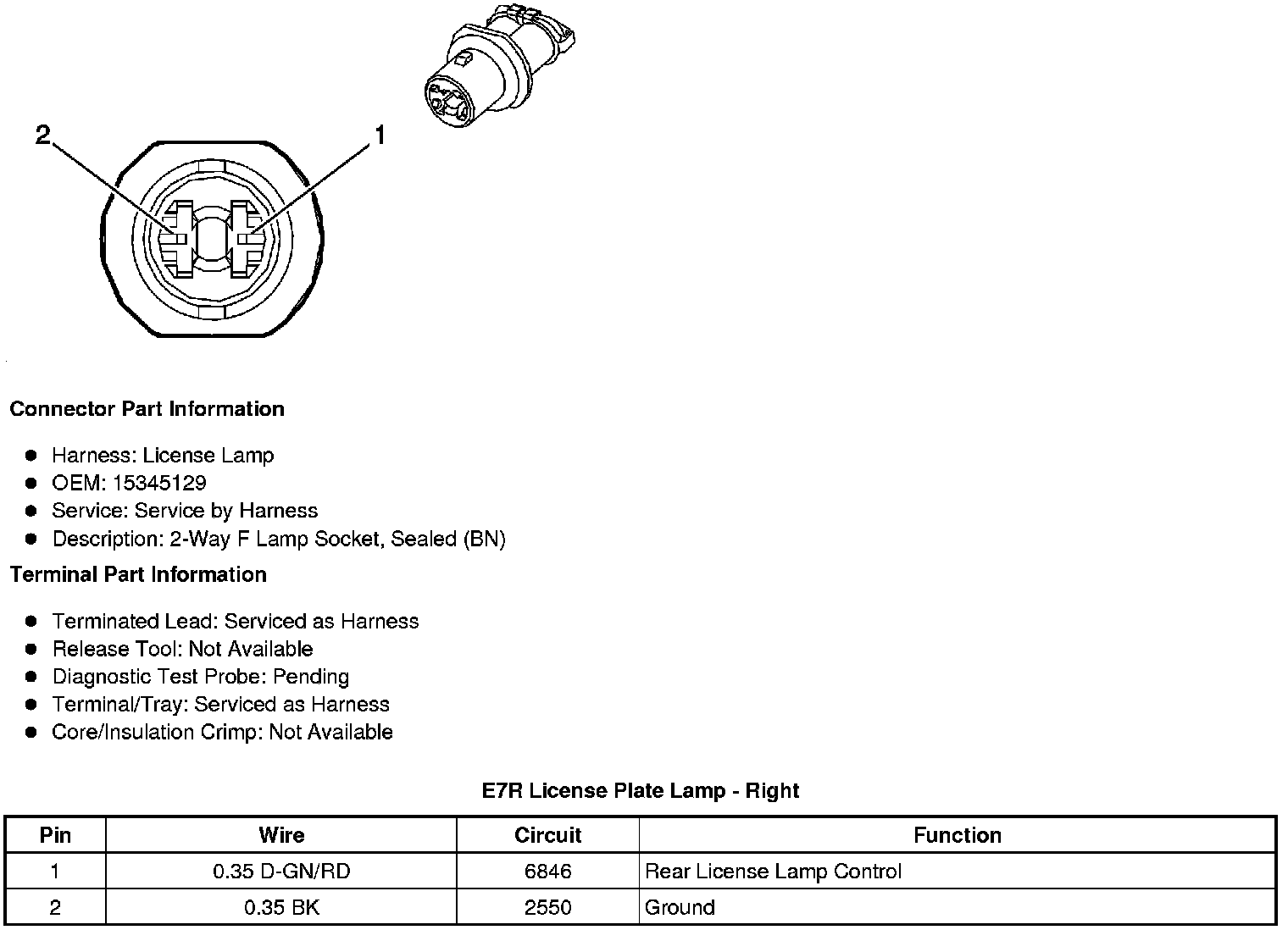

E7R
License Plate Lamp
- Right
