Instrument Cluster / Carrier
Instrument Cluster / Carrier
Component Connector End Views

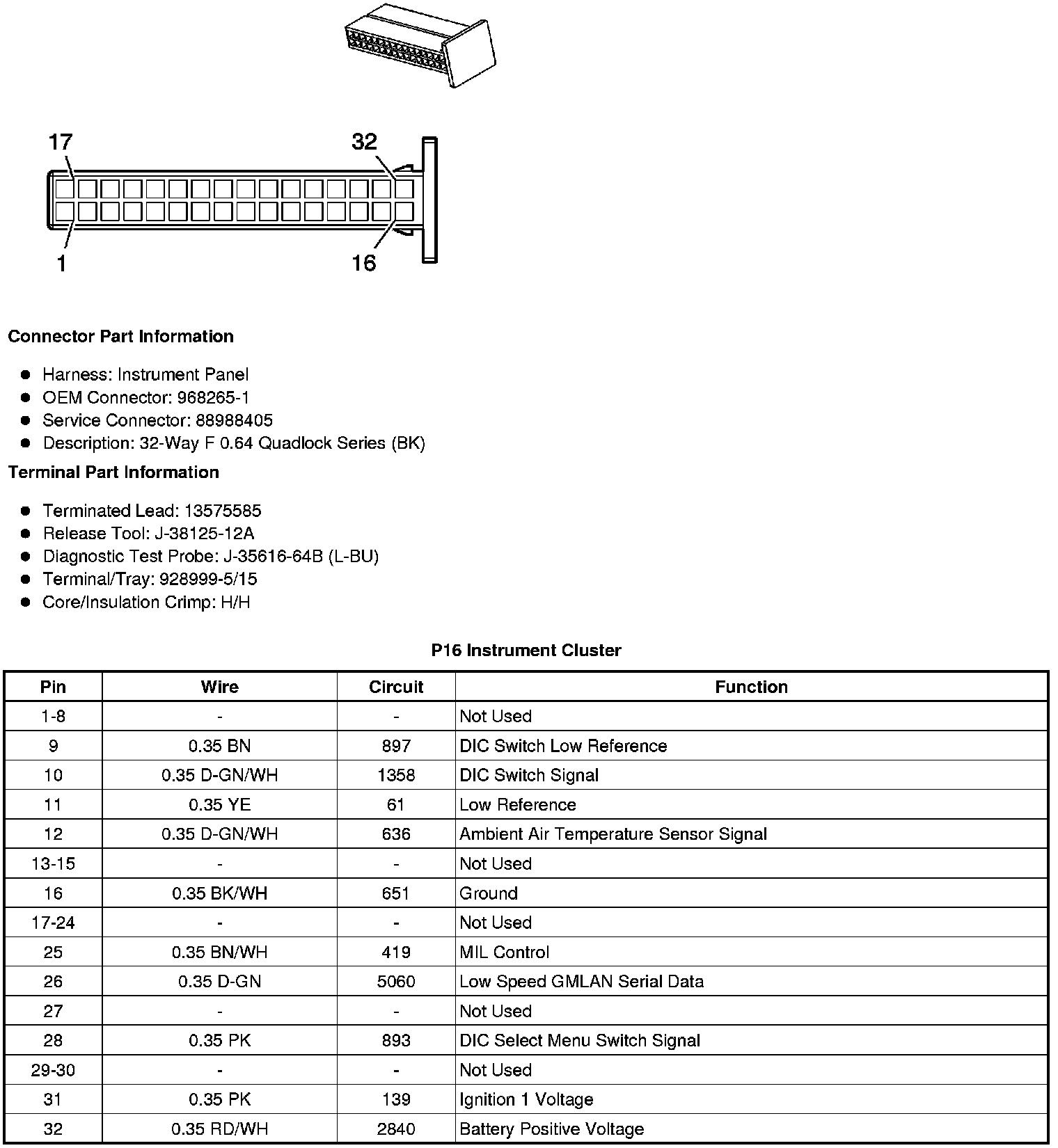

P16 Instrument Cluster
