Home >> GMC >> 2011 >> Terrain AWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Front Door Window Motor

Front Door Window Motor

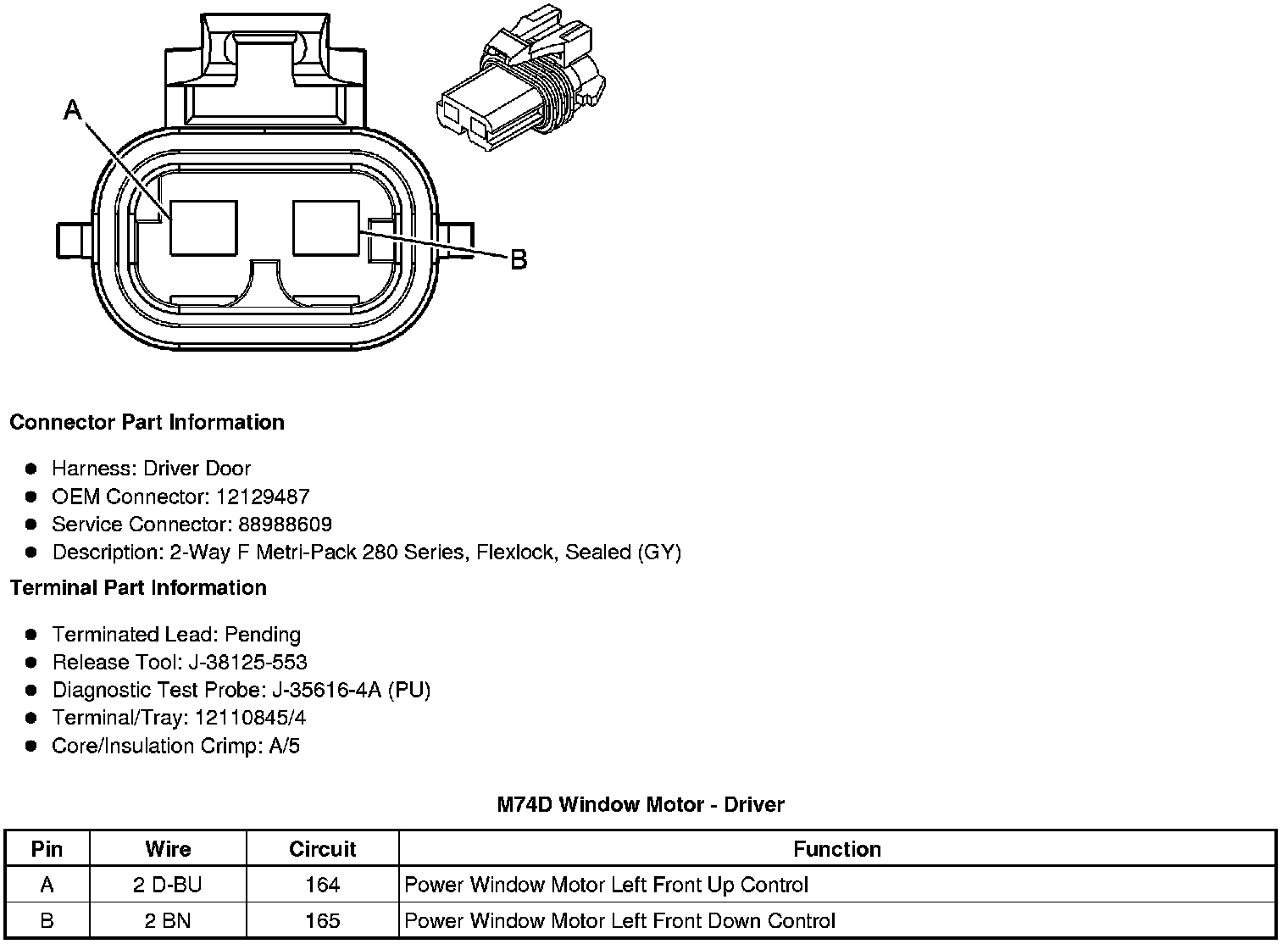

Component Connector End Views

M74D Window Motor - Driver

M74P Window Motor - Passenger
