Window Switch - Passenger X2 (LTZ or SLT) S79P
Window Switch - Passenger X2 (LTZ or SLT) S79P
Component Connector End Views

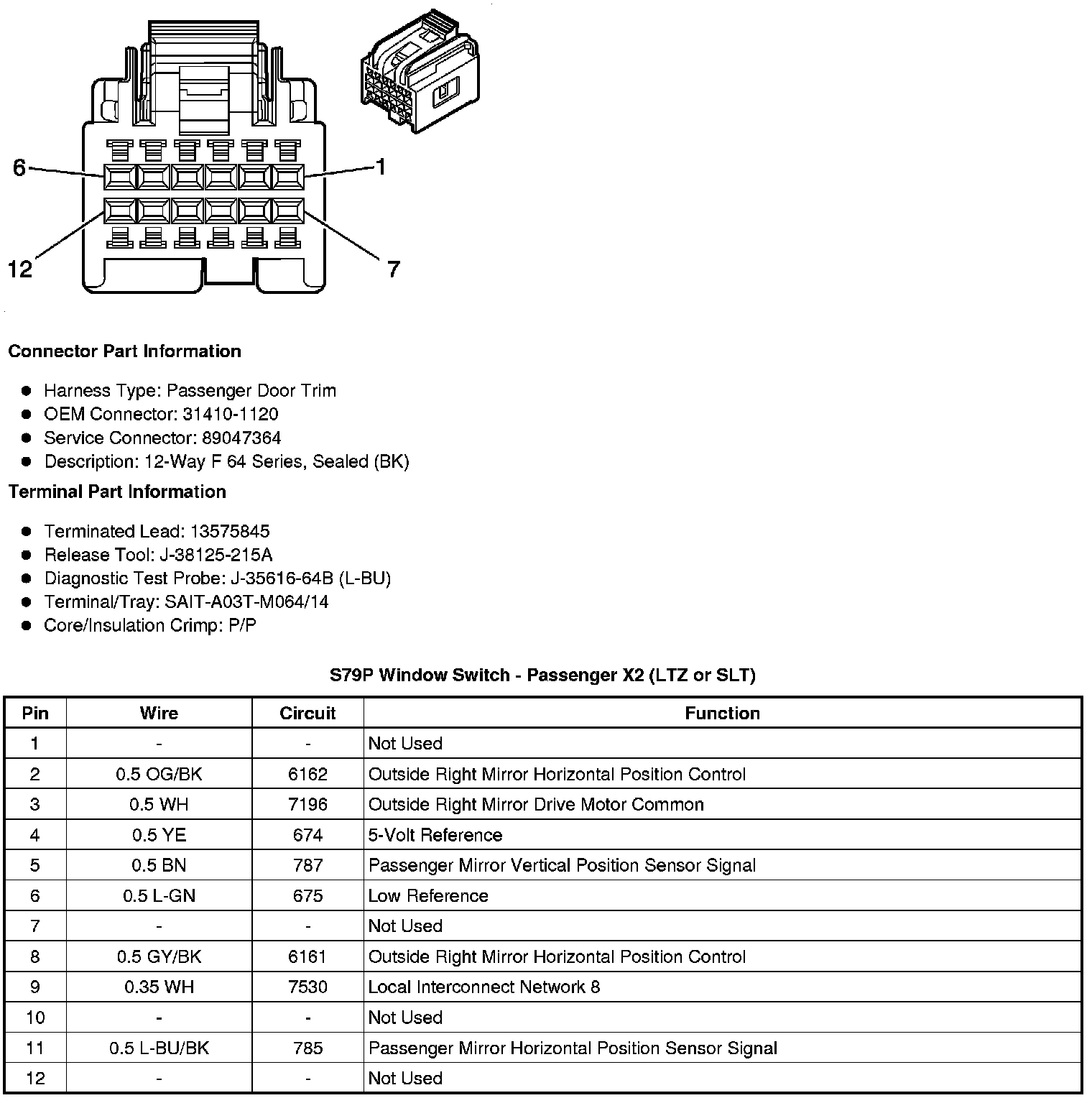

S79P Window Switch - Passenger X2 (LTZ or SLT)
