Home >> GMC >> 2011 >> Terrain AWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector End Views By Name >> Window Switch - Left Rear S79LR

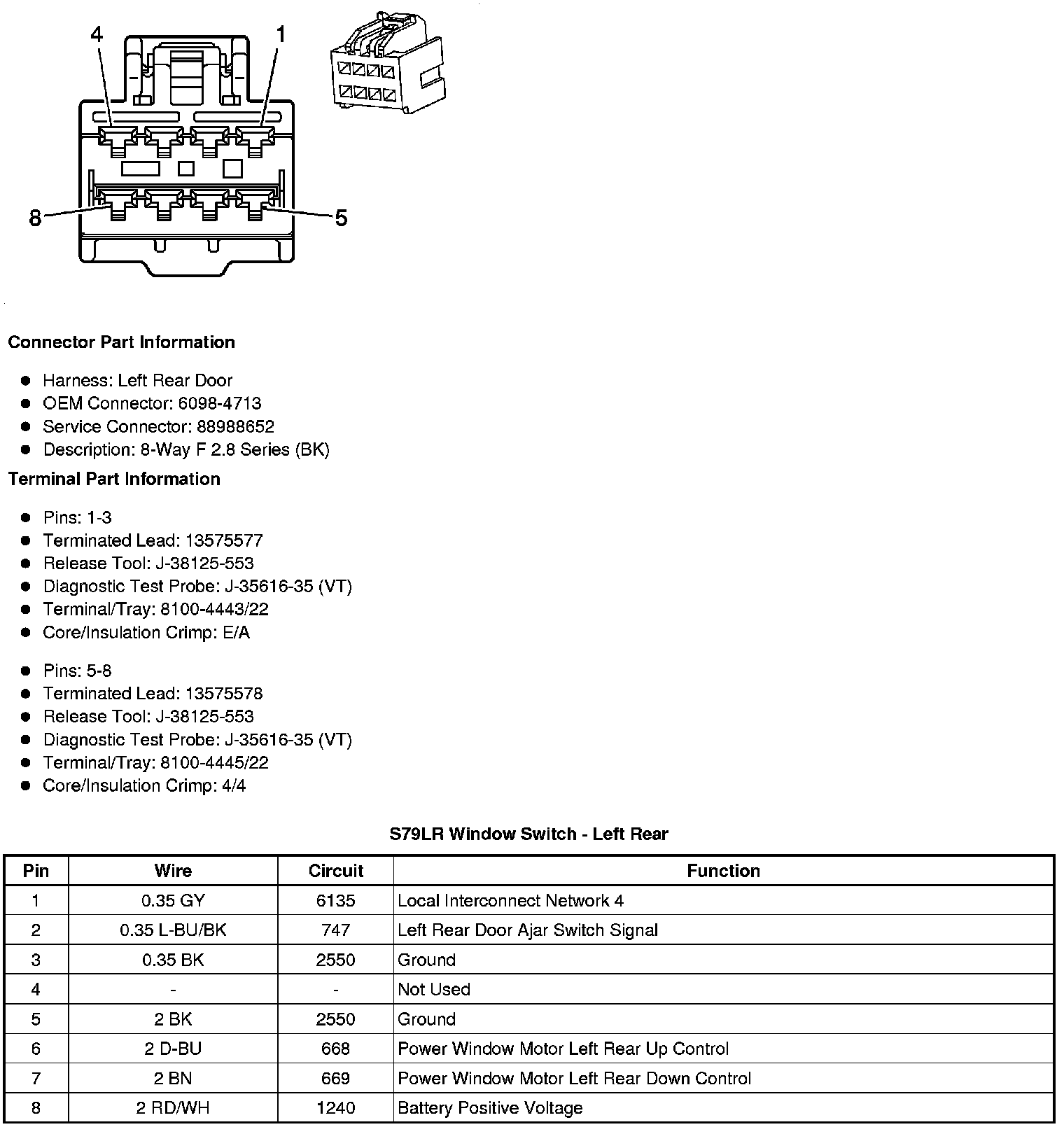

Window Switch - Left Rear S79LR




Component Connector End Views

S79LR Window Switch - Left Rear
