Wheel Speed Sensor - Right Front B5RF
Wheel Speed Sensor - Right Front B5RF

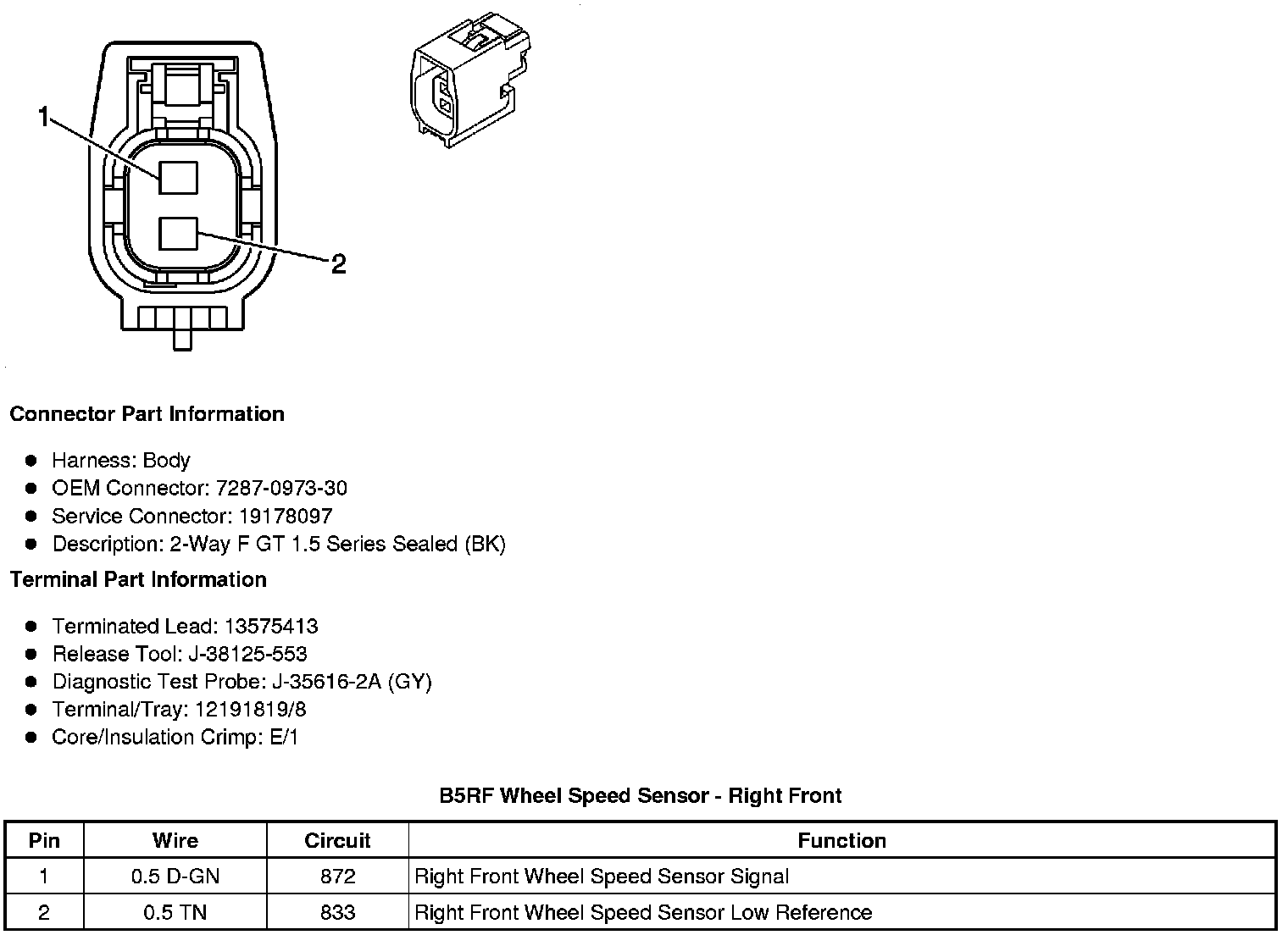

Component Connector End Views
B5RF Wheel Speed Sensor - Right Front
