Transmission Shift Lever Position Indicator P2
Transmission Shift Lever Position Indicator P2
Component Connector End Views

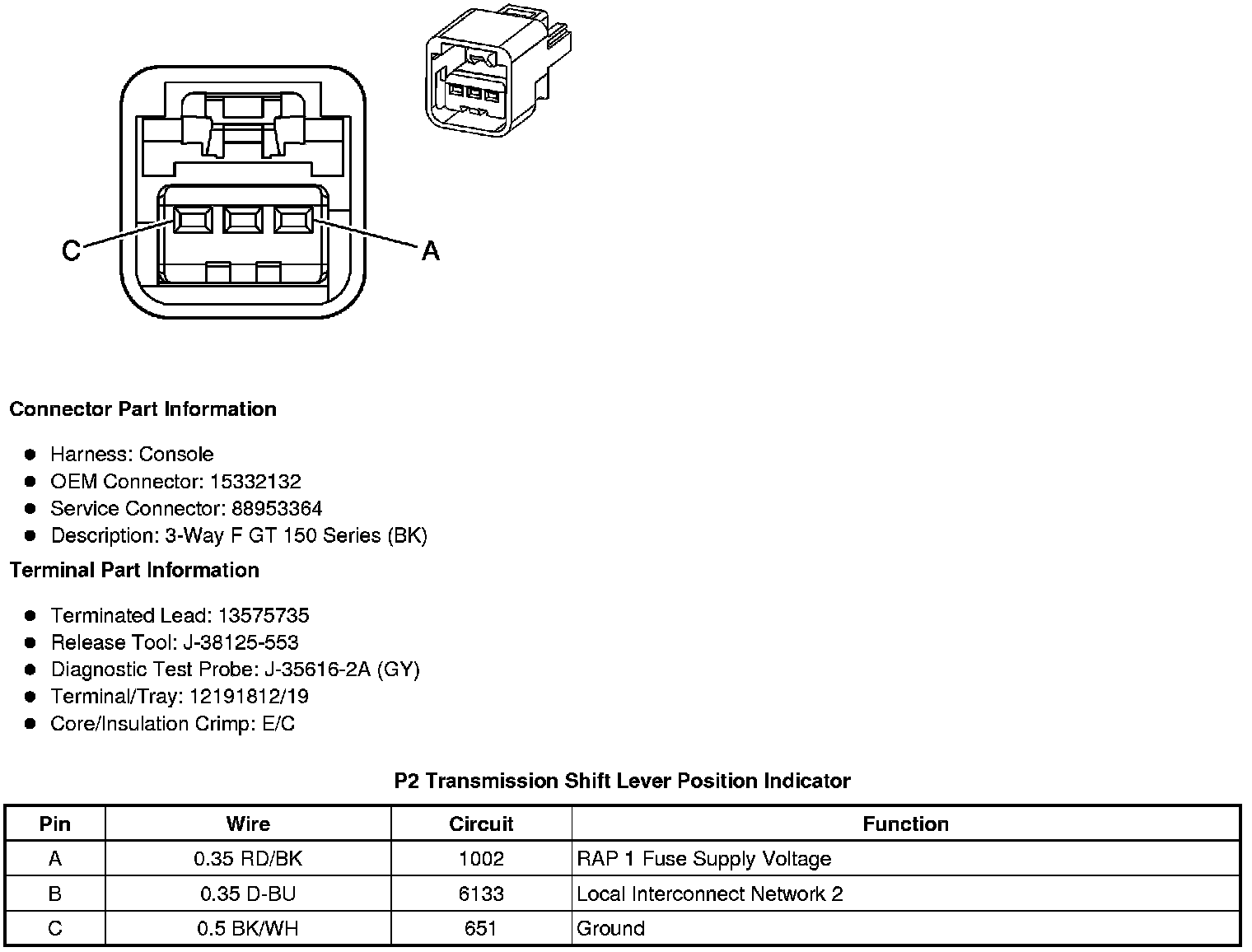

P2 Transmission Shift Lever Position Indicator
