Sunshade - Left Front A3L
Sunshade - Left Front A3L
Component Connector End Views

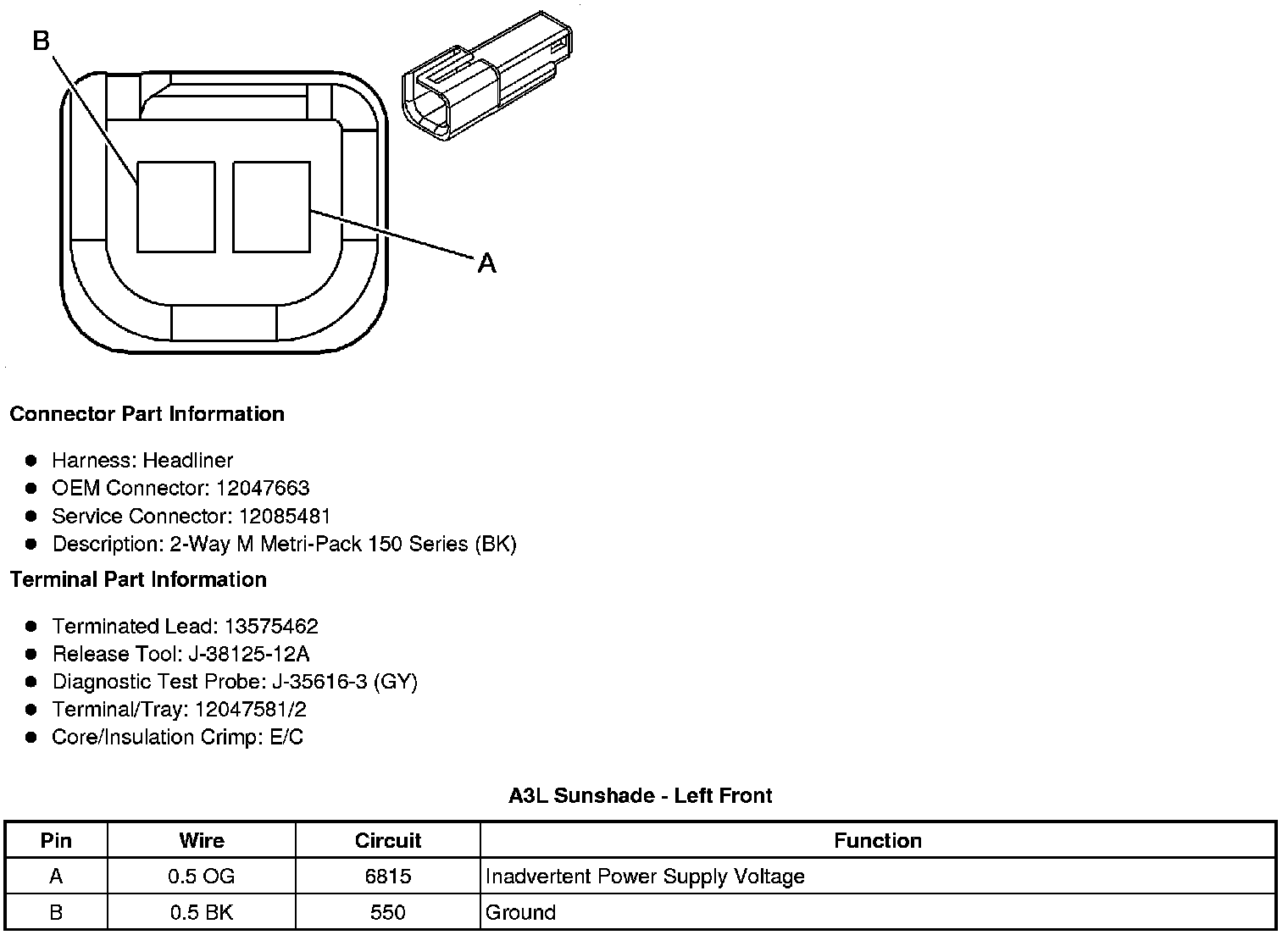

A3L Sunshade - Left Front
