Steering Wheel Controls Switch - Left S70L
Steering Wheel Controls Switch - Left S70L
Component Connector End Views

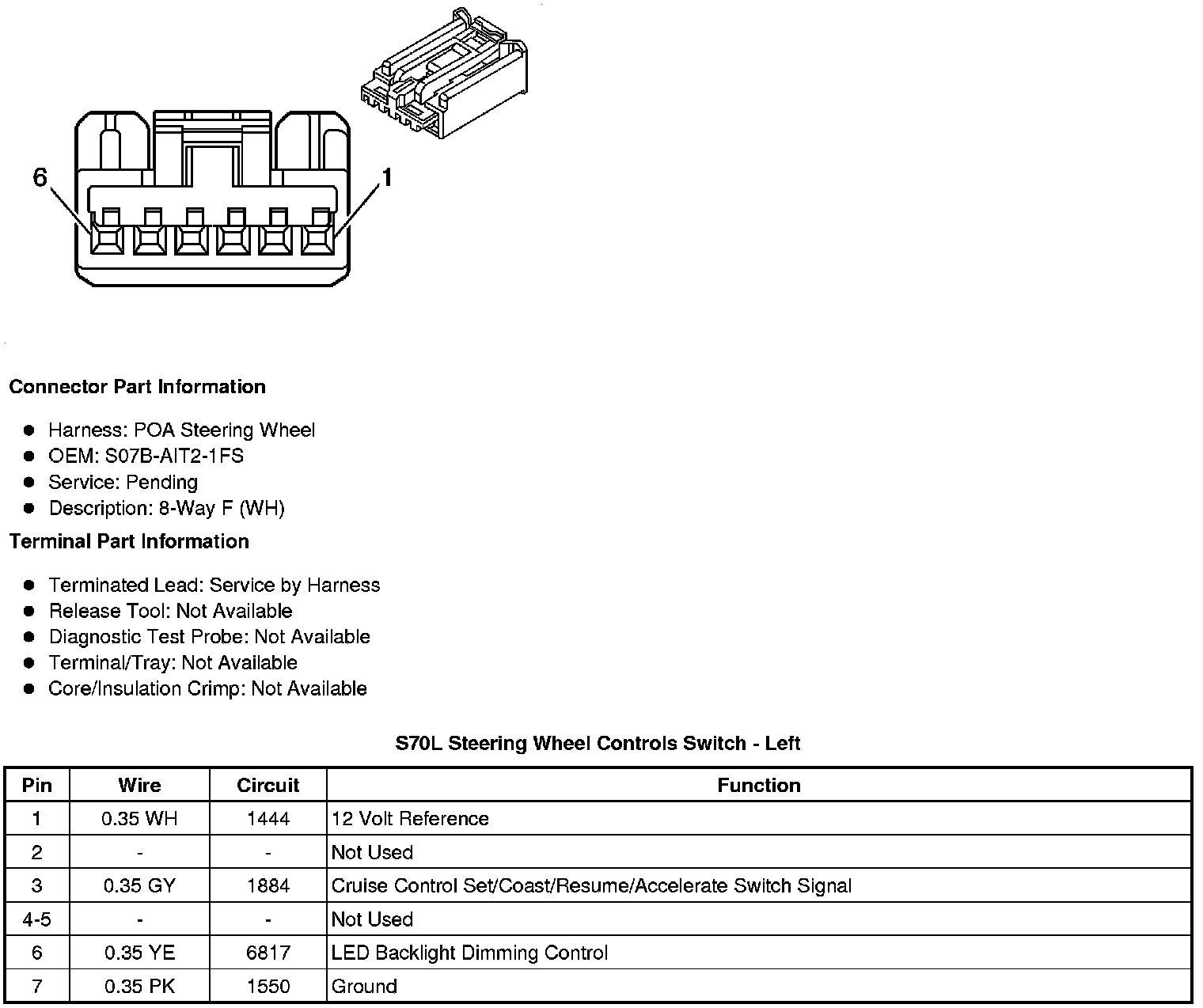

S70L Steering Wheel Controls Switch - Left
