Home >> GMC >> 2011 >> Terrain AWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector End Views By Name >> Side Marker Lamp - Left Front E2LF

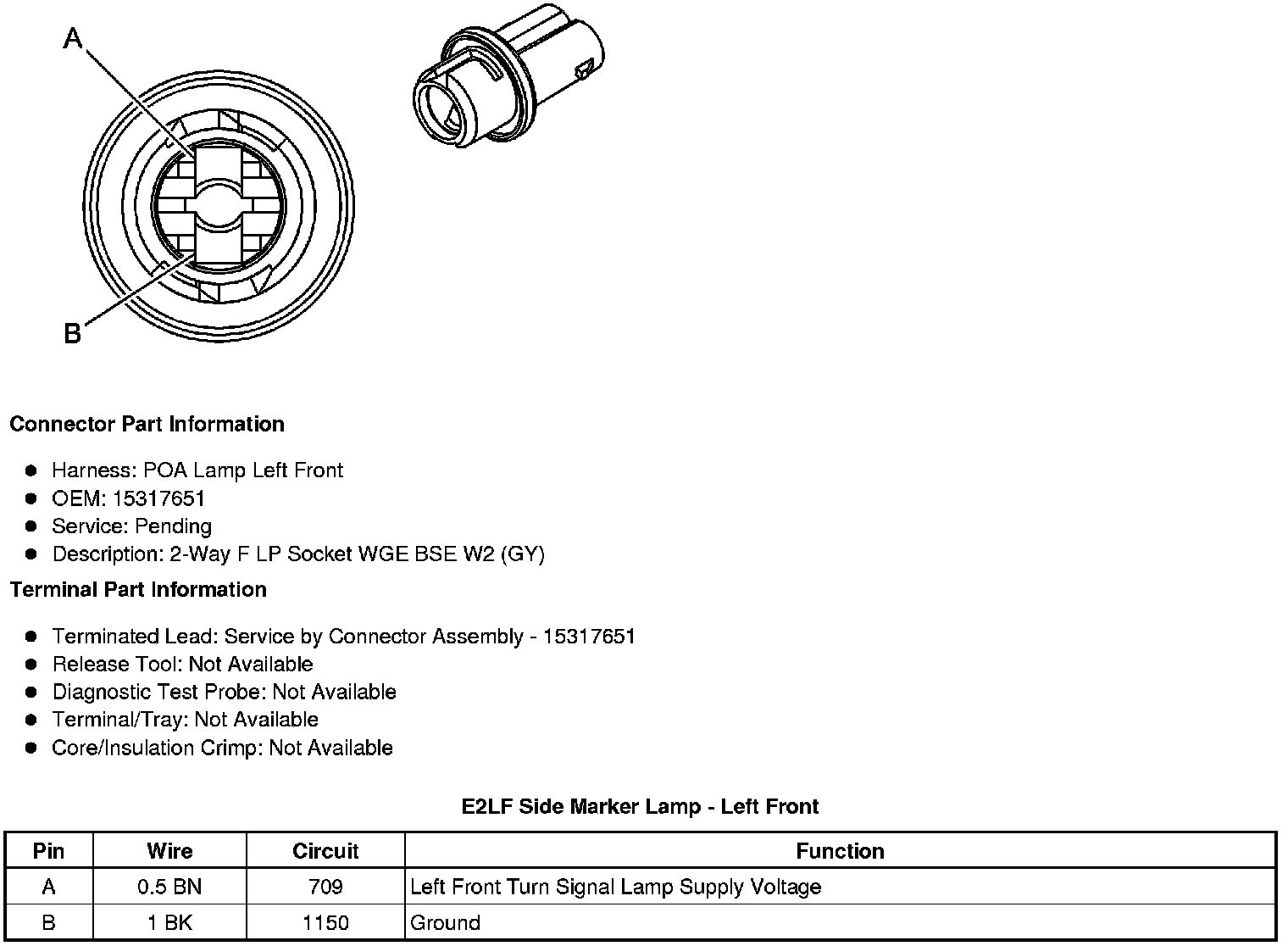

Side Marker Lamp - Left Front E2LF




Component Connector End Views

E2LF Side Marker Lamp - Left Front
