Side Impact Sensor - Right Front B63RF
Side Impact Sensor - Right Front B63RF

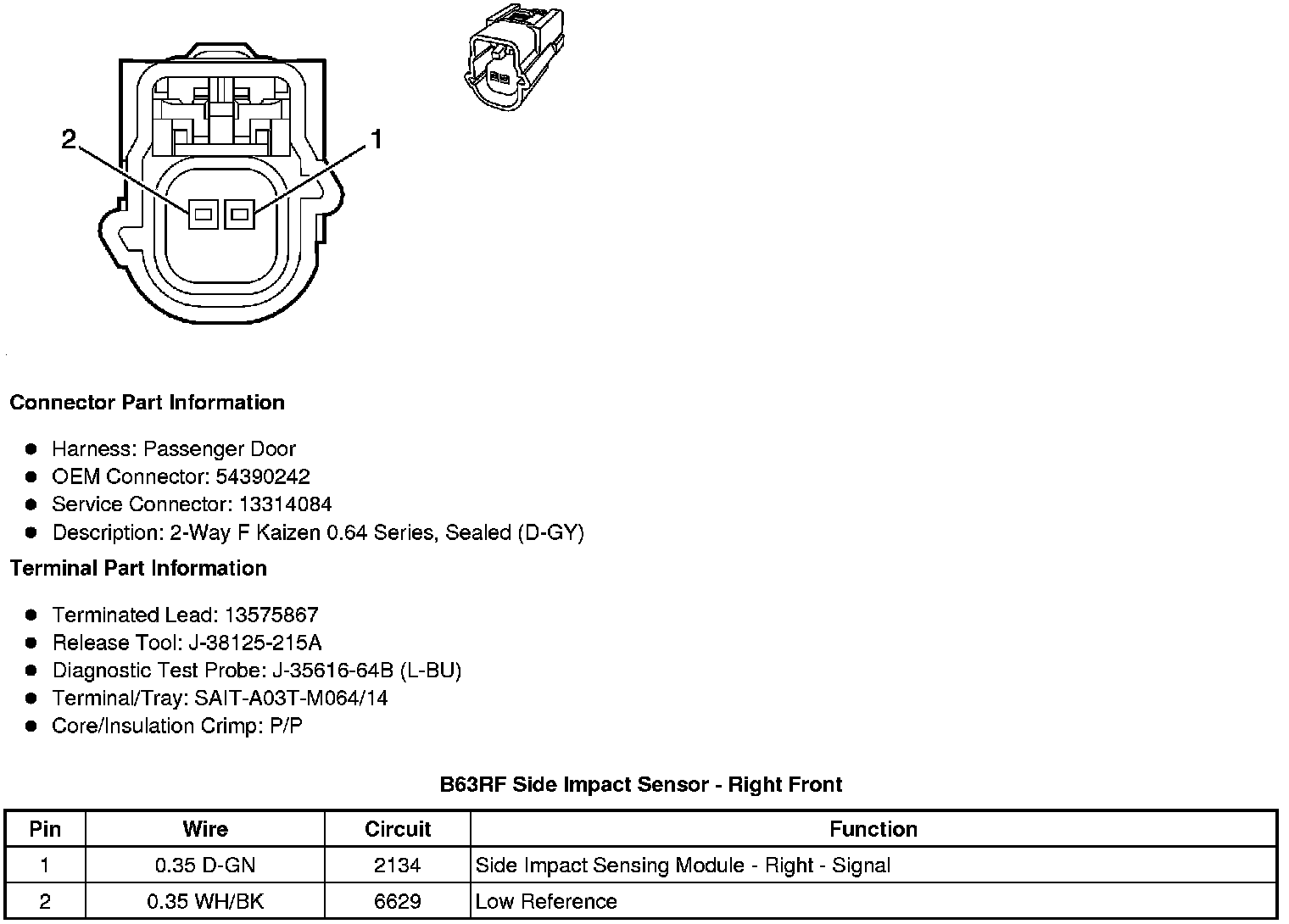

Component Connector End Views
B63RF Side Impact Sensor - Right Front
