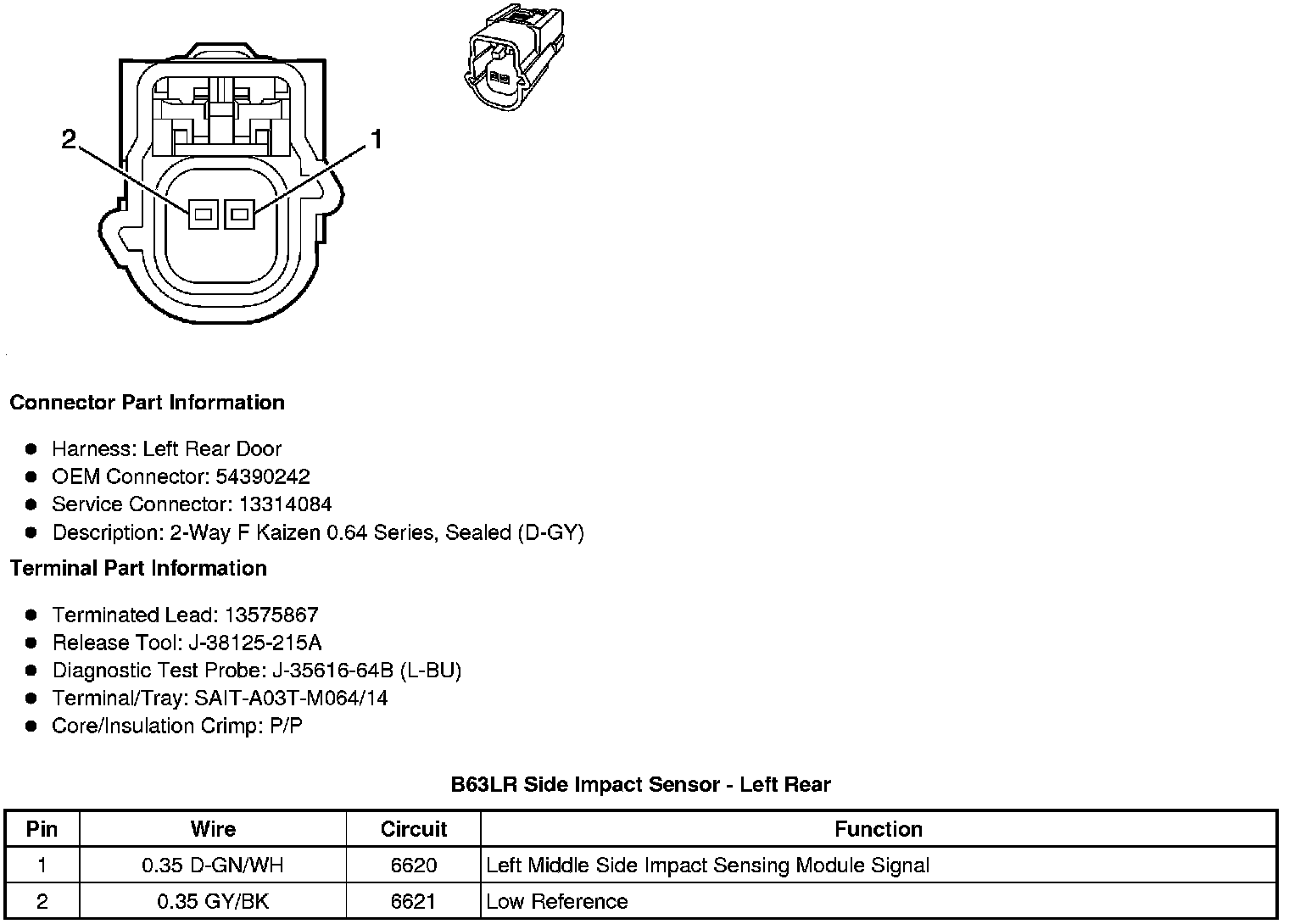

Side Impact Sensor - Left Rear B63LR
Component Connector End Views
B63LR Side Impact Sensor - Left Rear
