Side Impact Sensor - Left Front B63LF
Side Impact Sensor - Left Front B63LF
Component Connector End Views

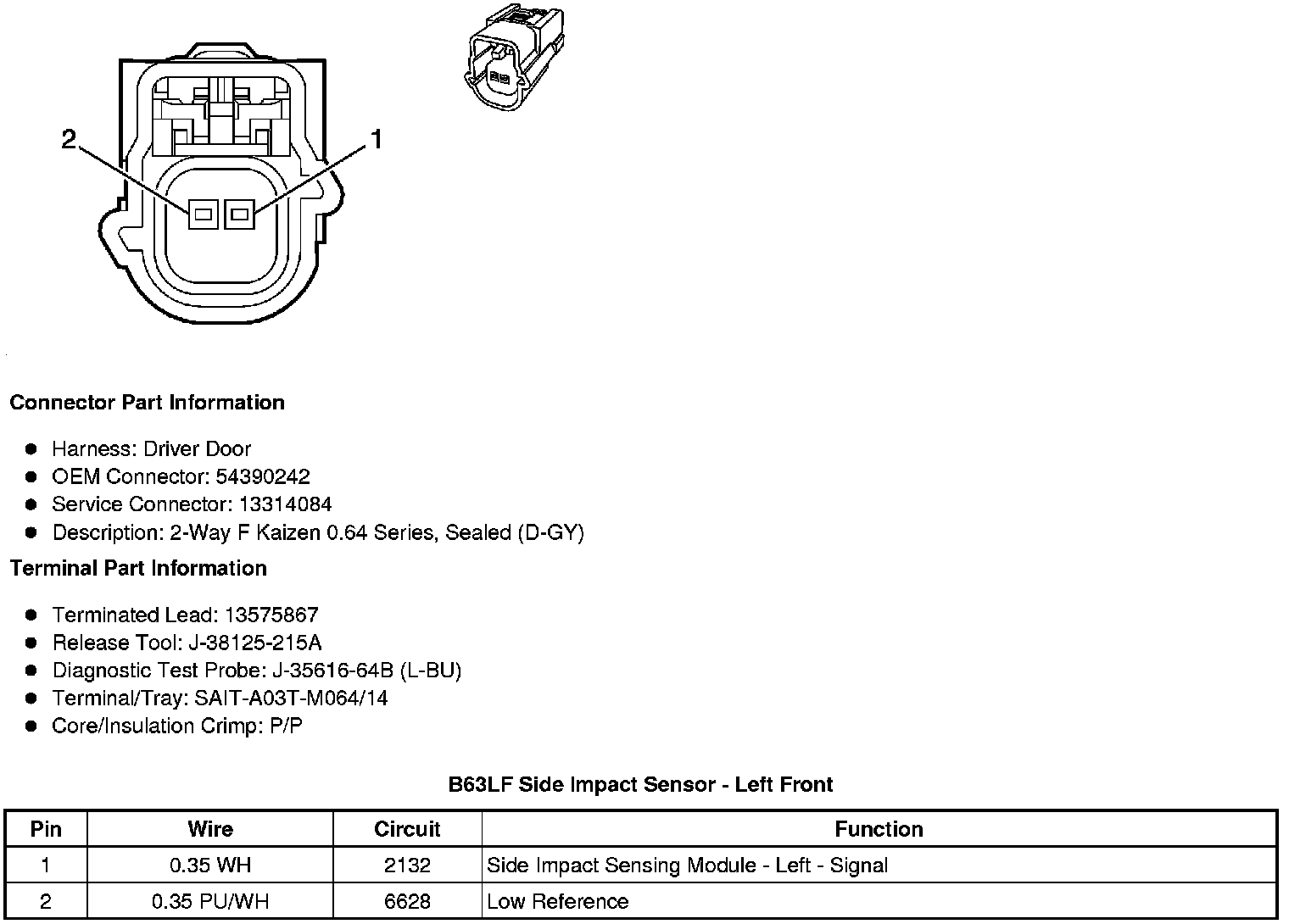

B63LF Side Impact Sensor - Left Front
