Seat Heating Element - Driver Back (KA1 or SPO Accessory) E14A
Seat Heating Element - Driver Back (KA1 or SPO Accessory) E14A
Component Connector End Views

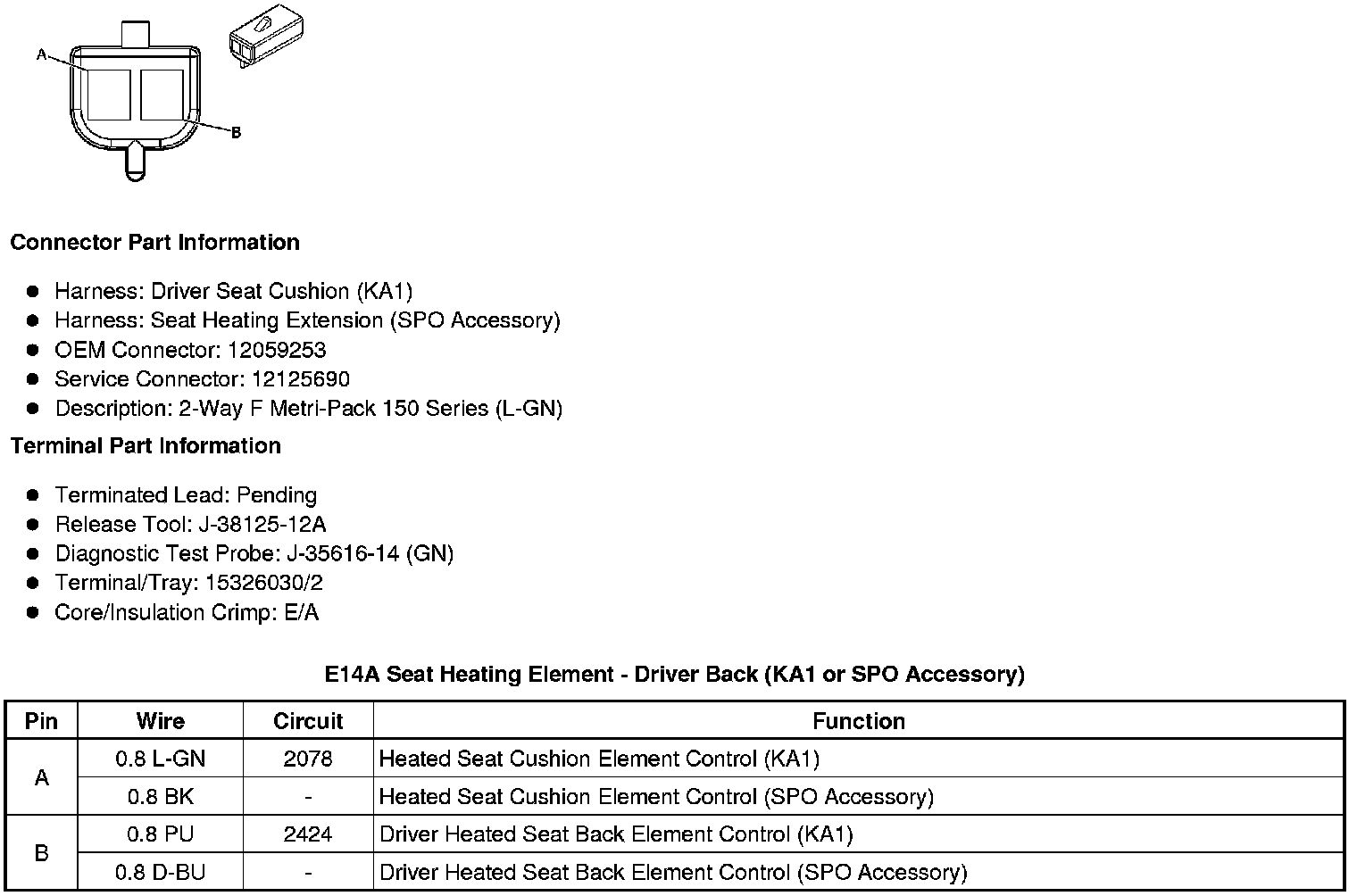

E14A Seat Heating Element - Driver Back (KA1 or SPO Accessory)
