Seat Heating Control Module X3 (KA1 without LTZ or SLT) K29
Seat Heating Control Module X3 (KA1 without LTZ or SLT) K29

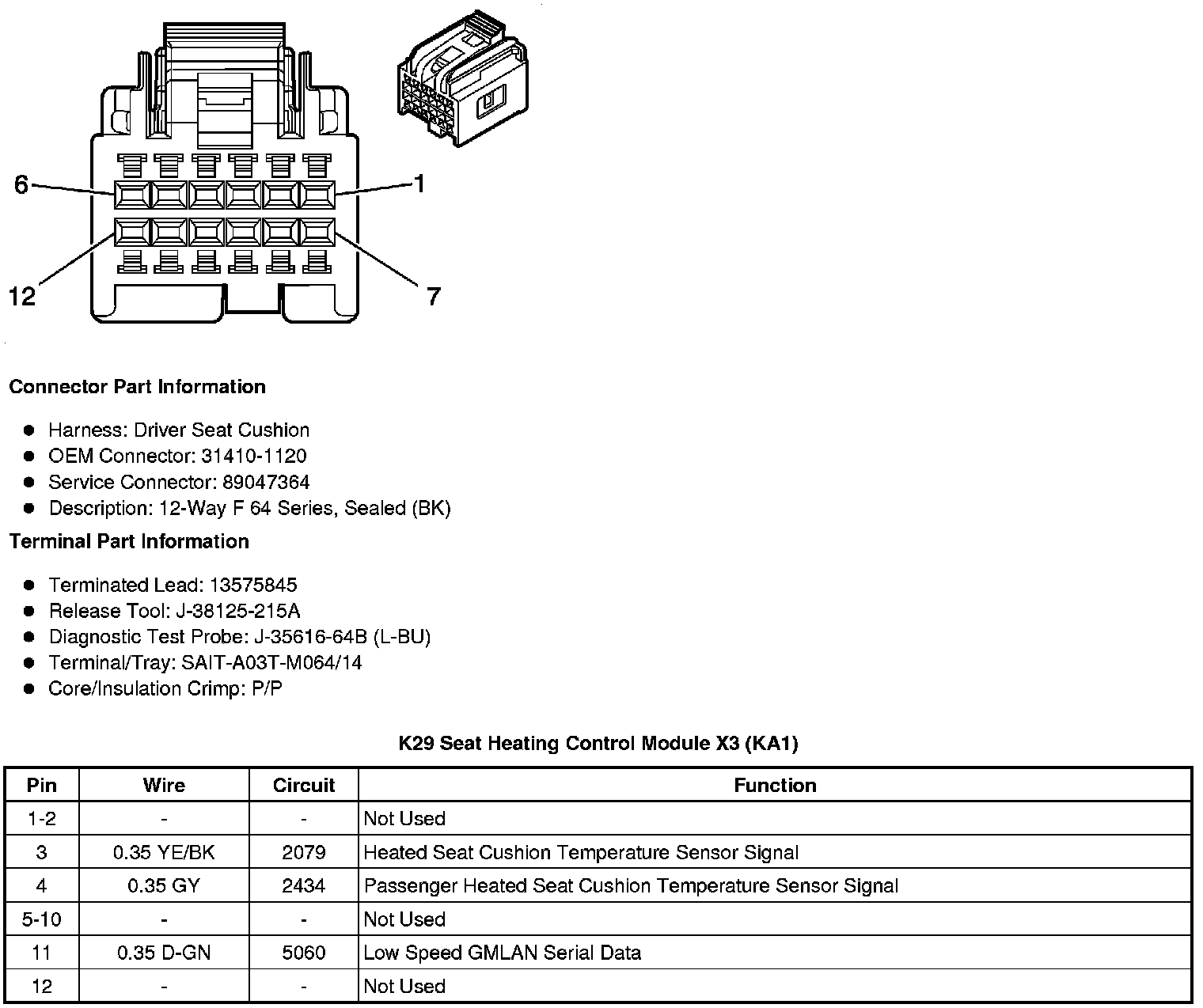

Component Connector End Views
K29 Seat Heating
Control Module
X3 (KA1 without LTZ or SLT)
