Clockspring Assembly / Spiral Cable, Air Bag




Component Connector End Views

X85 Steering Wheel Air Bag Coil X1

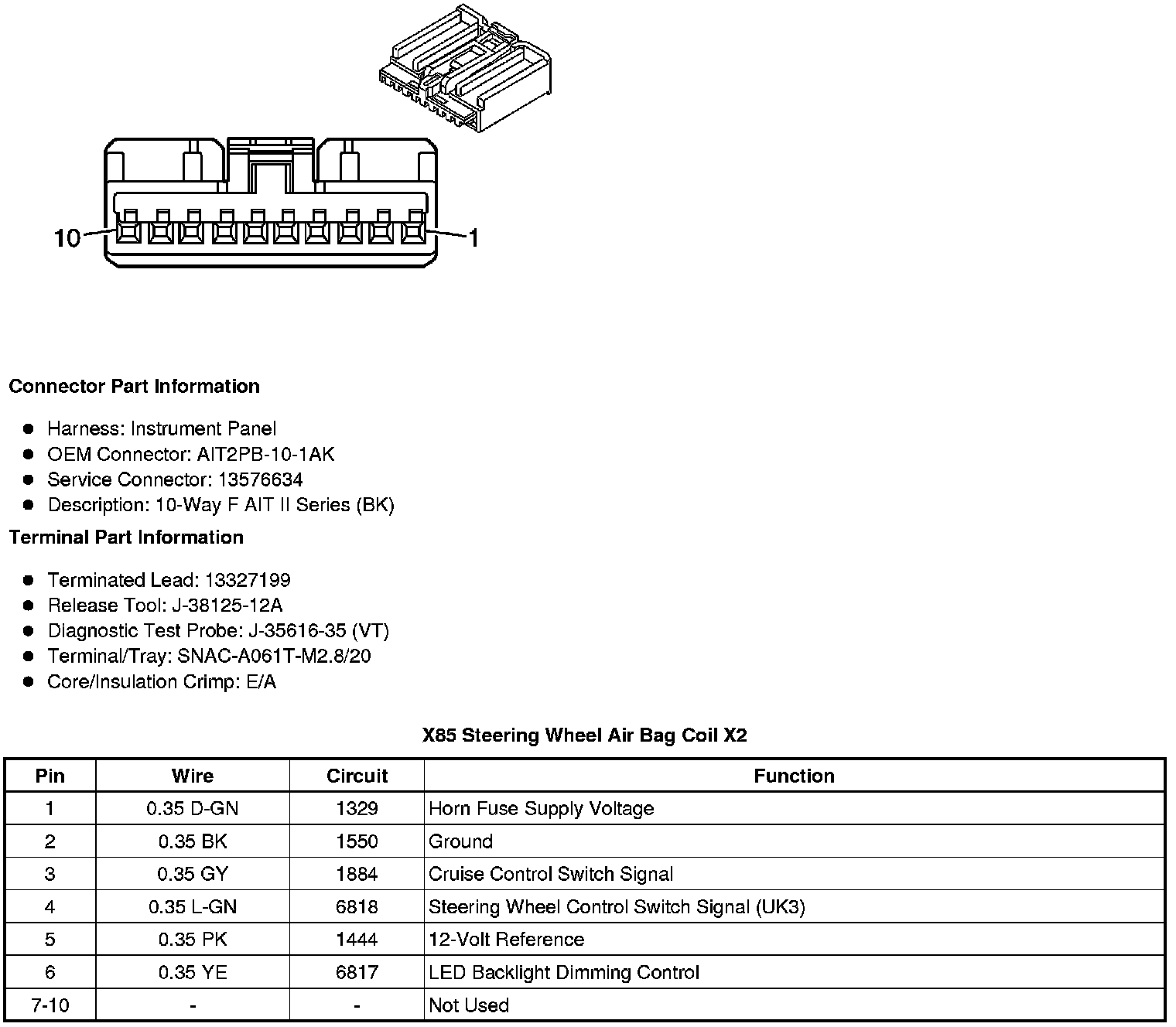

X85 Steering Wheel Air Bag Coil X2

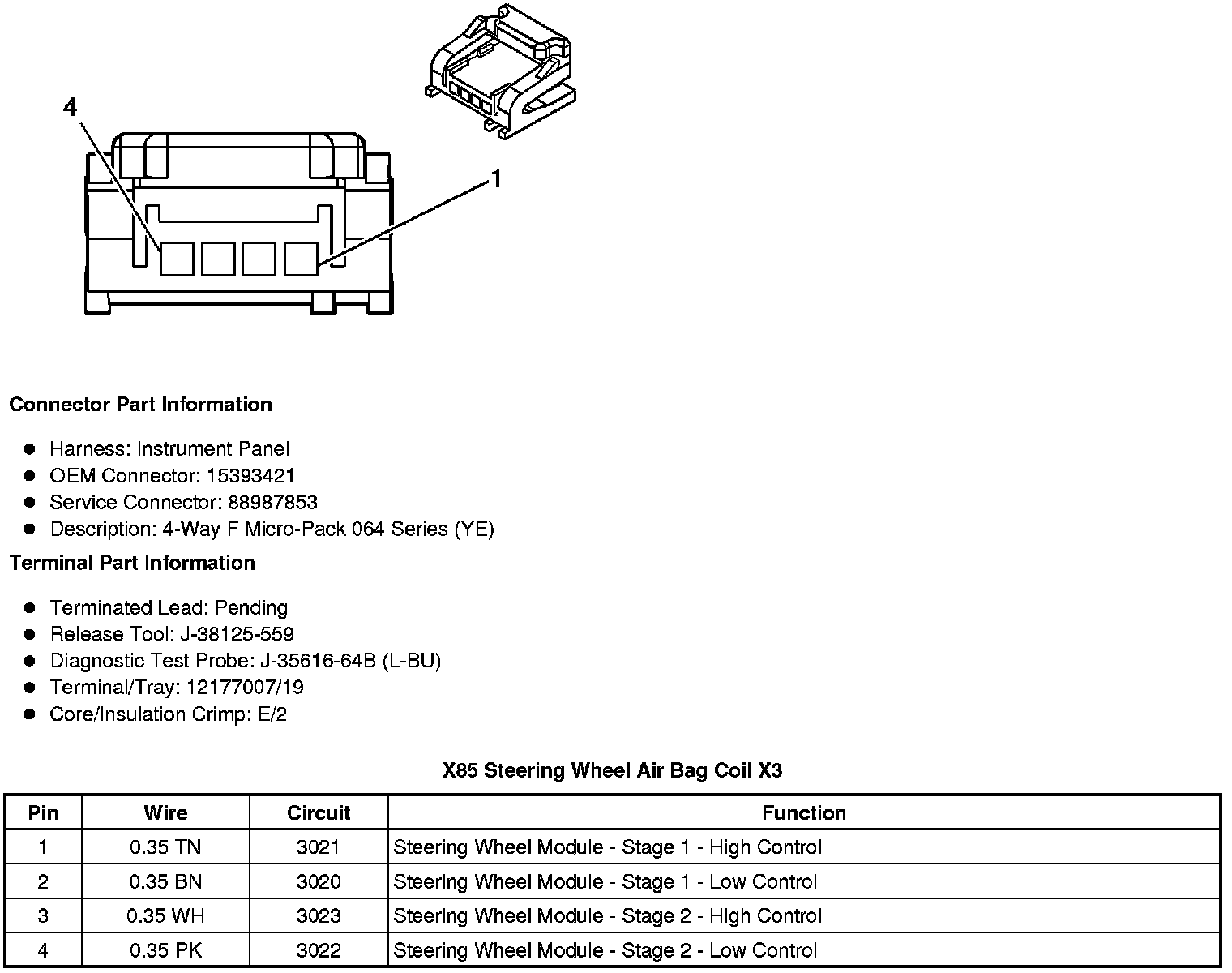

X85 Steering Wheel Air Bag Coil X3





X85 Steering Wheel Air Bag Coil X4





X85 Steering Wheel Air Bag Coil X5
