Canister Purge Solenoid




Component Connector End Views

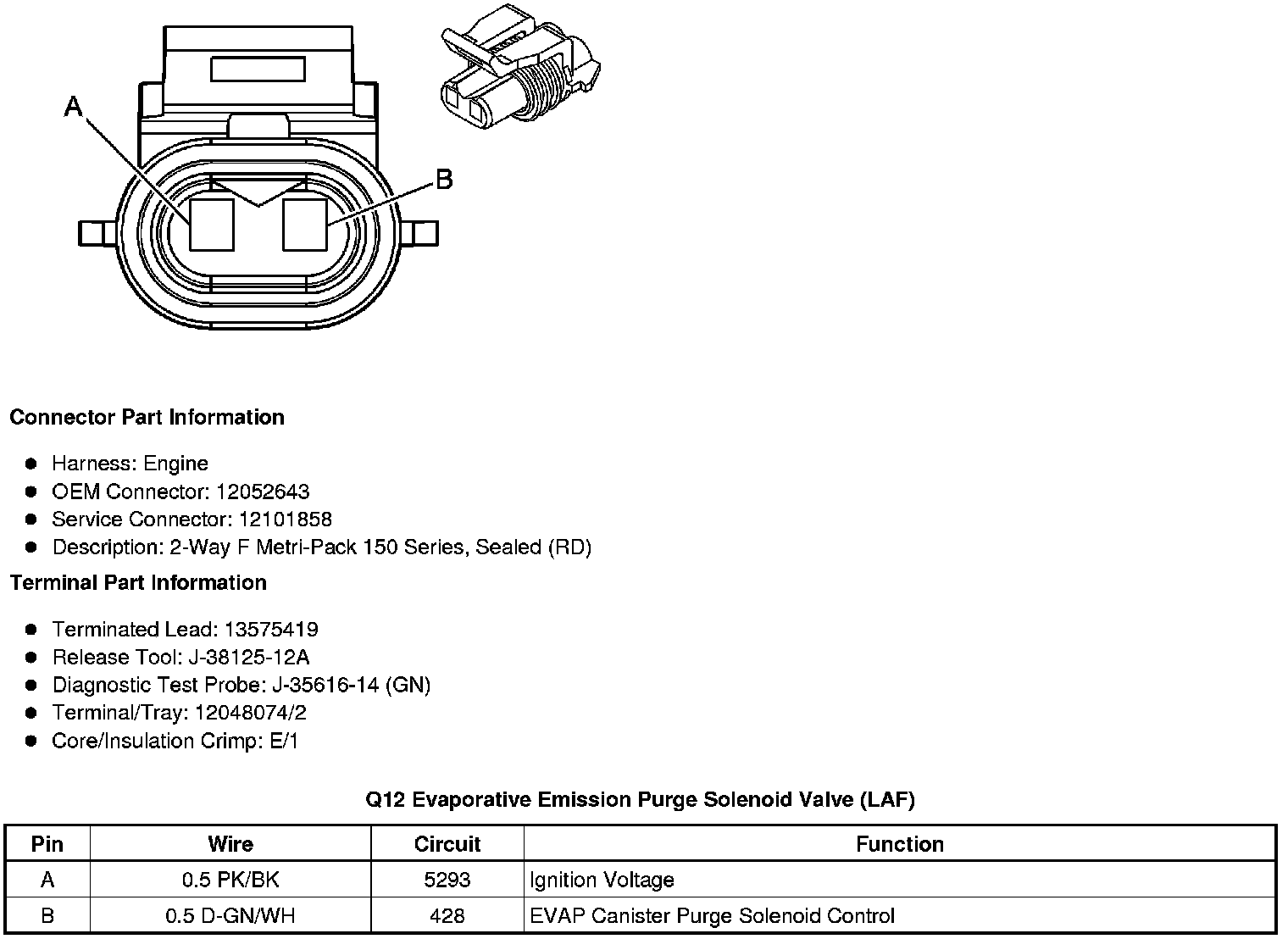

Q12 Evaporative Emission Purge Solenoid Valve (LAF)

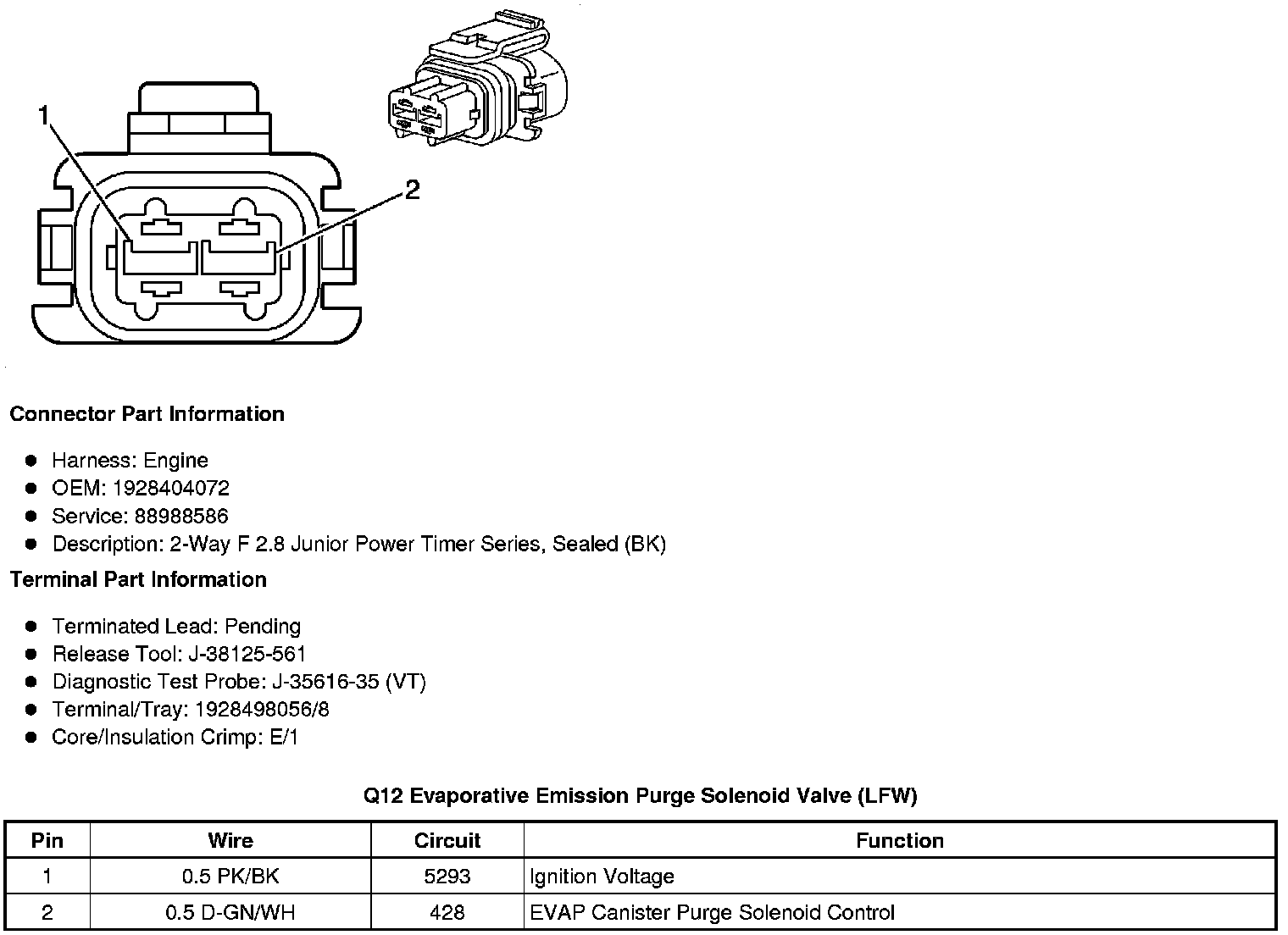

Q12 Evaporative Emission Purge Solenoid Valve (LFW)
