68. Clutch Pilot Bearing Installation




Clutch Pilot Bearing Installation

Tools Required

J 45949 Pilot Bearing and Flywheel Locator Installer

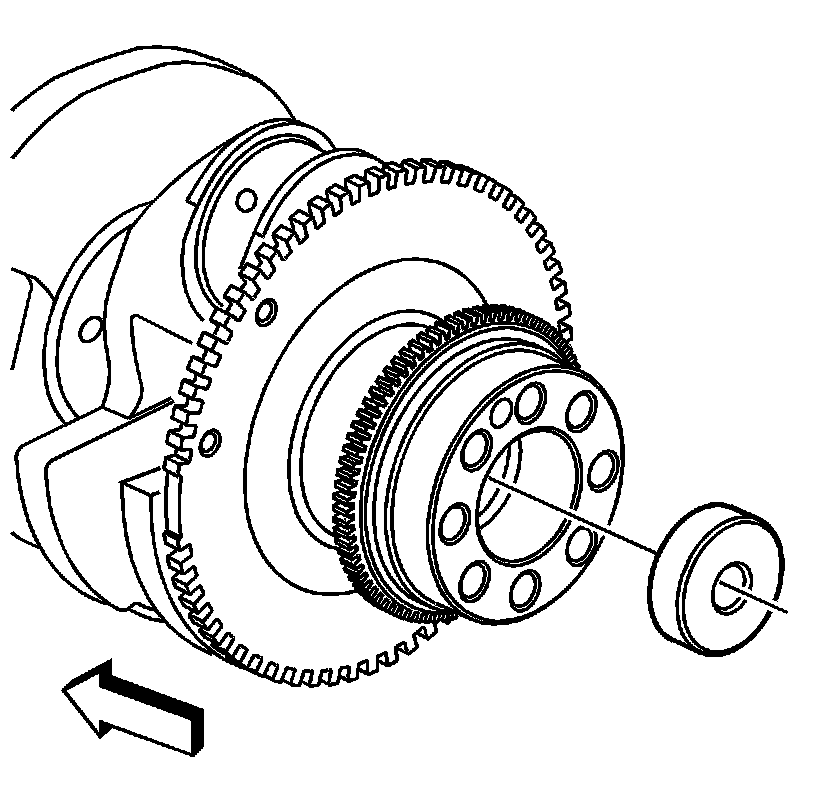

1. Install J 45949 into the pilot bearing.
2. Install the pilot bearing into the crankshaft.
3. Remove J 45949 .
