100. Drive Belt Idler Pulley Installation

Drive Belt Idler Pulley Installation

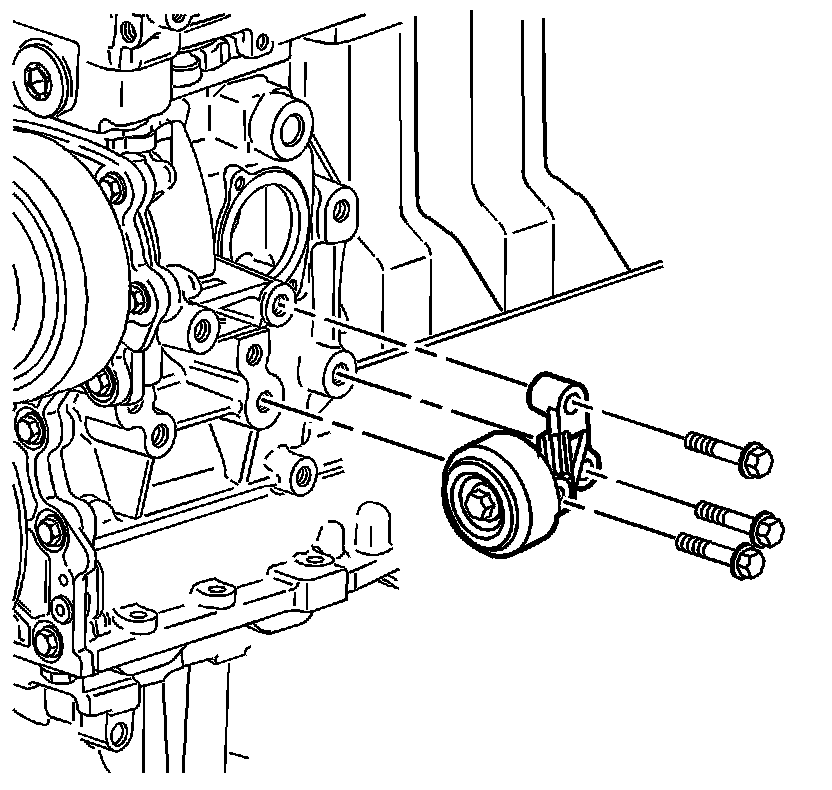

1. Install the drive belt idler pulley.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the drive belt idler pulley bolts. Tighten the drive belt idler pulley bolts to 50 Nm (37 lb ft).
