Fog Lamp - Left Front (T96)
Fog Lamp - Left Front (T96)

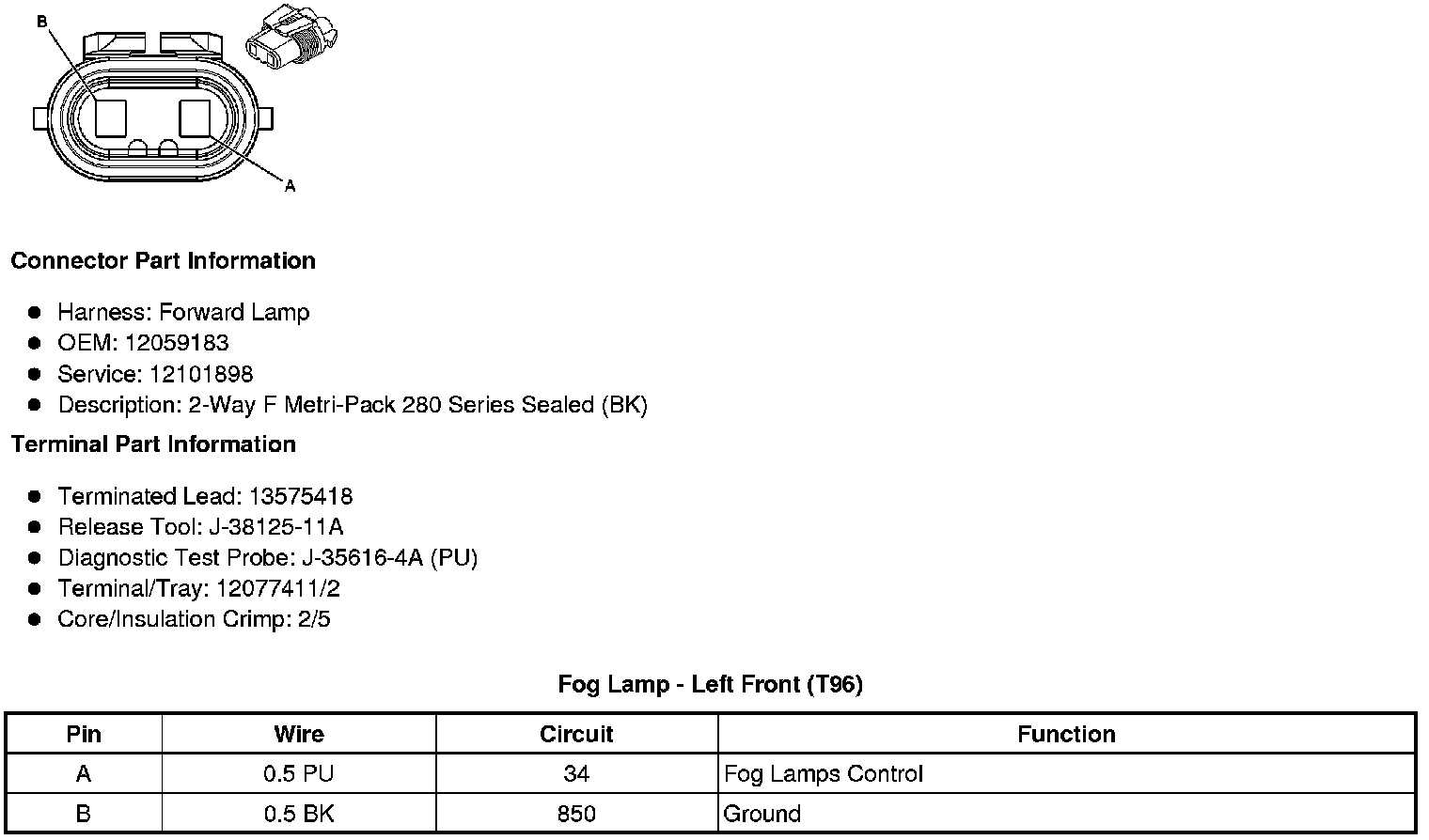

Component Connector End Views
Fog Lamp - Left Front (T96)
