Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2

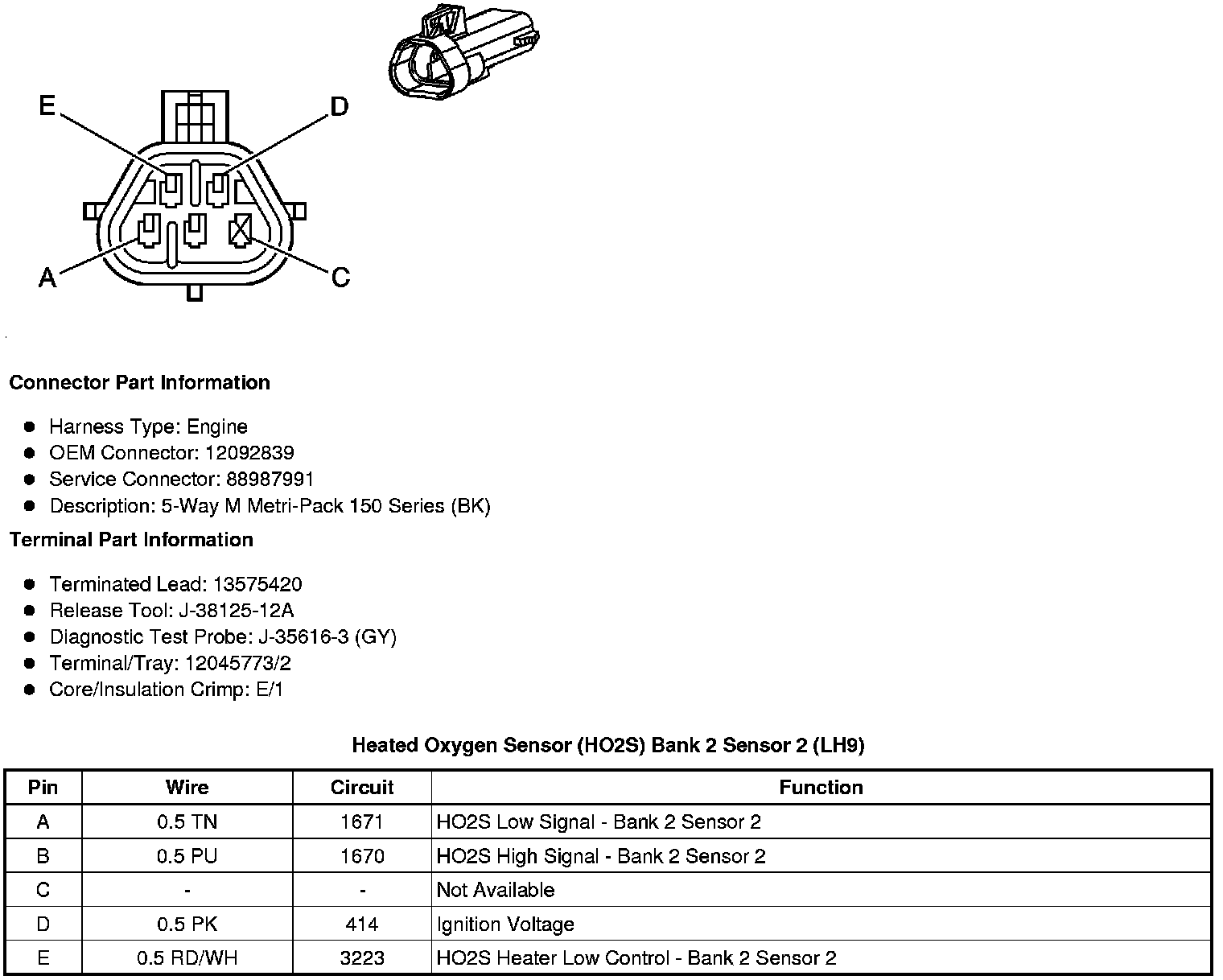

Component Connector End Views
Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 (LH9)
