X405
X405

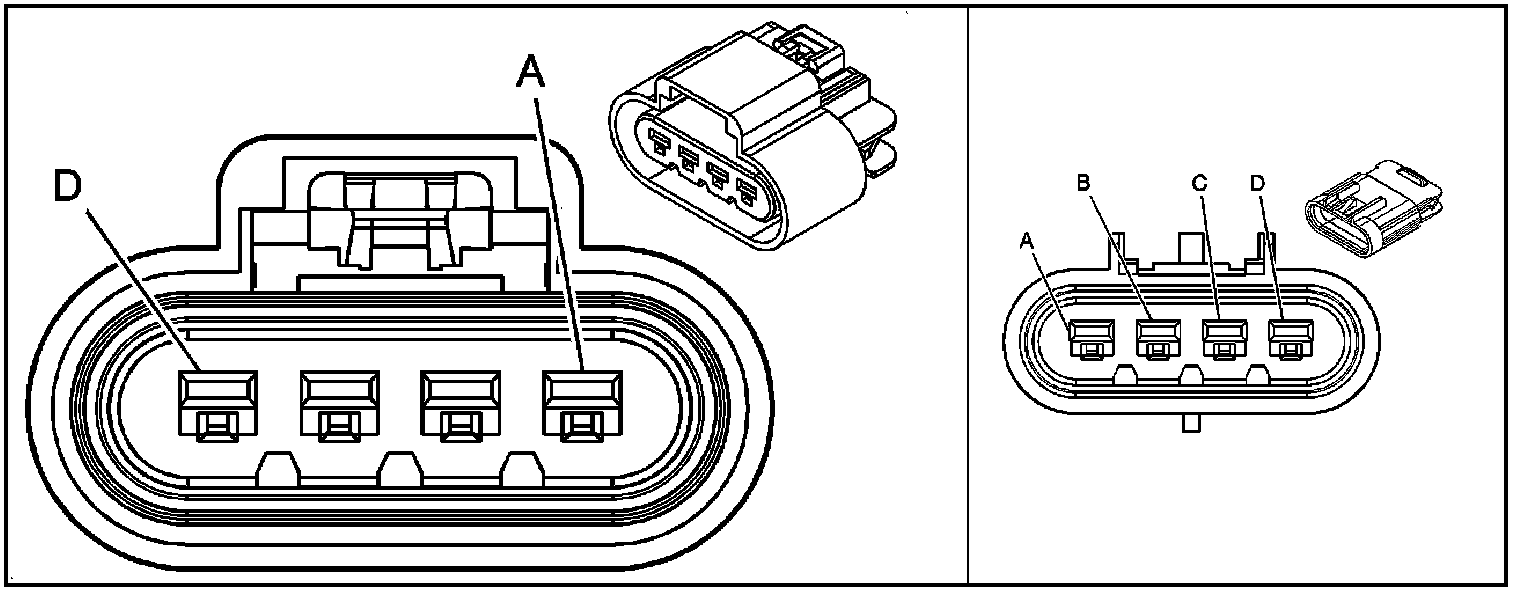

Inline Harness Connector End Views

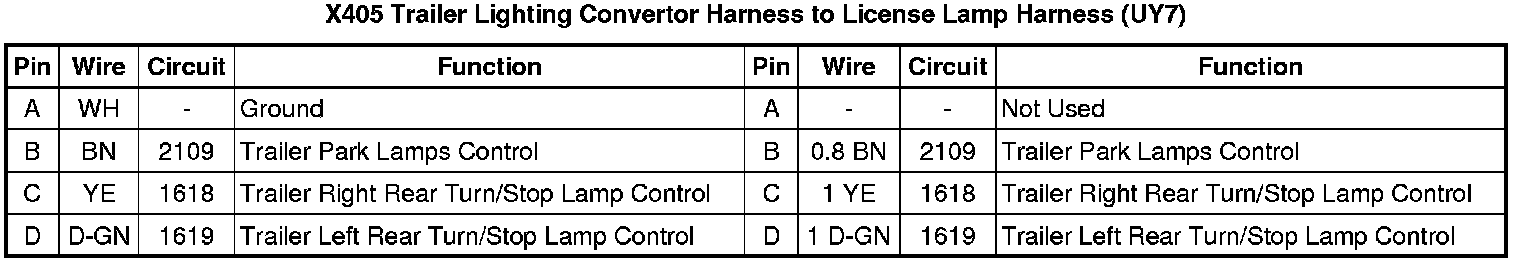

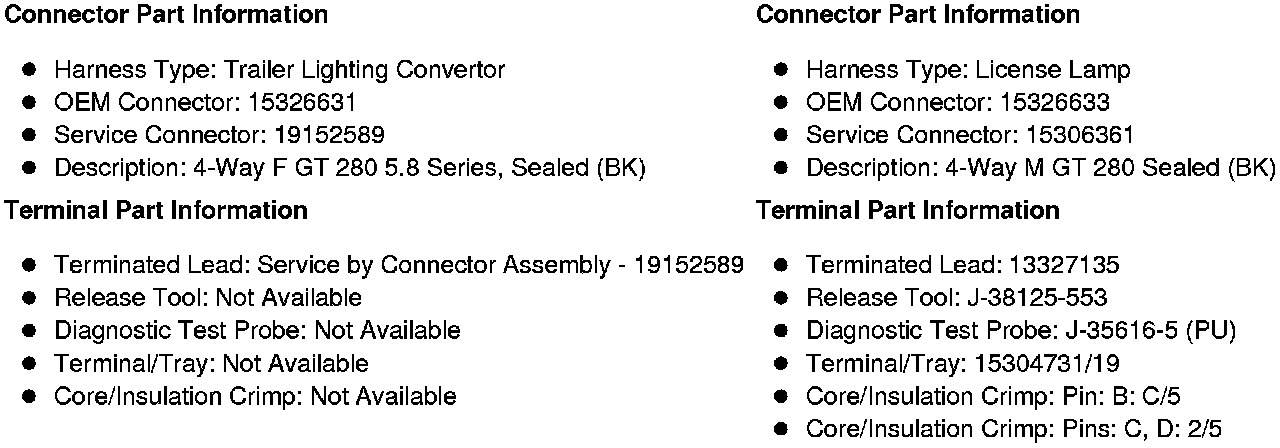

X405 Trailer Lighting Convertor Harness to License Lamp Harness (UY7)
