X270

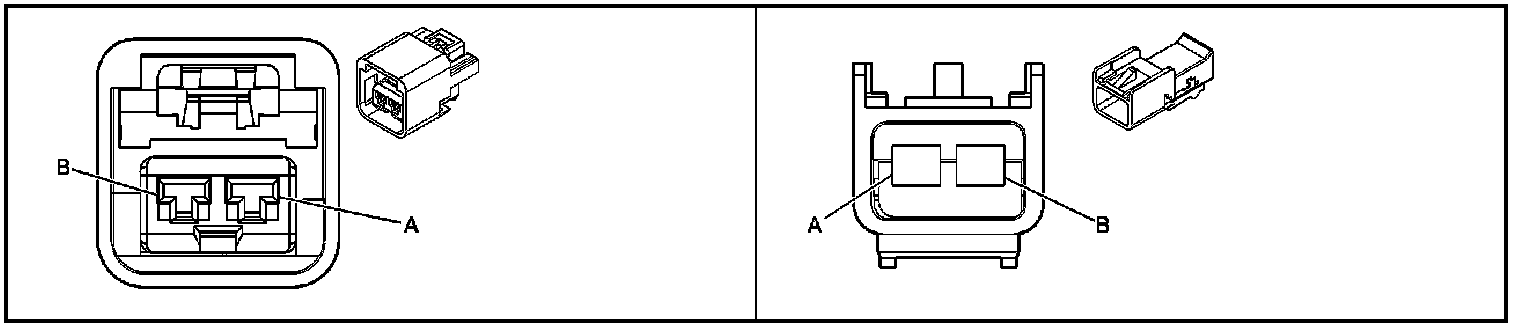

Inline Harness Connector End Views

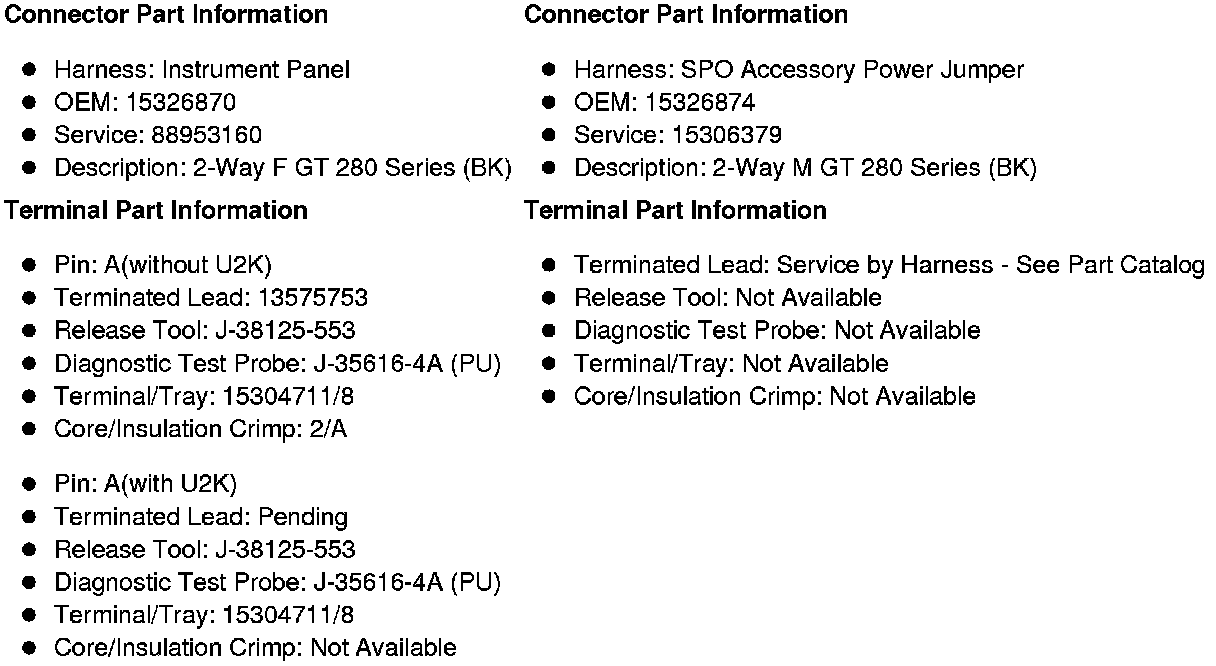

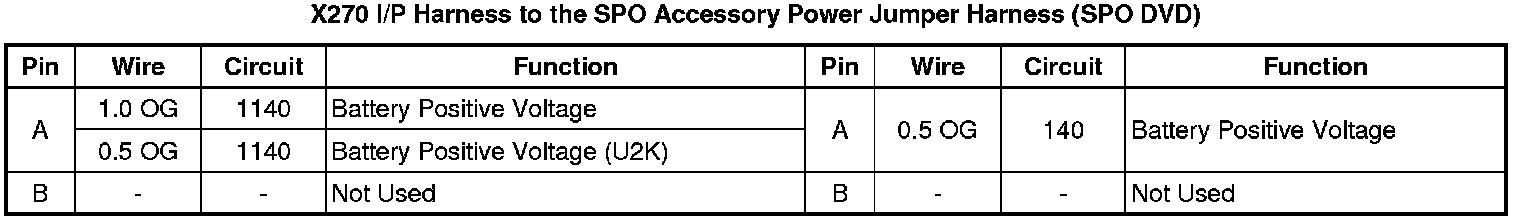

X270 I/P Harness to the SPO Accessory Power Jumper Harness (SPO DVD)
