Auxiliary Power Outlet
>>
Accessory Power Outlet - I/P 2
Accessory Power Outlet - I/P 2

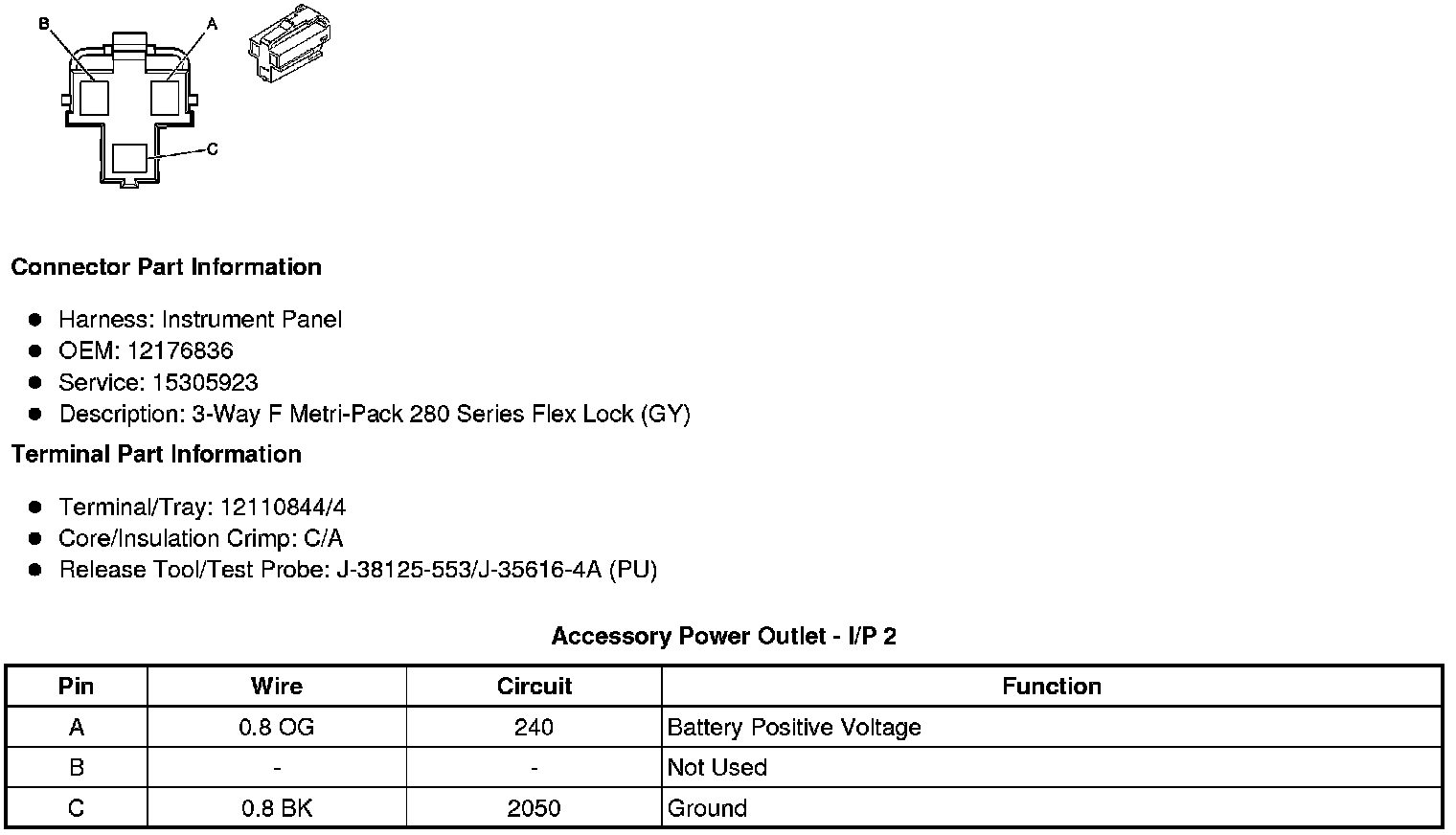

Component Connector End Views
Accessory Power Outlet - I/P 2
