Battery Cable Harness Routing

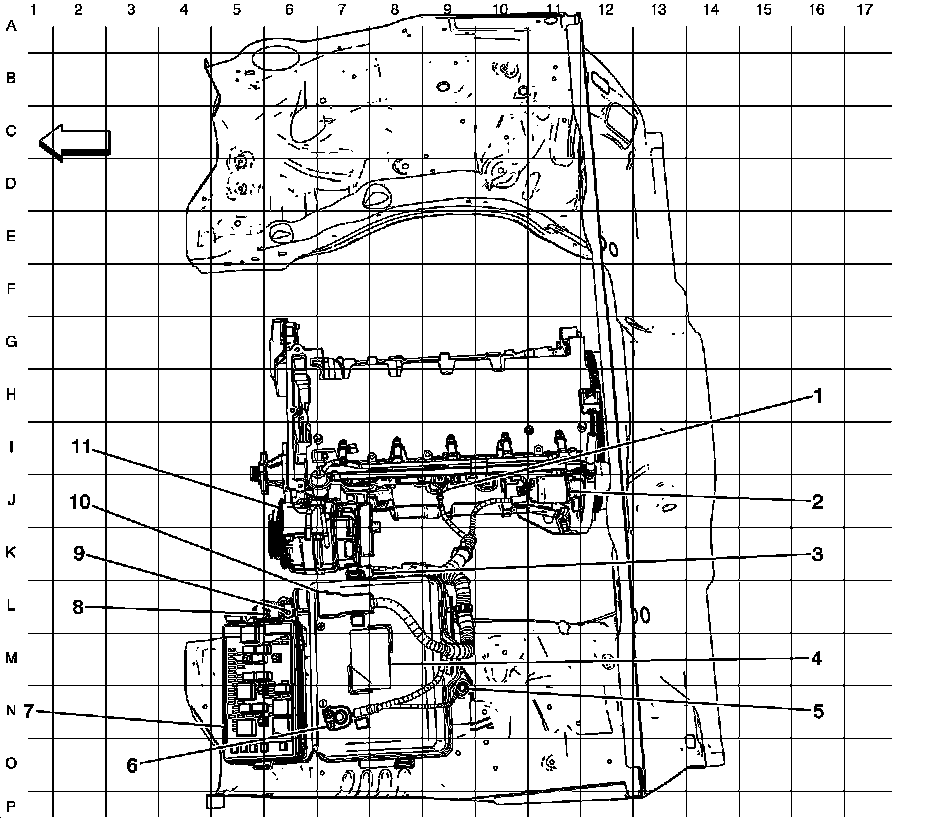

Harness Routing Views

Battery Cable Harness Routing




1 - G104
2 - Starter
3 - Generator X2
4 - Battery
5 - G100
6 - Battery Negative Terminal
7 - Fuse Block - Underhood
8 - Ring Terminal Battery
9 - Ring Terminal Generator
10 - Battery Positive Terminal
11 - Generator
