Seat Occupant Sensor: Locations

Passenger Compartment/Roof Component Views

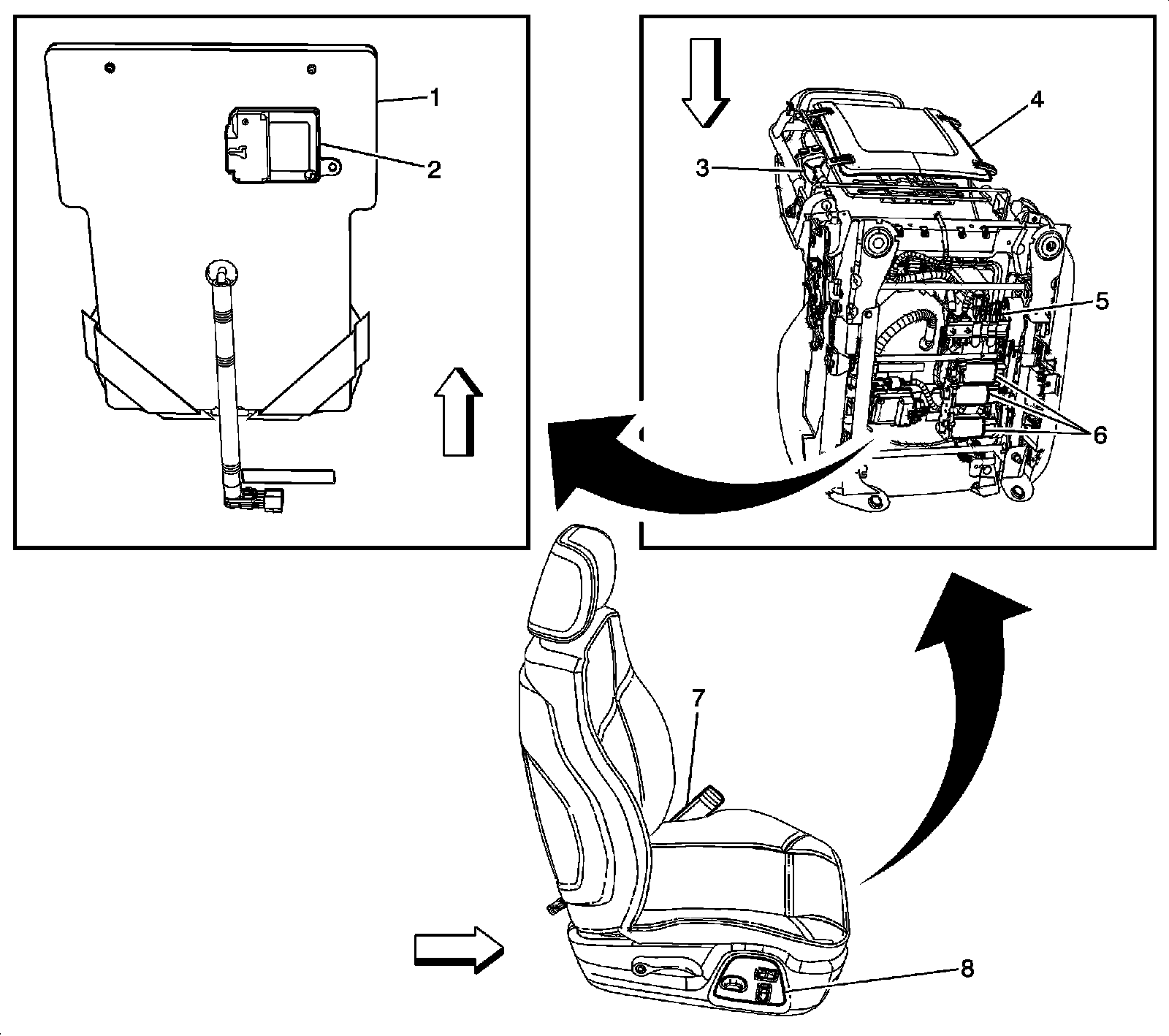

Passenger Seat Components - 2 of 2




1 - Inflatable Restraint Passenger Presence Sensor
2 - Inflatable Restraint Passenger Presence System (PPS) Module
3 - Seat Lumbar Motor - Passenger (AG2)
4 - Heated Seat Element - Passenger Back (KA1)
5 - X315 (AG2)
6 - Seat Adjuster Motor Assembly - Passenger (AG2)
7 - Seat Belt Buckle - Passenger
8 - Seat Adjuster Switch - Passenger (AG2)
