Seat Occupant Sensor
>>
Diagrams
>>
Inflatable Restraint Passenger Presence System (PPS) Sensor
Inflatable Restraint Passenger Presence System (PPS) Sensor

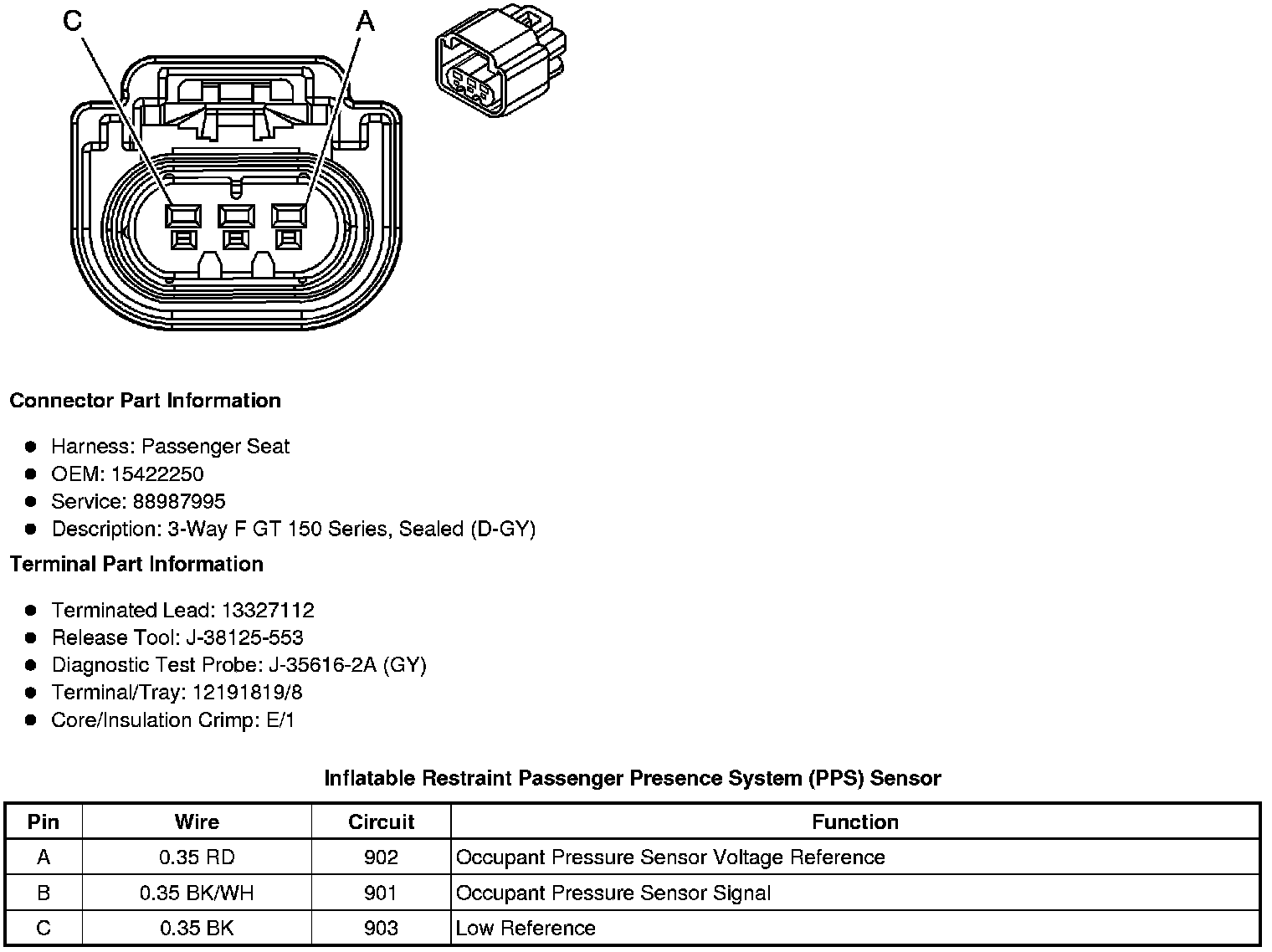

Component Connector End Views
Inflatable Restraint Passenger Presence System (PPS) Sensor
