Inflatable Restraint Passenger Presence System (PPS) Module (AL0)

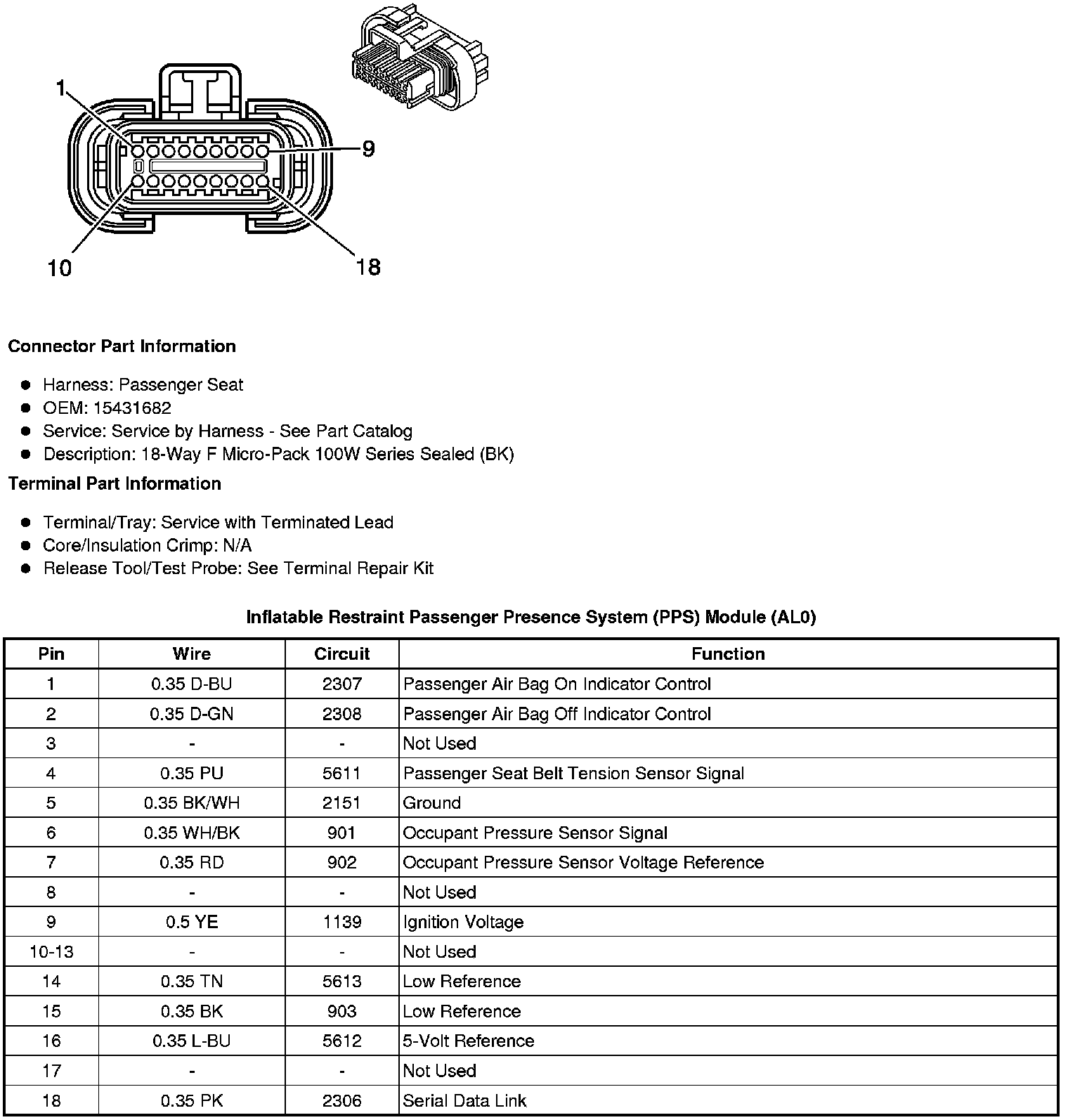

Component Connector End Views

Inflatable Restraint Passenger Presence System (PPS) Module (AL0)
