Home >> GMC >> 2011 >> Canyon 2WD L4-2.9L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Wheel Speed Sensor >> Locations >> Front Wheel Knuckle Components

Front Wheel Knuckle Components




Wheels/Vehicle Underbody Component Views

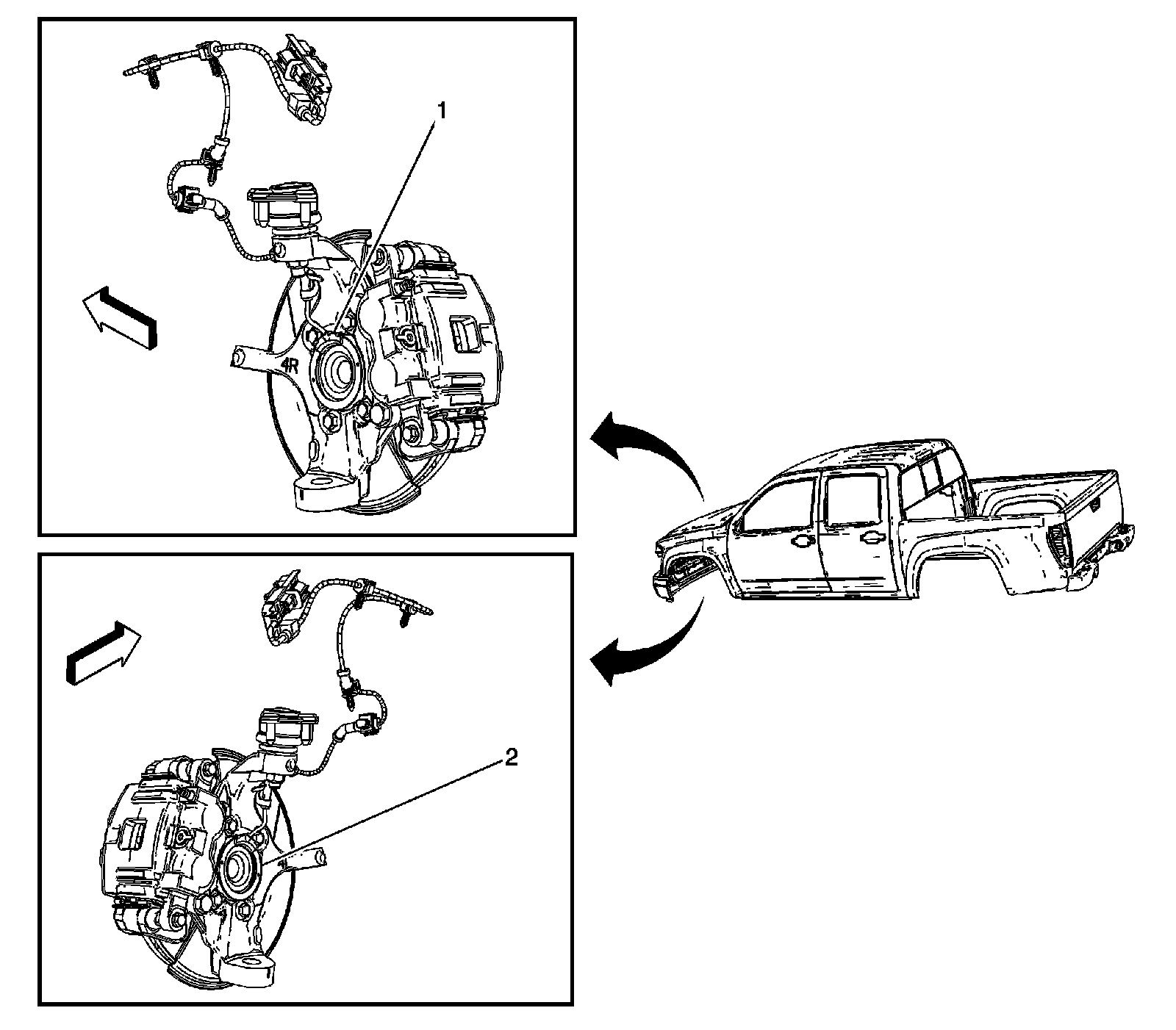

Front Wheel Knuckle Components




1 - Wheel Speed Sensor (WSS) - Right Front
2 - Wheel Speed Sensor (WSS) - Left Front
