Roof Components (ASF)

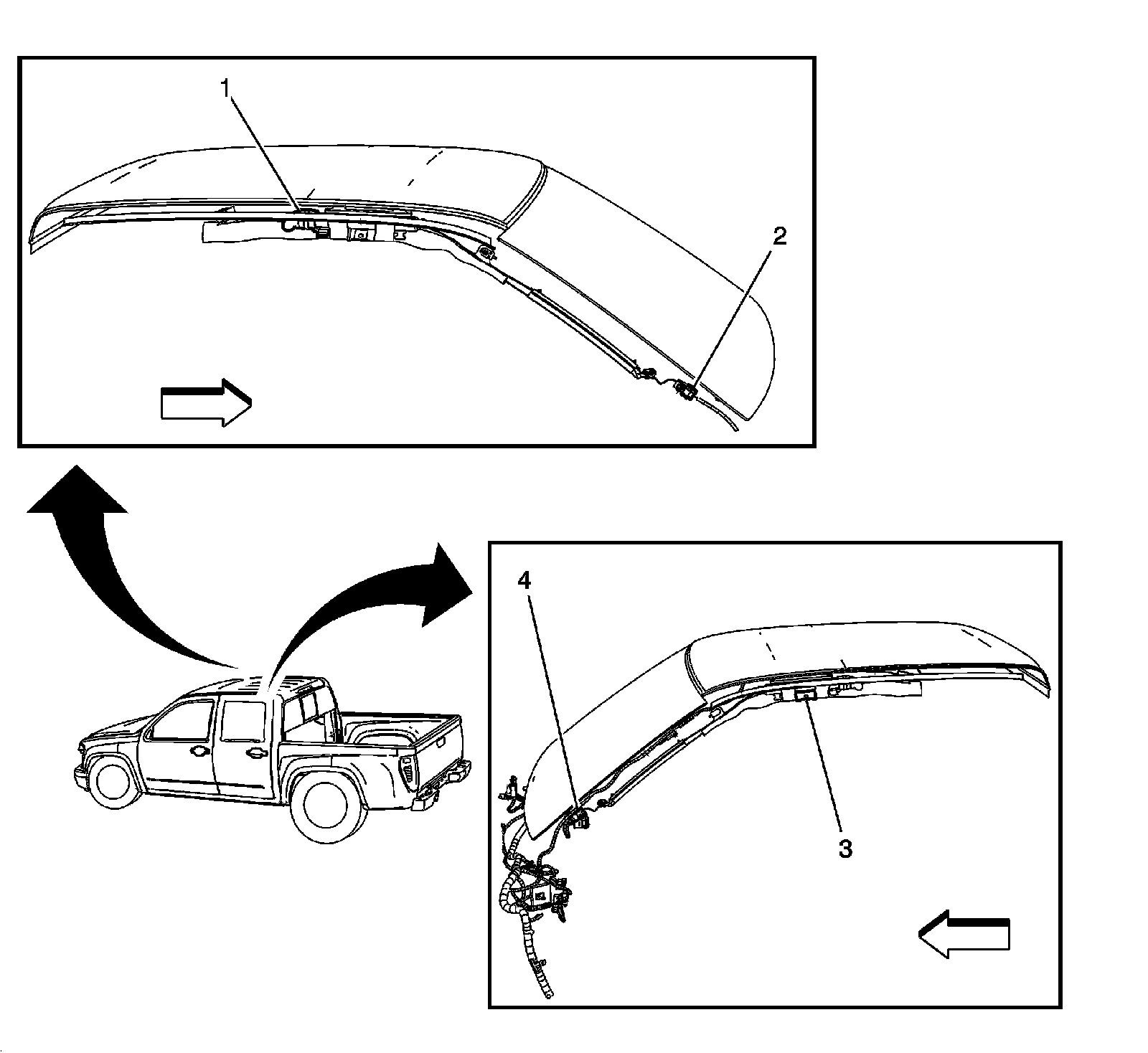

Passenger Compartment/Roof Component Views

Roof Components (ASF)




1 - Inflatable Restraint Roof Rail Module - Right
2 - Inflatable Restraint Roof Rail Module - Right Connector
3 - Inflatable Restraint Roof Rail Module - Left
4 - Inflatable Restraint Roof Rail Module - Left Connector
