Inflatable Restraint Roof Rail Module - Left (ASF)

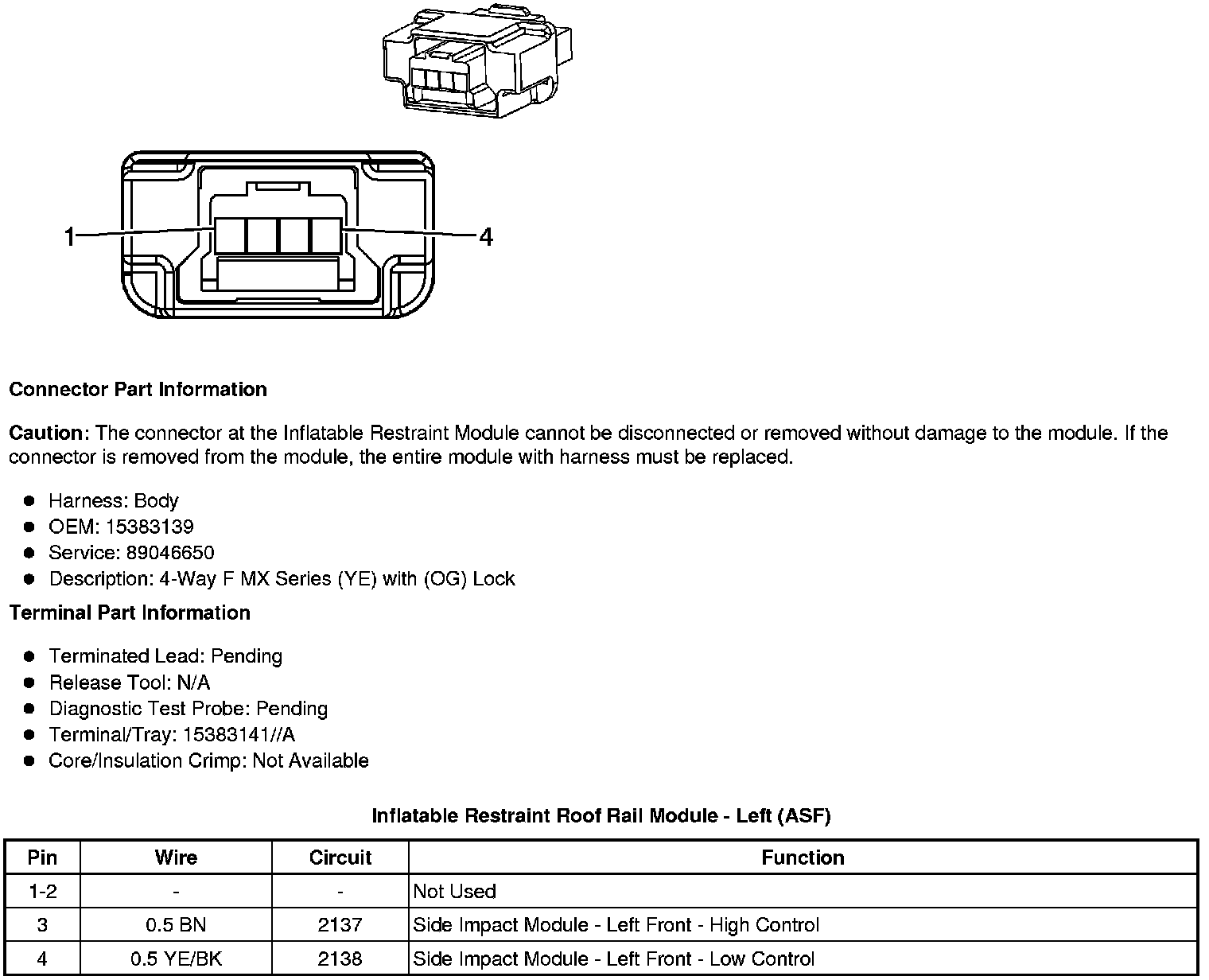

Component Connector End Views

Inflatable Restraint Roof Rail Module - Left (ASF)
