Clutch Pedal Position Sensor / Switch: Diagrams

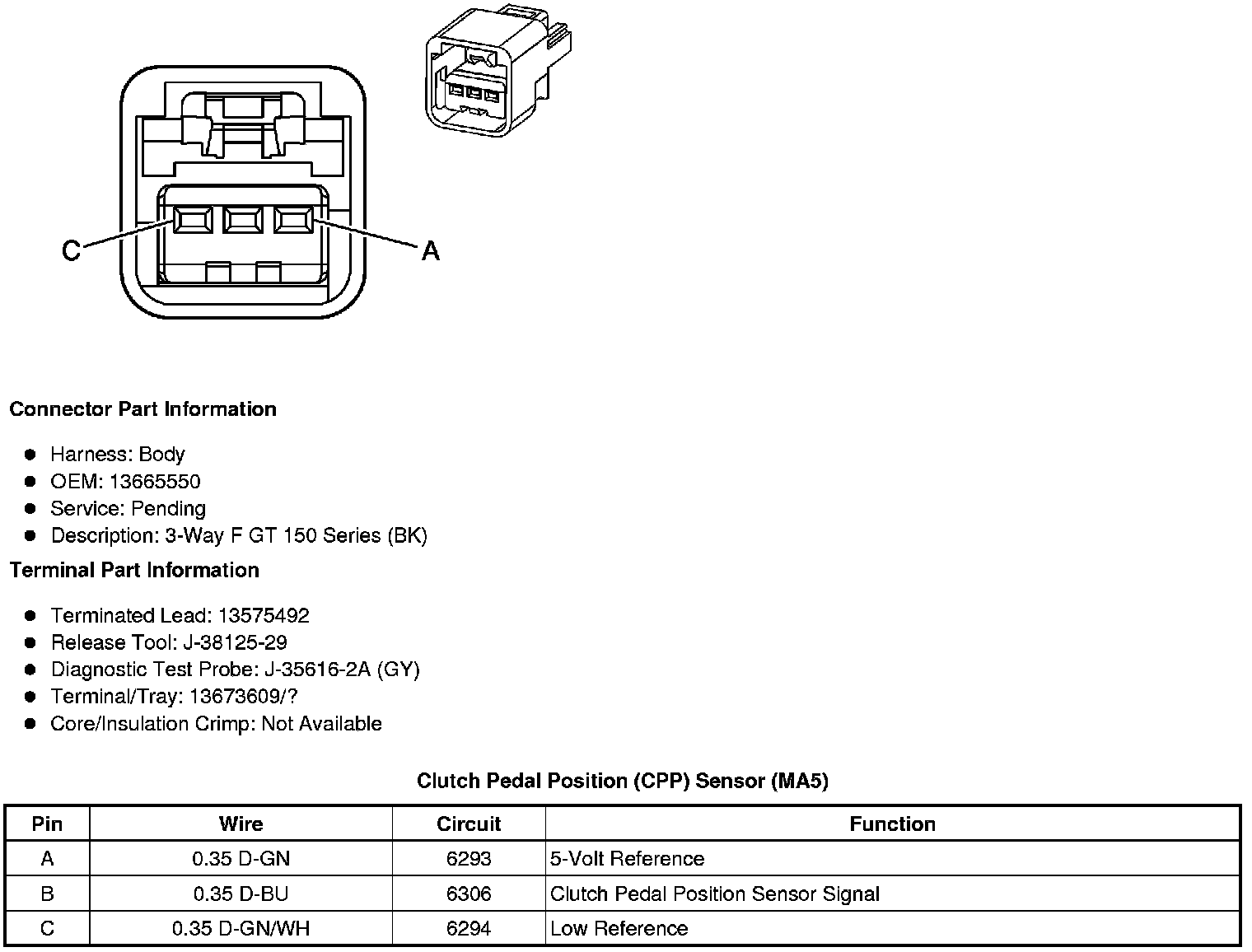

Component Connector End Views

Clutch Pedal Position (CPP) Sensor (MA5)
