17. Camshaft Position Actuator Solenoid Valve Removal

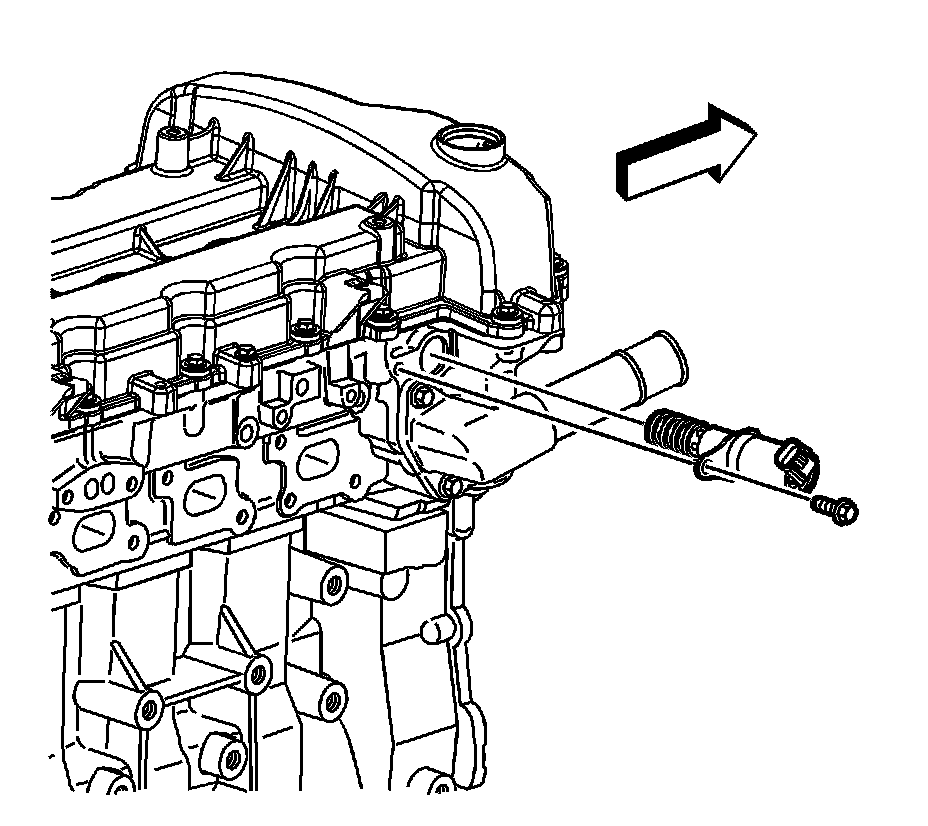

Camshaft Position Actuator Solenoid Valve Removal




1. Remove the camshaft position actuator valve bolt.
2. Remove the camshaft position actuator valve.
