Driver Door Harness Routing




Harness Routing Views

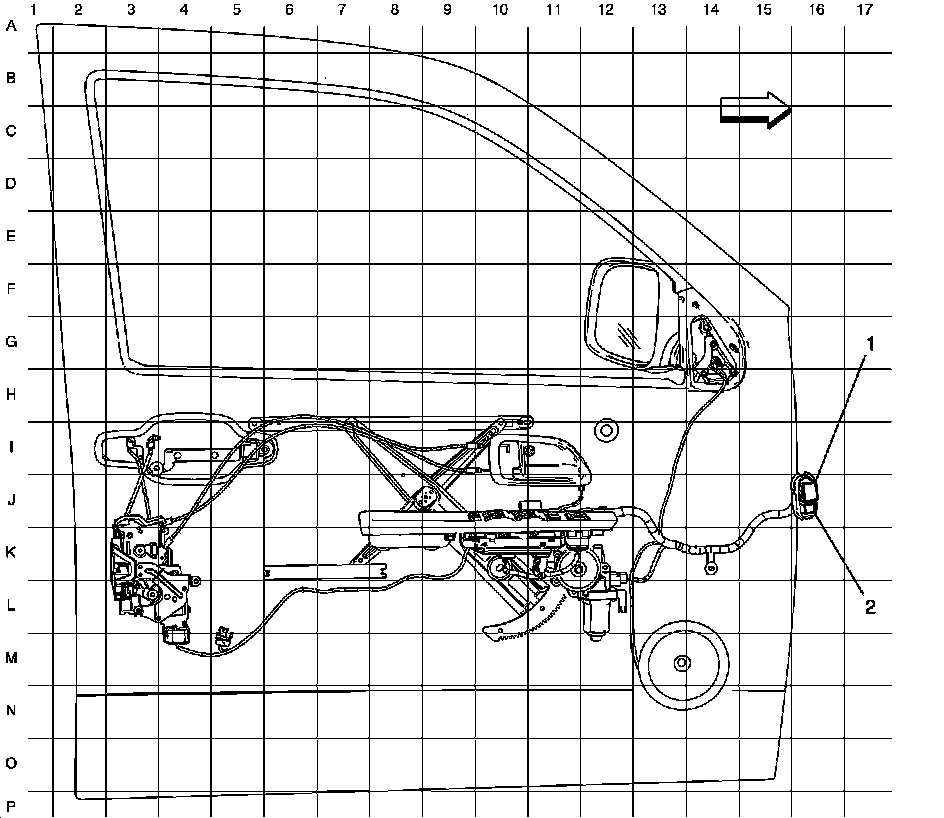

Driver Door Harness Routing




1 - X500
2 - X501 (ZQ6 or UE1 without ZQ6))
