Ground Views




Ground Views

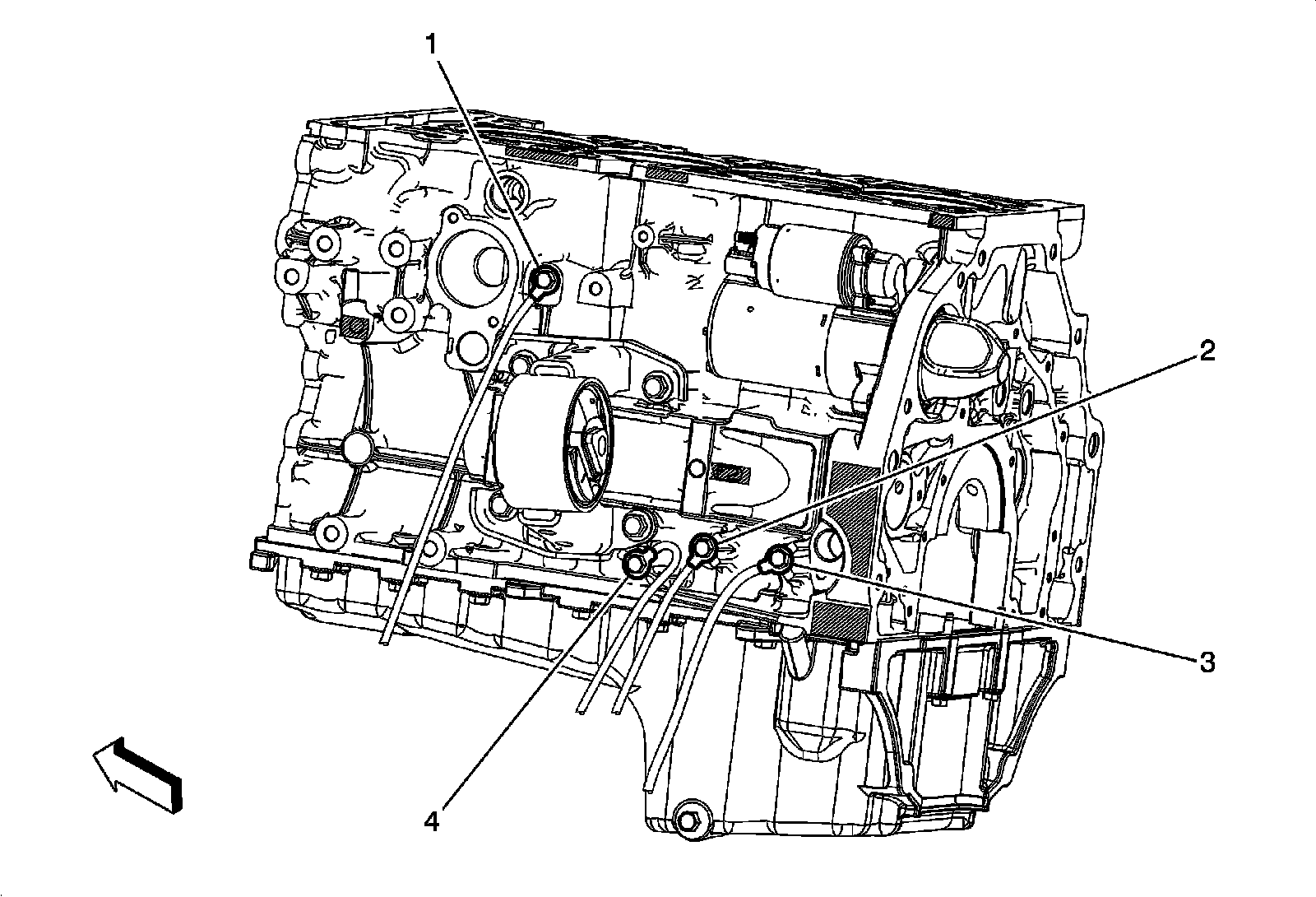

Grounds G100, G101, G102, and G103 (LLV)




1 - G100
2 - G103
3 - G102
4 - G101
