Automatic Transmission/Transaxle




Park - Engine Running









Overdrive Range, First Gear









Overdrive Range, Second Gear









Overdrive Range, Third Gear









Overdrive Range, Fourth Gear - TCC Applied

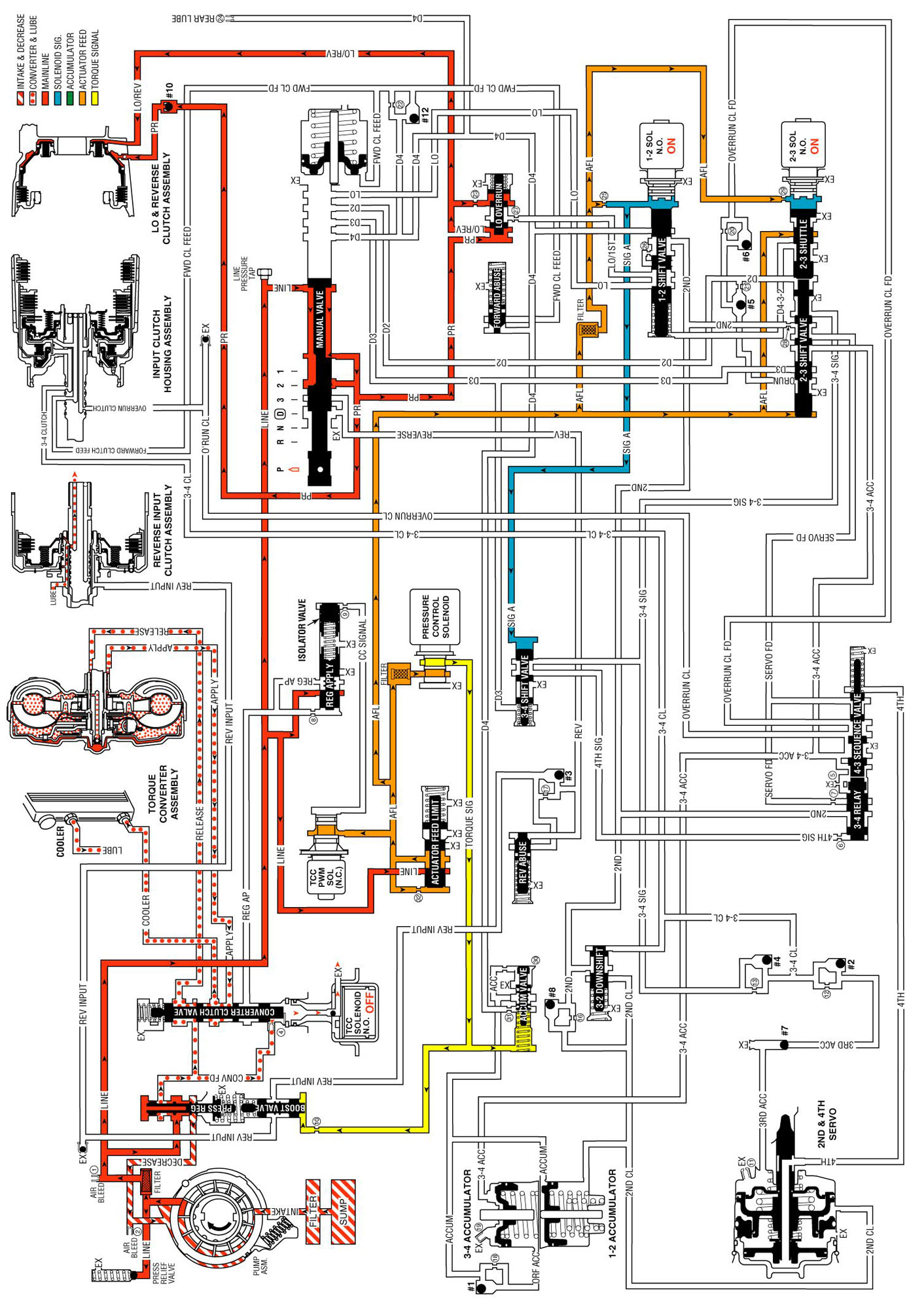

Overdrive Range, 4-3 Downshift

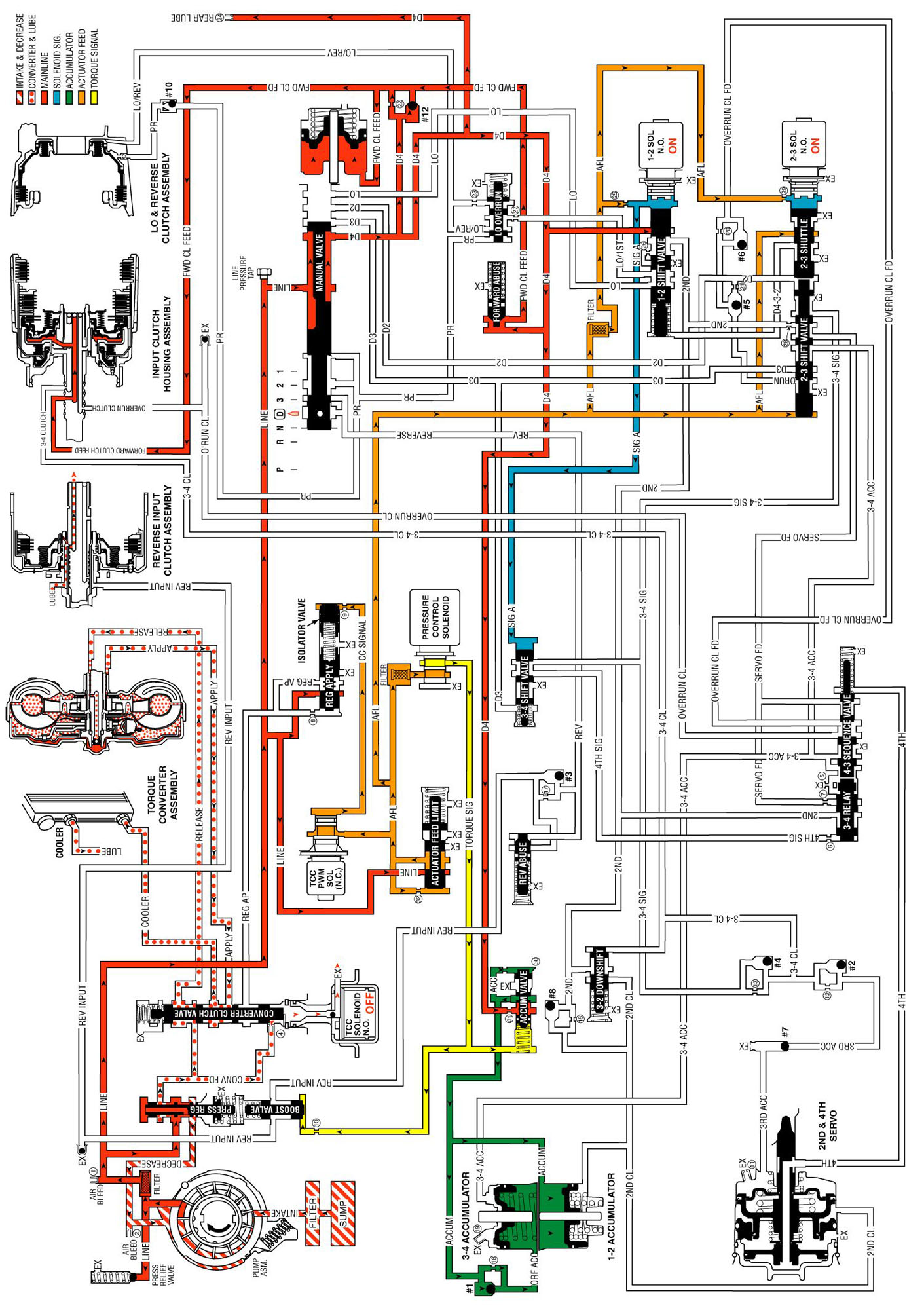

Reverse









Neutral - Engine Running









Overdrive Range, 3-2 Downshift









Manual Third Gear









Manual Second Gear









Manual First Gear
