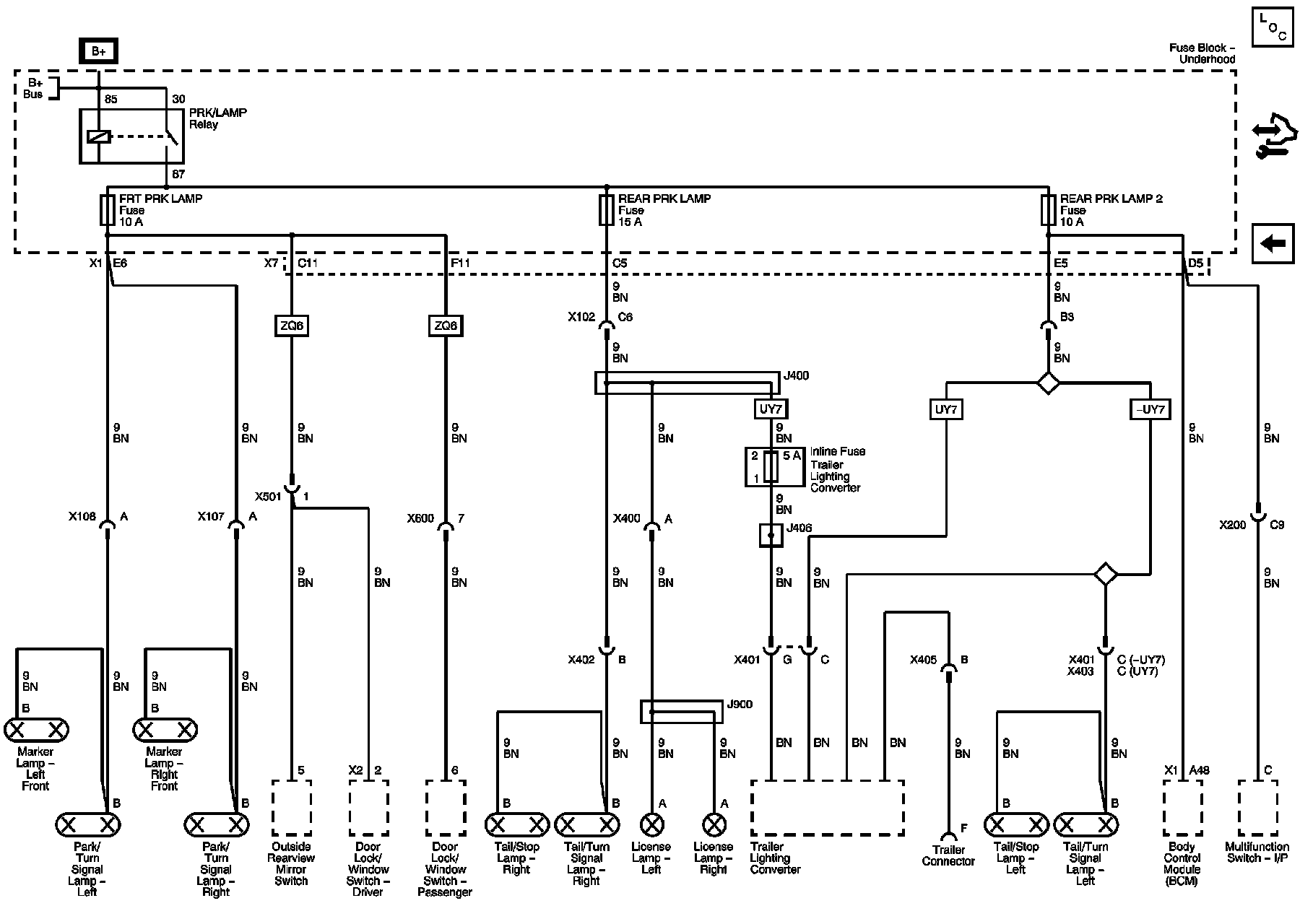

Home >> GMC >> 2011 >> Canyon 2WD L4-2.9L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Power Distribution Schematics >> Power Distribution Schematic 10
