Information Bus




Data Communication Schematics

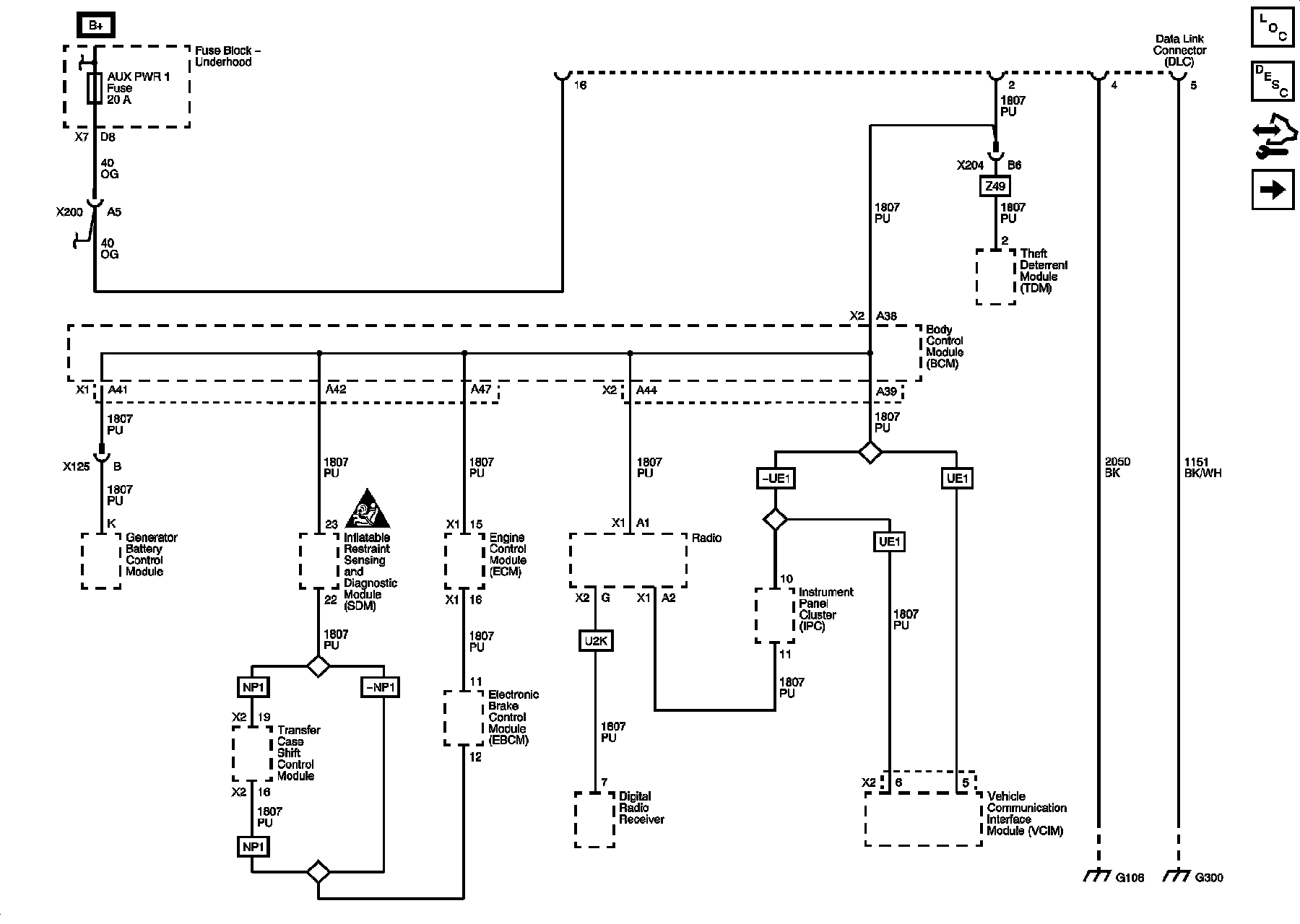

Class 2 Serial Data





High Speed GMLAN Serial Data
