Home >> GMC >> 2011 >> Canyon 2WD L4-2.9L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Locks

Locks




Door Lock/Indicator Schematics

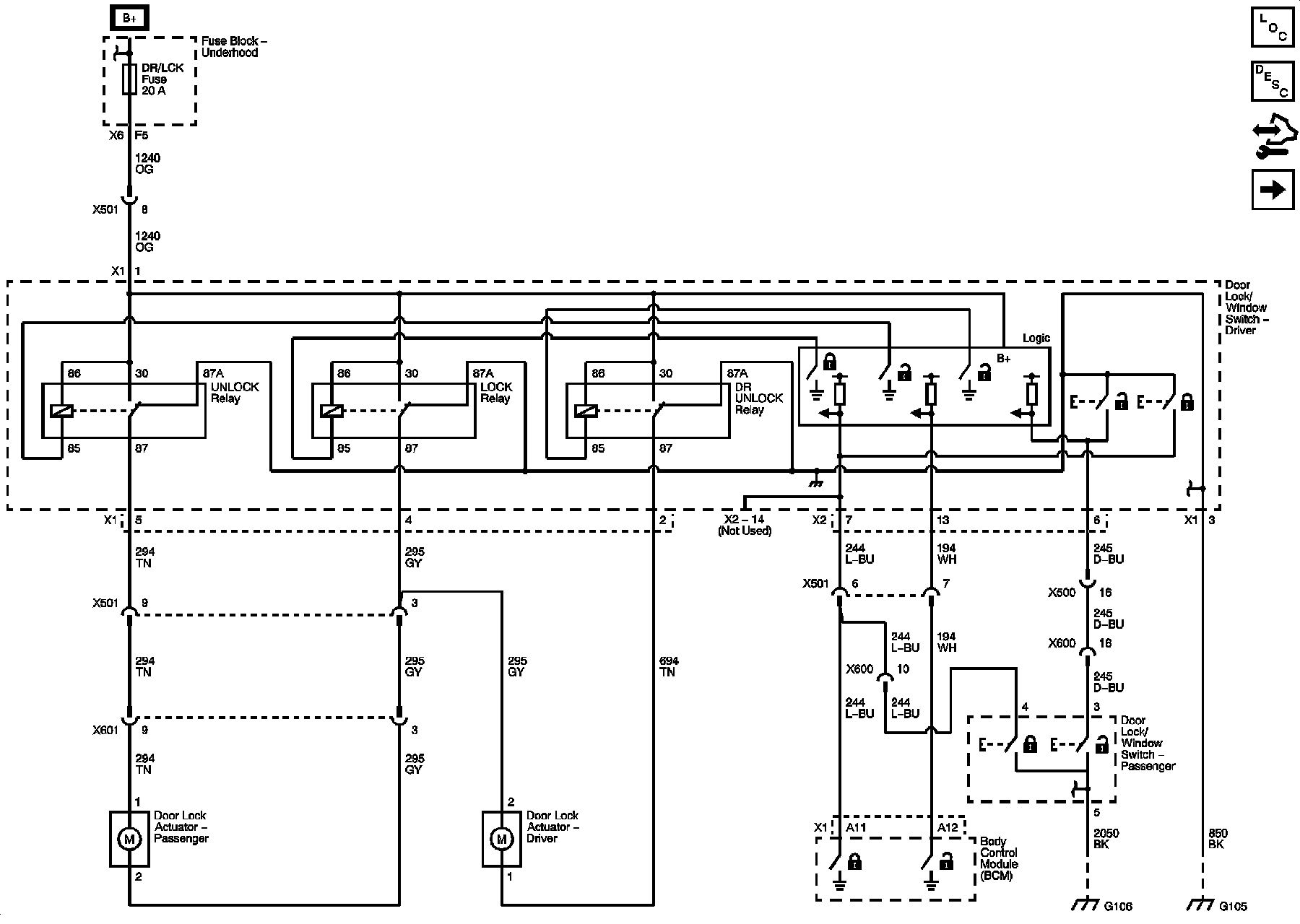

Door Lock (Except Crew Cab)

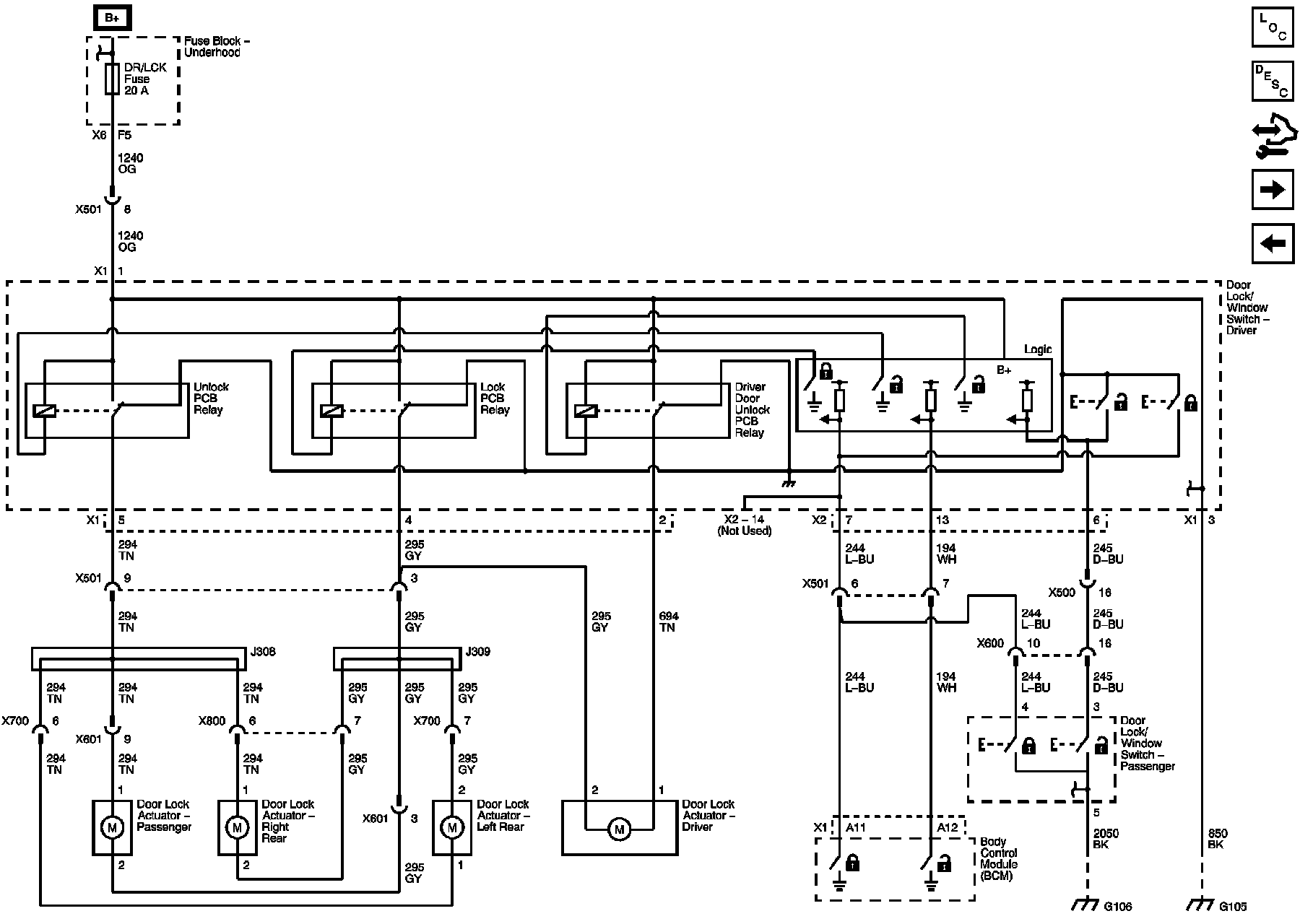

Door Lock (Crew Cab - 1 of 2)





Door Lock (Crew Cab - 2 of 2)





Driver Door Unlock (UE1 without ZQ6)

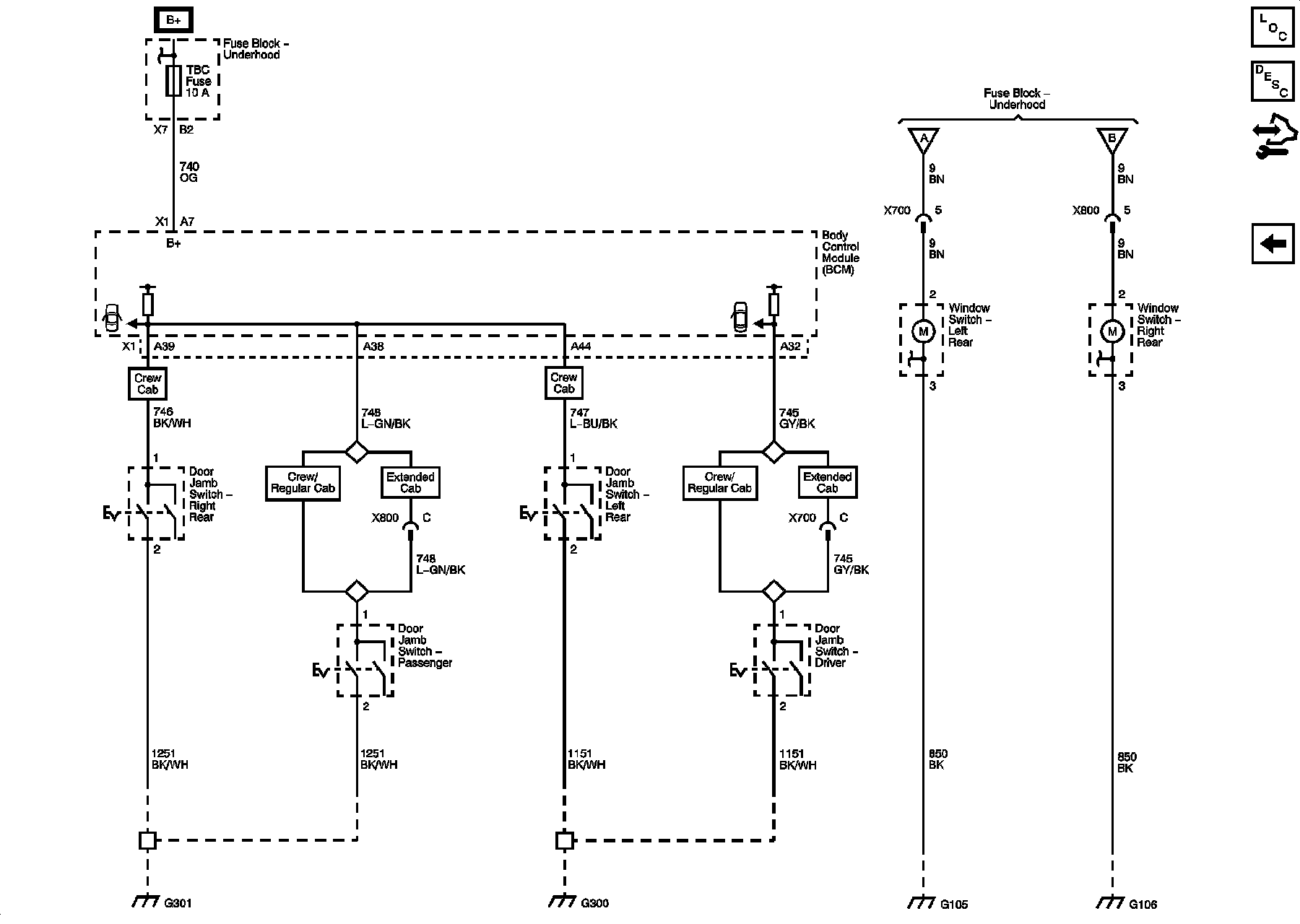

Door Ajar Switches
