Heating and Air Conditioning

HVAC Schematics

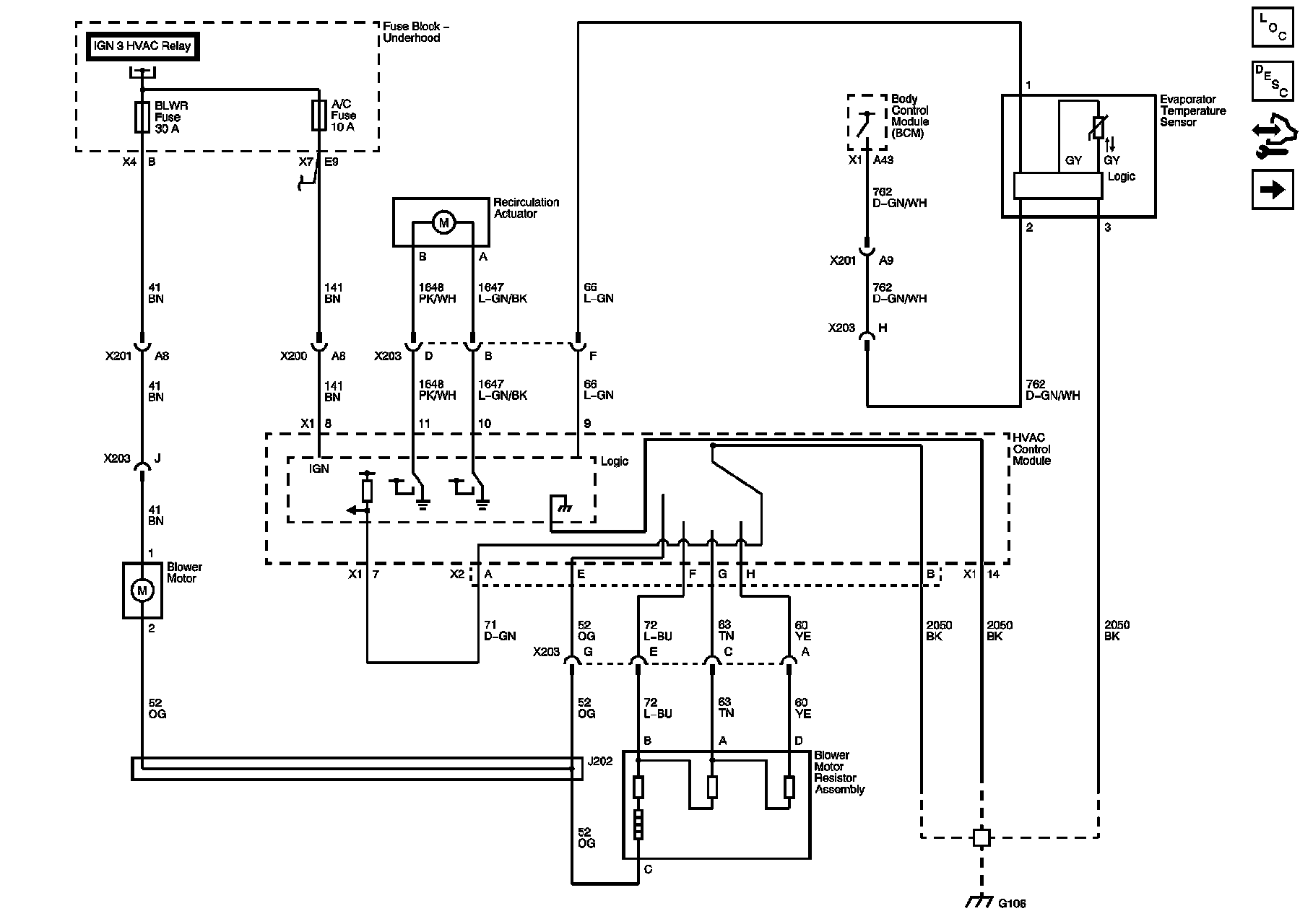

Primary Blower and Air Delivery Controls

Compressor Controls
