Home >> GMC >> 2011 >> Canyon 2WD L4-2.9L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> System Diagram

System Diagram

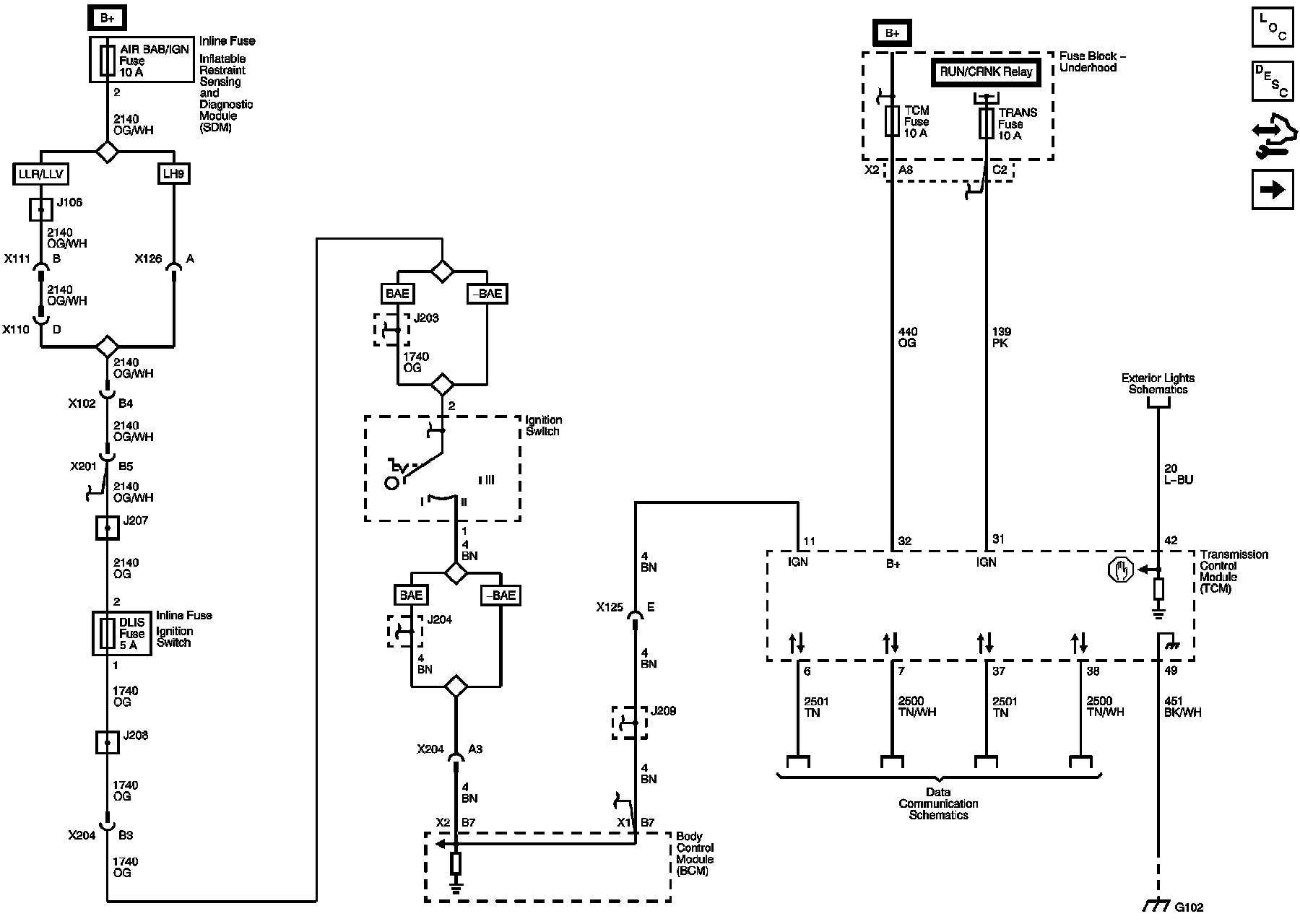

Automatic Transmission Controls Schematics

Module Power, Ground, and Data Communications

Shift Controls

Fluid and Temperature Controls

PNP and VSS Signals
