Antilock Brakes / Traction Control Systems

Antilock Brake System Schematics

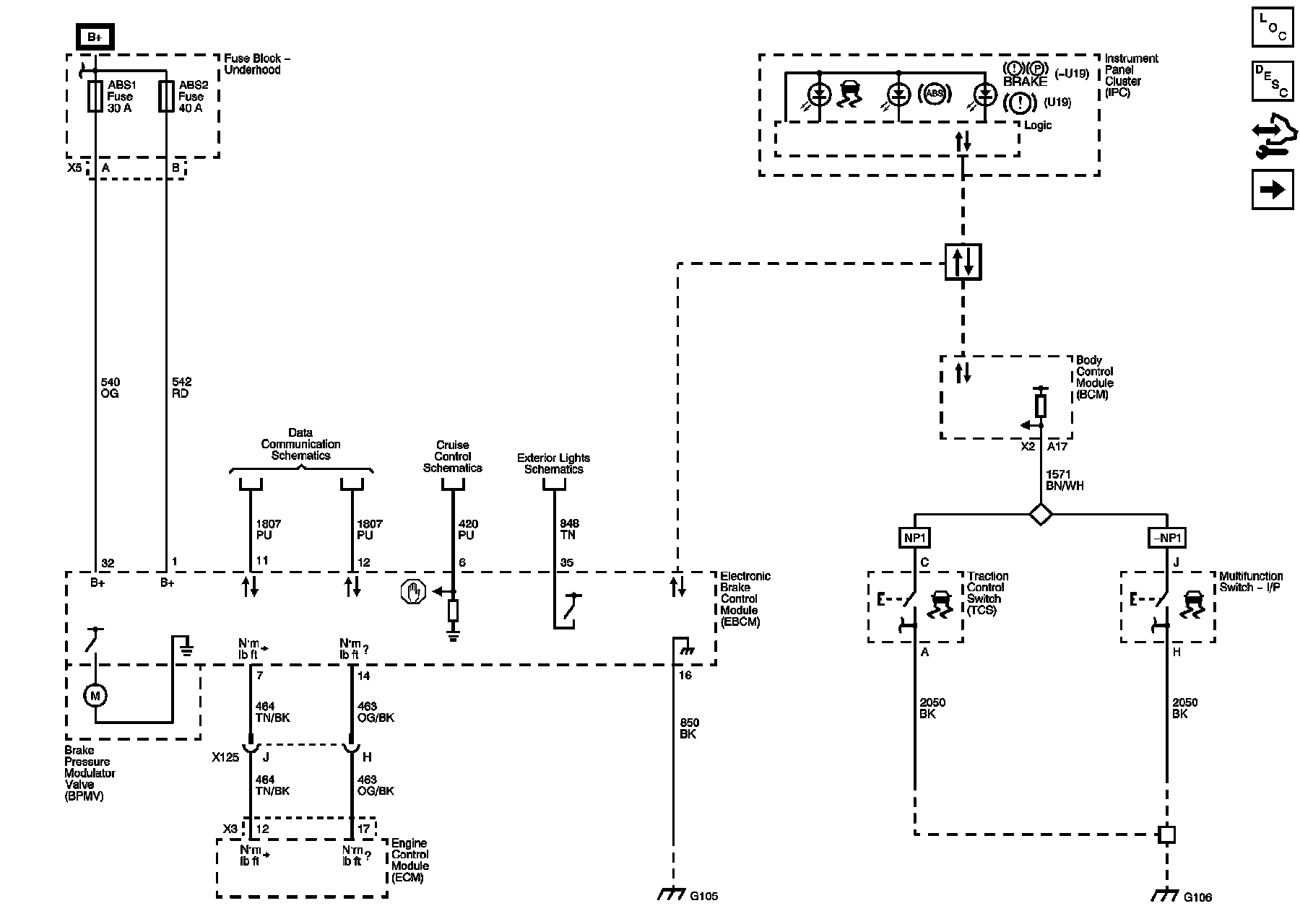

Power, Ground, Serial Data, Traction Control, and Vehicle Inputs

Wheel Speed Sensors

Vehicle Stability
