Air Bag Systems

SIR Schematics

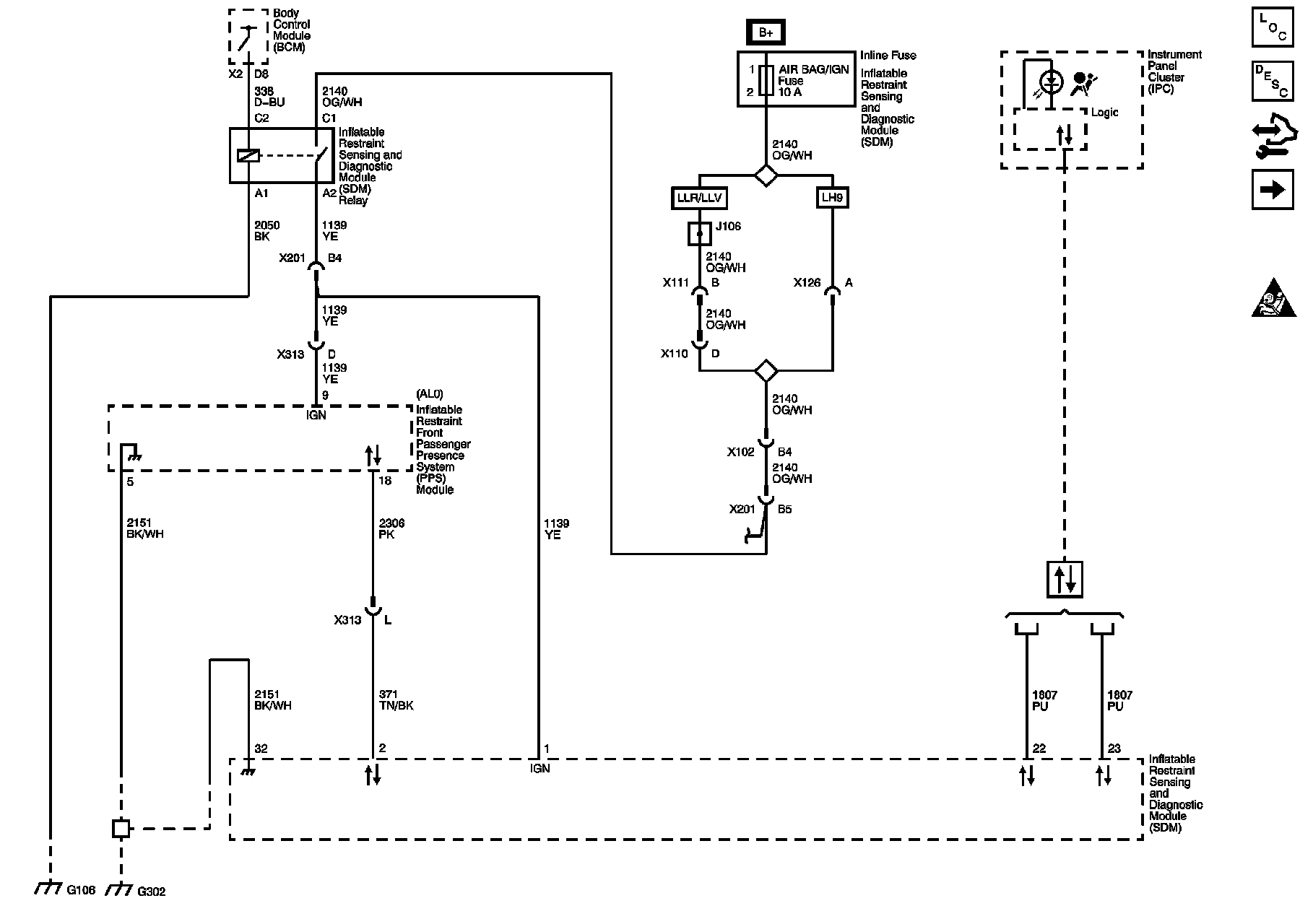

Power, Ground, Serial Data

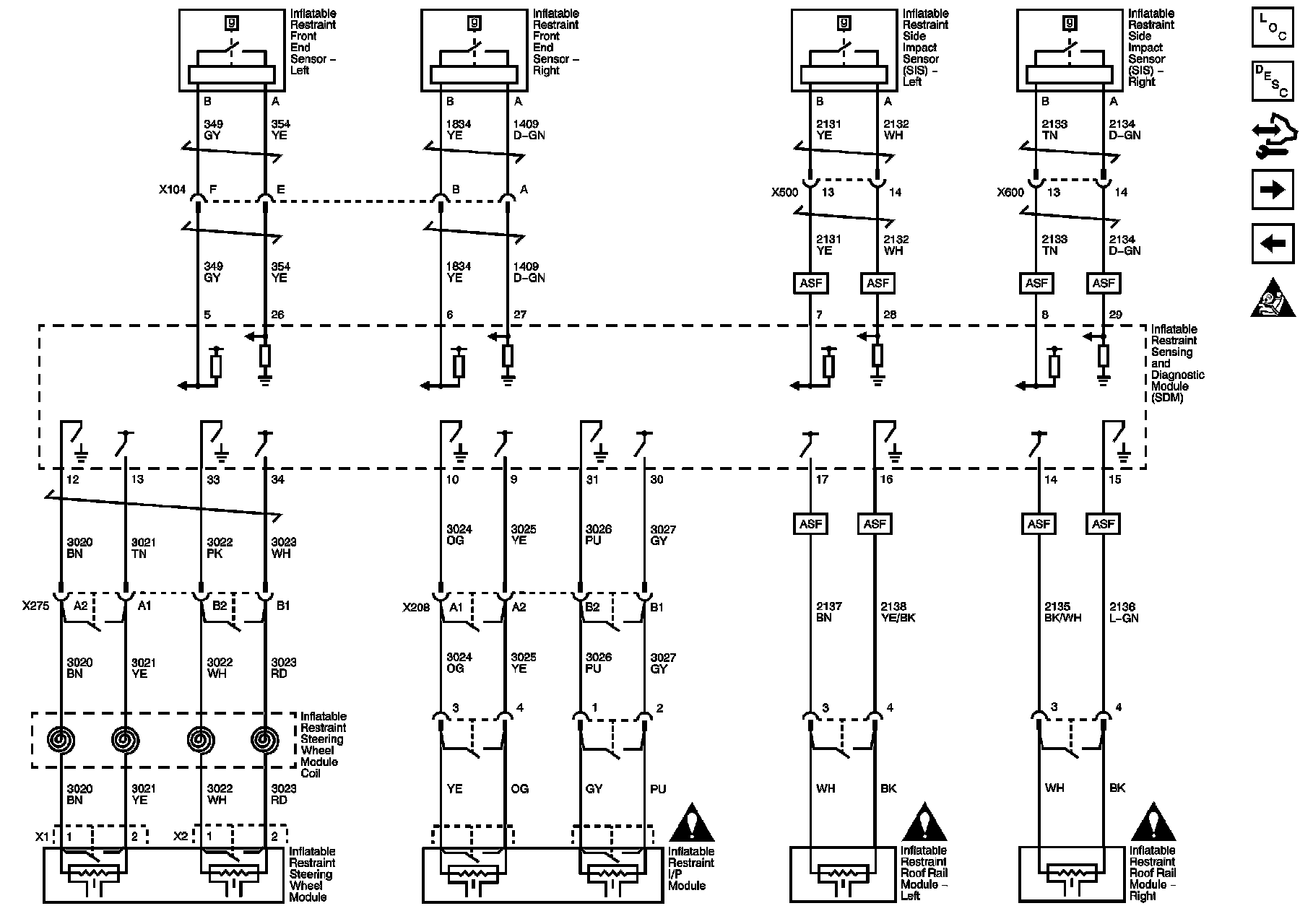

Impact Sensors and Modules

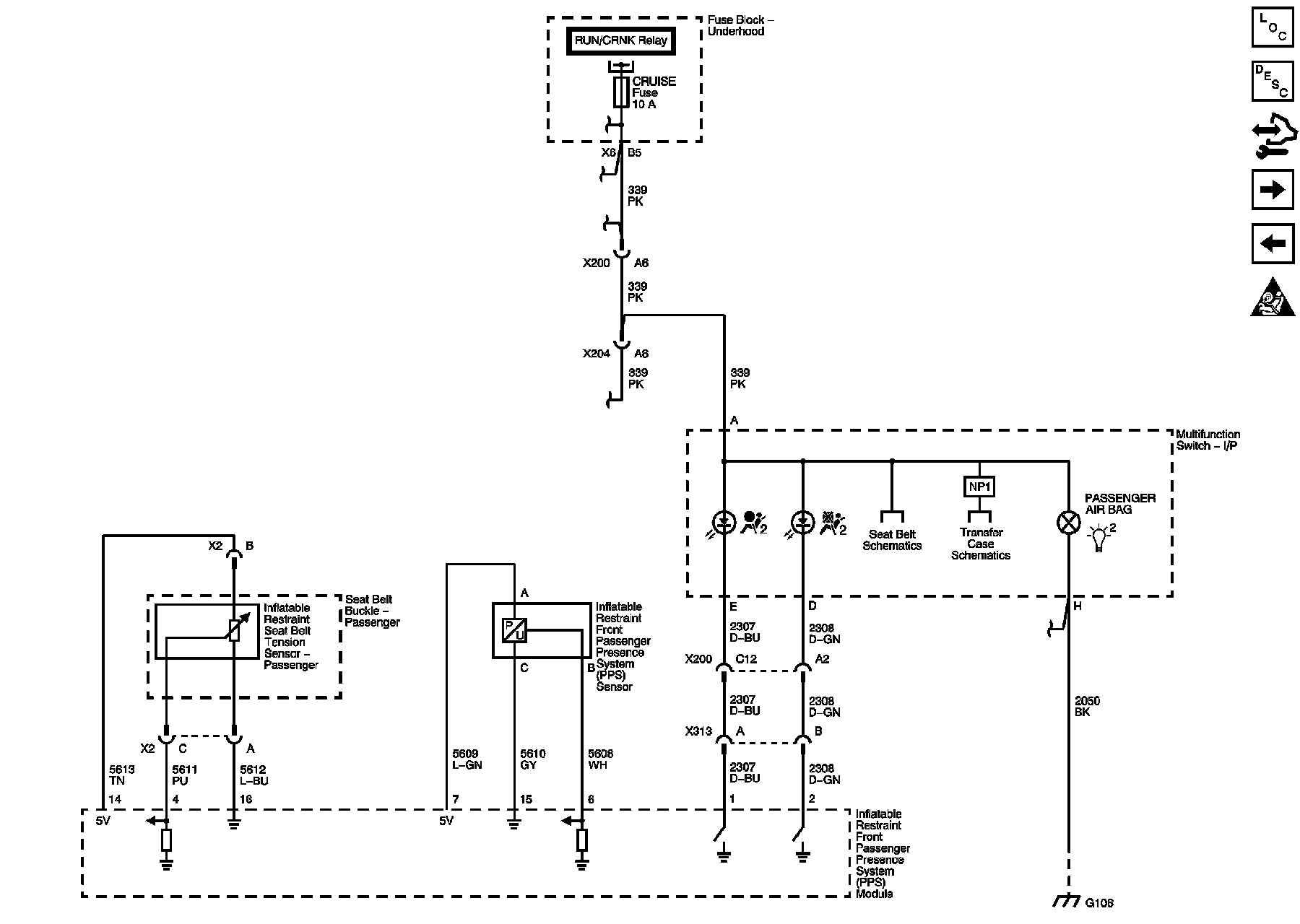

Passenger Presence

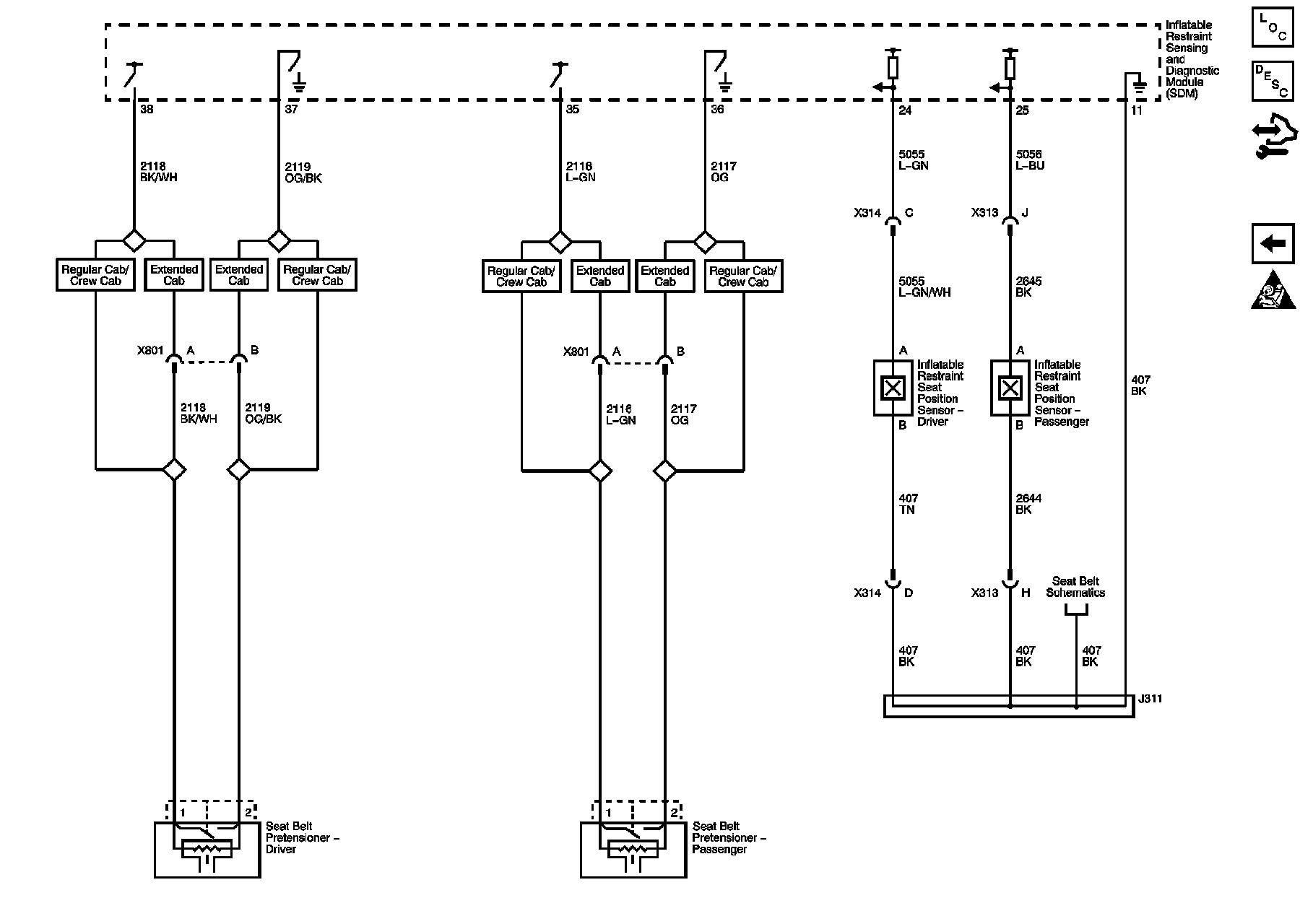

Seat Position Sensors and Seat Belt Pretensioners
