Yaw and Lateral Accelerometer Sensor (without NP1)

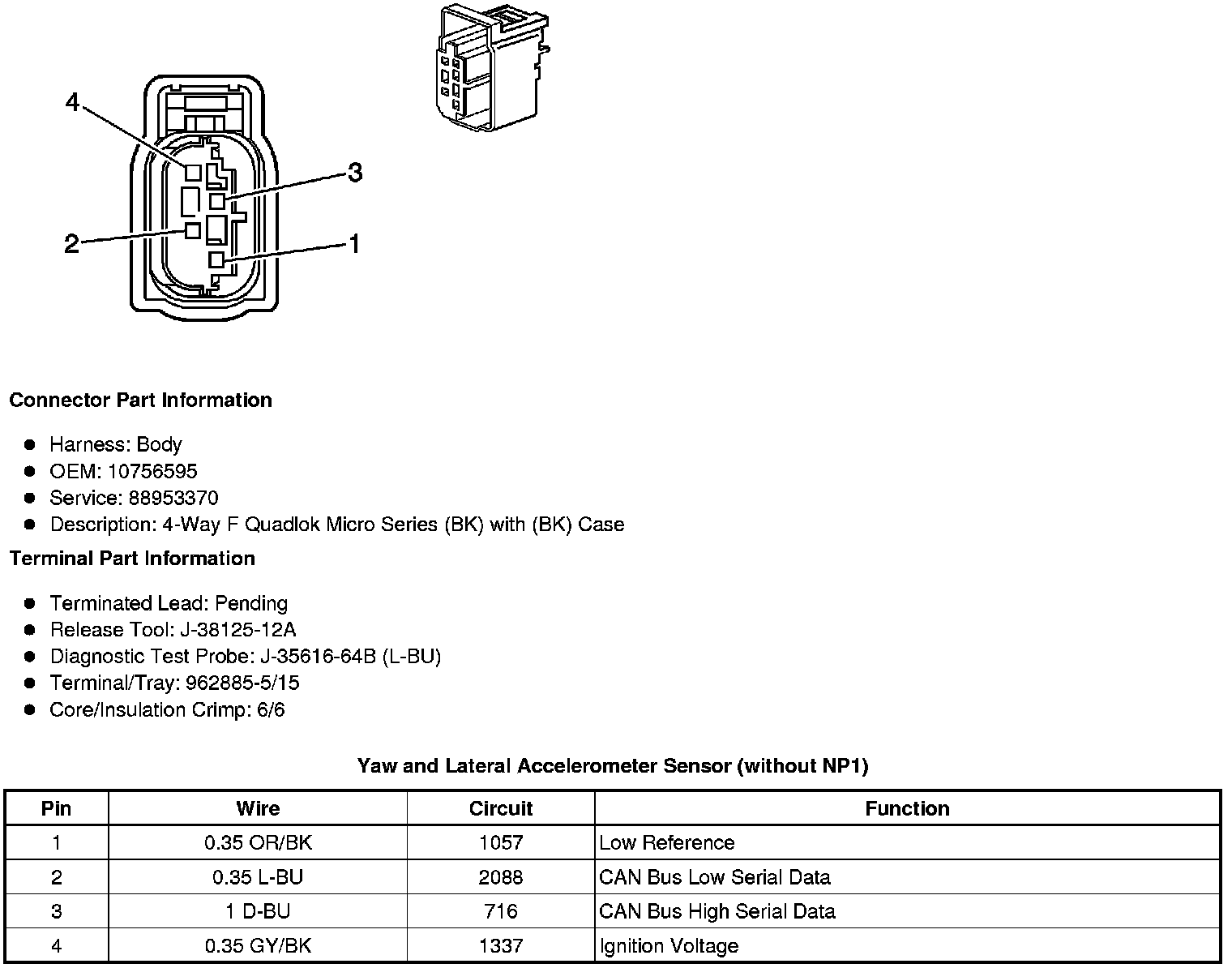

Component Connector End Views

Yaw and Lateral Accelerometer Sensor (without NP1)
